Sierra M124 SAS/SATA Protocol Analyzer User Manual 149
Analysis Teledyne LeCroy
User Defined

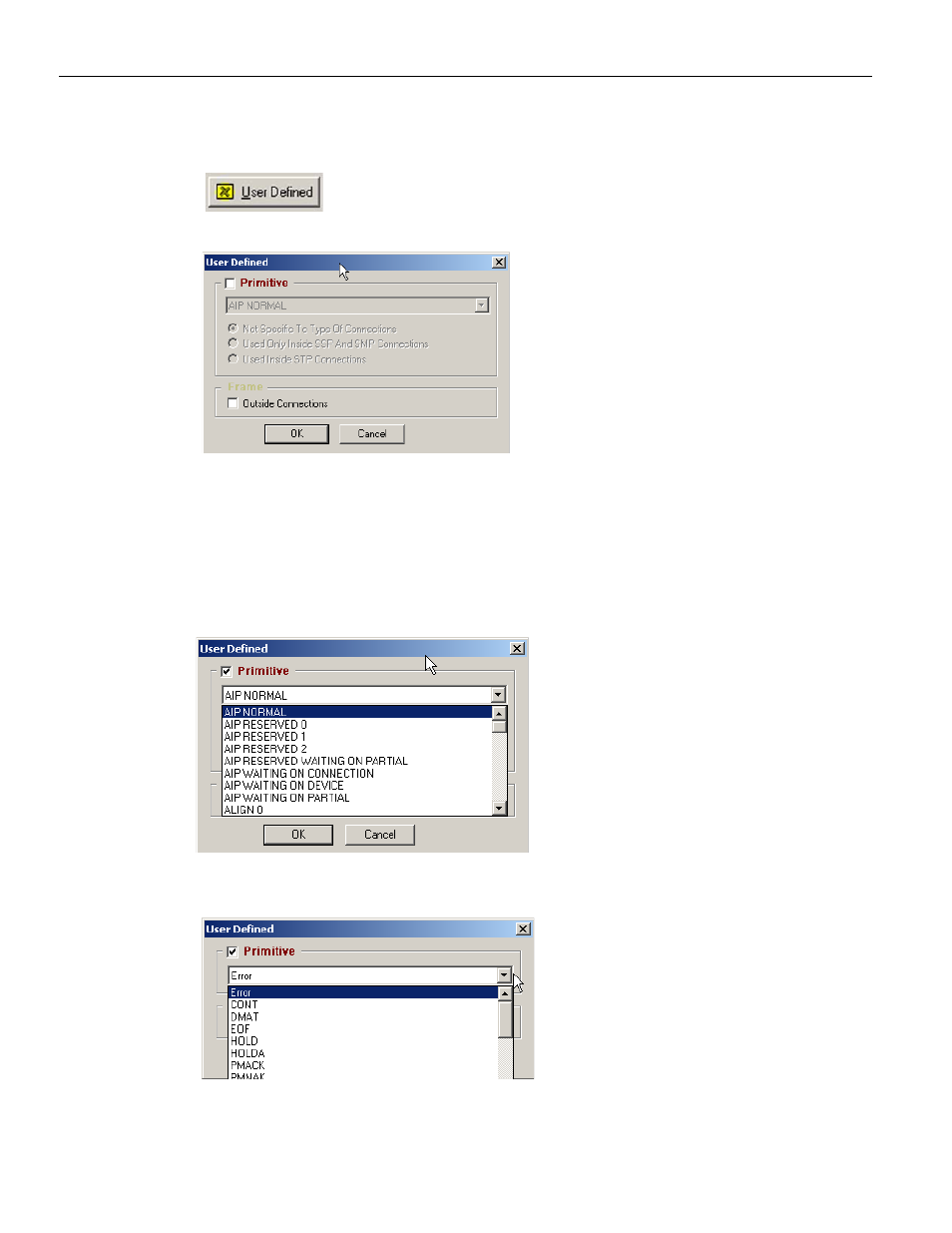

You can define additional items for inclusion in the Histogram by clicking the
button to open the User Defined dialog.
Figure 3.60: SAS: Histogram User Defined Dialog
You can include Primitive and/or Outside Connections frames.
Primitives
To include Primitives, check the Primitive check box, click the down arrow on the
Primitive list box, and choose a Primitive.
Figure 3.61: SAS: Choosing a Primitive
.
Figure 3.62: SATA: Choosing a Primitive
Check a Connection Type option radio button, if available, and click OK.
