Sierra M124 SAS/SATA Protocol Analyzer User Manual 181
Packet View Toolbar Teledyne LeCroy
3.6.9 Show/Hide Ports
You can Show/Hide a Single Port or you can Show/Hide Multiple Ports. To do so click on
the Ch Down Arrow.
Show/Hide Single Port
If Show/Hide Single Port is selected, you can click on one port button at a time to show/
hide the capture for that port. Show/Hide Single Port is time consuming as it shows or
hides one port at a time.
Show/Hide Multiple Ports
If Show/Hide Multiple Ports is selected, you can click on multiple ports to show or hide
them. This mode is much faster. Click on multiple ports to show or hide them.

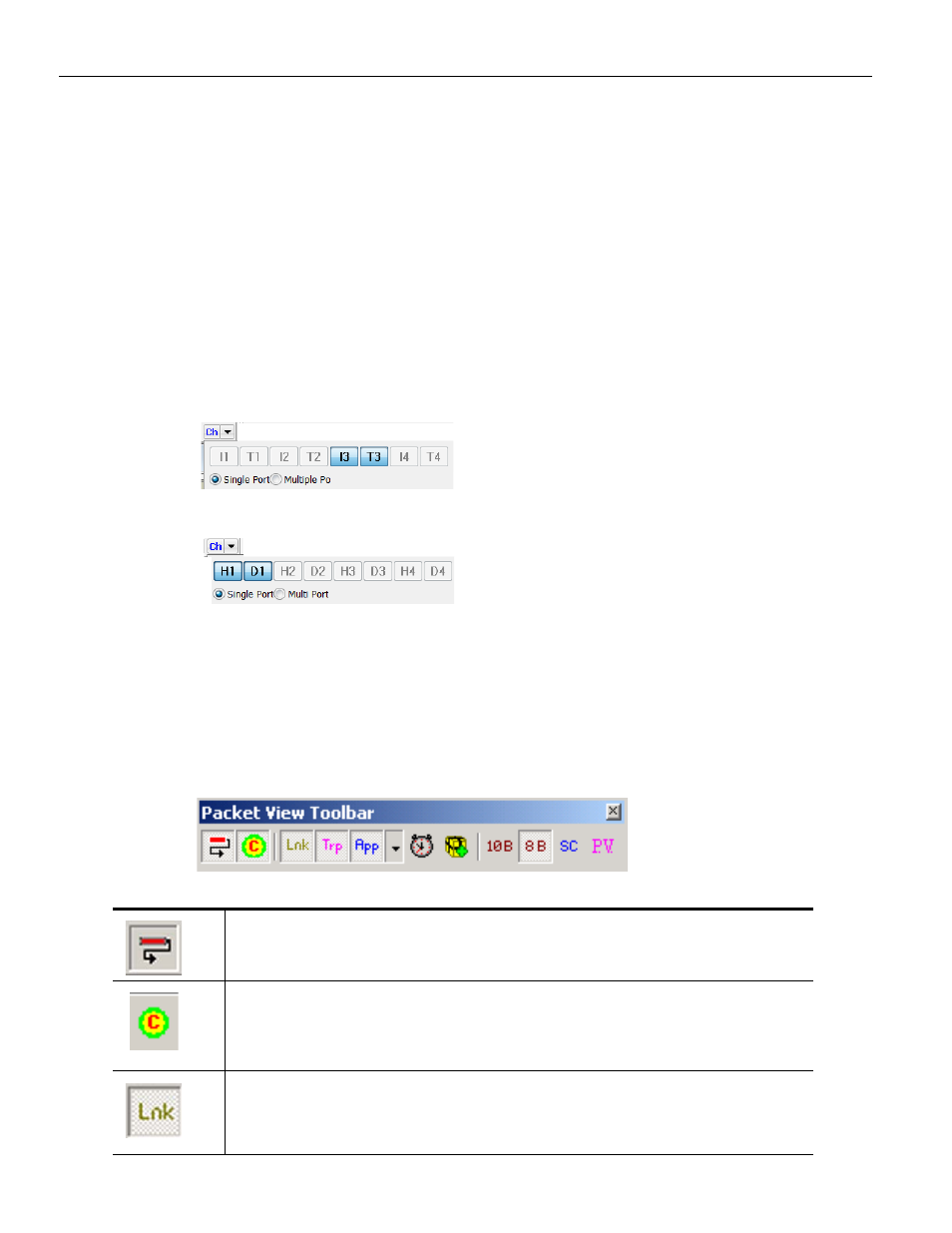

Figure 3.98: SAS: Show/Hide Ports Toolbar
.
Figure 3.99: SATA: Show/Hide Ports Toolbar
You can also show or hide a port by right‐clicking a Port ID in Text View or Column View
and choosing Show or Hide (see
Figure 3.103 on page 185 ).
3.7 Packet View Toolbar
The Packet View toolbar allows wrapping, zooming, and configuration.
The Wrap Packets button on the Viewer Toolbar wraps the packet data in the
display to eliminate the need for horizontal scrolling.
Go to CATC Navigation View. Click this button to change the trace display to a
CATC Trace™. 
You can change the colors, fonts, and so on, in the Trace Viewer Configuration
(see
“Trace Viewer Configuration” on page 193 ).
The Show/Hide Link Packet button displays/hides the Link layer (SAS only).
