Training Sequence
Double‐click Training Sequence in the Patterns window of the Trigger dialog to open the
Training Sequence dialog.

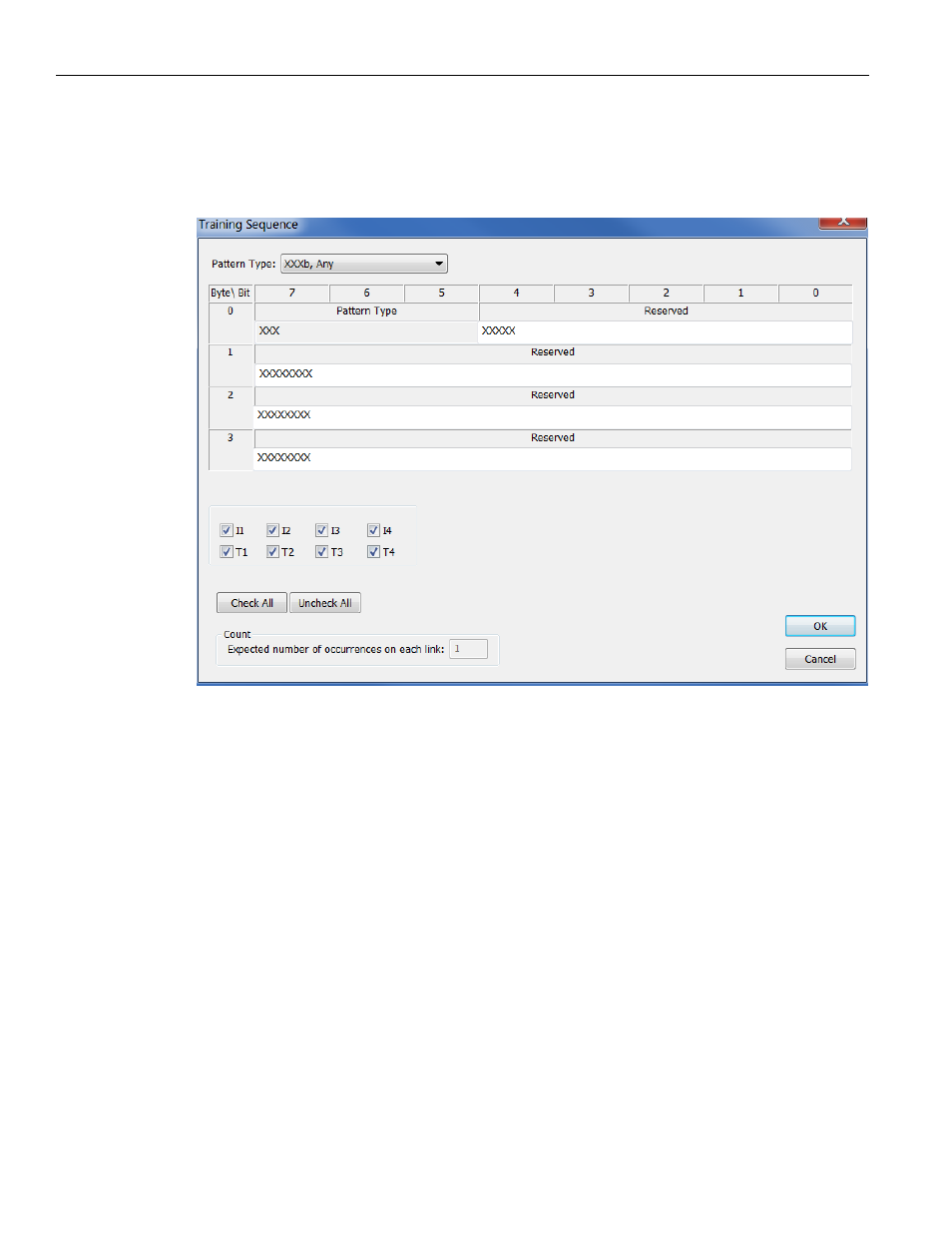

Figure 2.51: SAS:
Training Sequence
Dialog
SAS vs. SATA: Not available in SATA.
Define the training sequence for triggering and click OK.
