Teledyne LeCroy SAS/SATA Software Menus and Toolbars
112 Sierra M124 SAS/SATA Protocol Analyzer User Manual

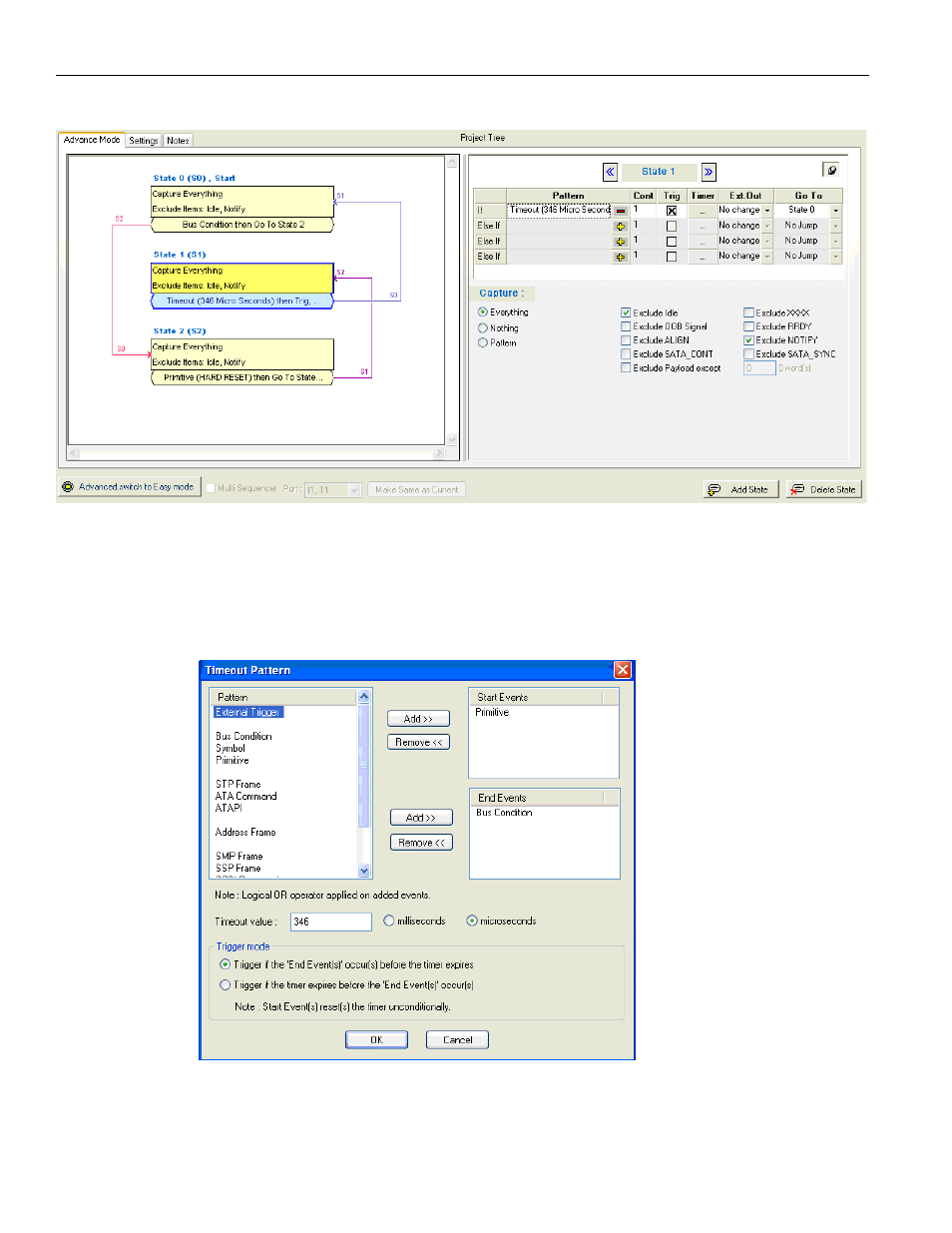

Figure 2.84: State Machine with Timeout Pattern to Replace Timer
To overcome this limitation, use a Timeout Pattern instead of Timer. Figure 2.84 shows
the state machine using Timeout instead of Timer.
Figure 2.85 on page 112 shows the Timeout settings.
Figure 2.85: Timeout Settings
