214 Sierra M124 SAS/SATA Protocol Analyzer User Manual

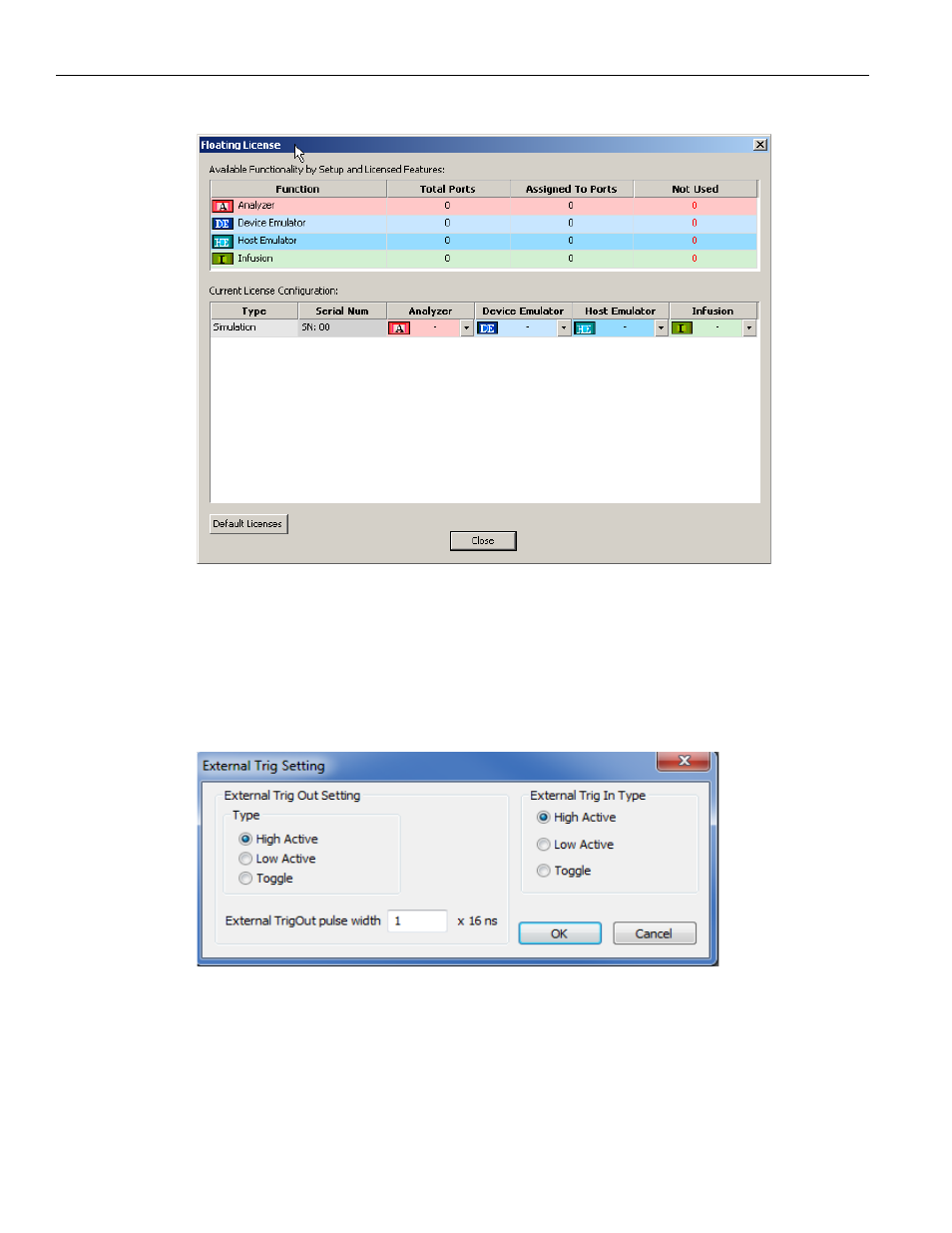

Figure 3.140: Floating Licence Dialog
3.18 External Trig Setting
To display the External Trig Setting dialog, select Setup > External Trig Setting. The
External Trig Setting dialog displays the External Trig Out Setting and External Trig In
Setting as High Active, Low Active, or Toggle.
Figure 3.141: External Trigger Setting Dialog
To display the External Trig Setting dialog, select Setup > External Trig Setting.
External Trig Out Setting
The Analyzer can send a Low or High external signal anytime a trigger occurs. Select the
External Trig Out Setting: High Active, Low Active, or Toggle from High to Low or Low to
High once (3.3 V output).
Enter the External TrigOut pulse width.
