Sierra M124 SAS/SATA Protocol Analyzer User Manual 183
Packet View Toolbar Teledyne LeCroy
3.7.1 CATC Navigation View
To change the trace display to a CATC Trace™ (see Figure 3.100 on page 183 ), click the
CATC Navigation button. You can change the colors, fonts, and so on, in the Trace
Viewer Configuration (see “Trace Viewer Configuration” on page 193 ).

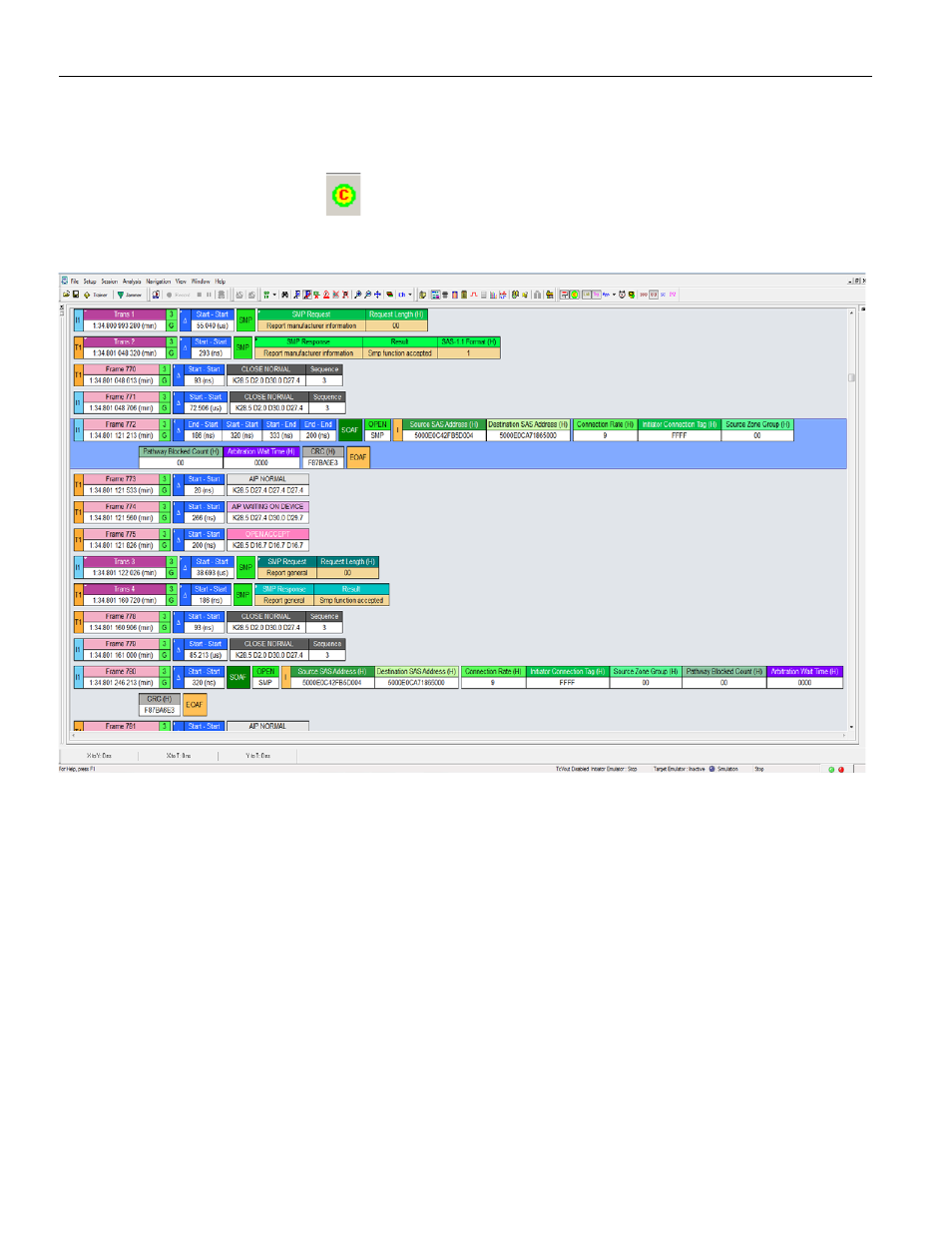

Figure 3.100: CATC Navigation View
3.7.2 Spec View
Spec View shows packet header information.
To obtain the Spec View from the CATC View, left‐click to display a popup menu, then
select the View Fields option (see
Figure 3.101 on page 184 ).
To obtain the Spec View from the Catalyst View, right‐click to display a popup menu, then
select the View Fields option.
