Sierra M124 SAS/SATA Protocol Analyzer User Manual 137
Analysis Teledyne LeCroy
Lanes Report (SAS)
To display the Lanes Report, click the Lanes tab. The Lanes Report displays the report data
in columns with the following information:
 Port
 Open Accept: All, Custom, or a number
 Open Reject: All, Custom, or a number
 AIP Waiting on Con.
 Break
 SCSI Command: All, Custom, or a number
 ATA Command: All, Custom, or a number
 SMP Command: All, Custom, or a number
 Out Standing Command: All, Custom, or a number
 Transfer Bytes: All, Custom, or a number
 Link Utilization (time)
 Link Utilization%

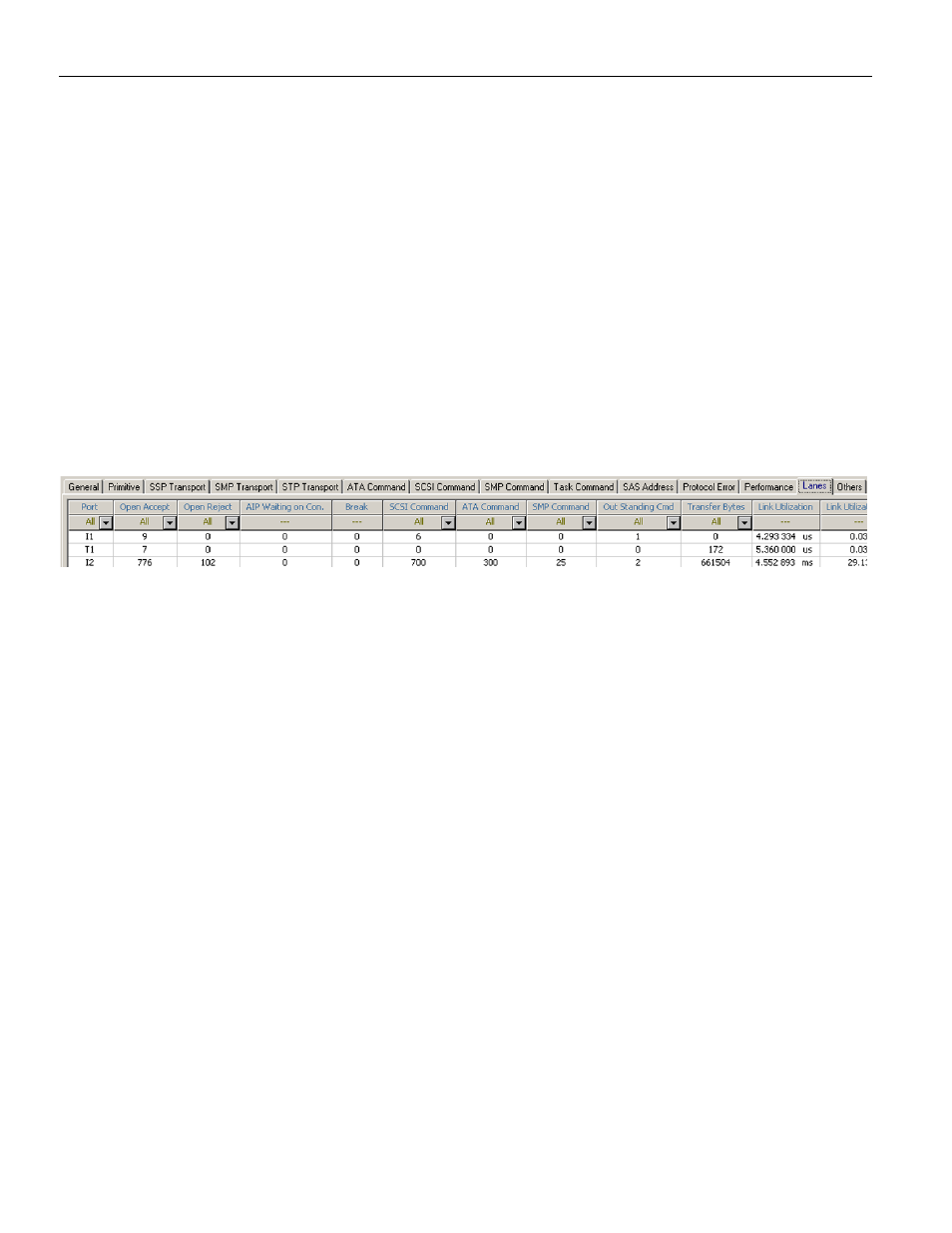

Figure 3.40: SAS Lanes Report
Read/Write Command Report (SAS)
To display the Read/Write Command Report (see Figure 3.41 on page 138 ), click the
Read/Write Command tab. You can enable or disable creation of this page by selecting
Create statistical report read/write page in the Trace Viewer tab (see
“Trace Viewer Tab”
on page 207 ). The Read/Write Command report displays the report data in columns with
the following information:
 Source SAS Address
 Destination SAS Address
 Protocol Type
 OpCode/Command
 Tag
 LBA
 Sector Count
 Xfer Length
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Good
 Completion Time
 Performance
 Standard Deviation
 Count: All, Custom, or a number
