Teledyne LeCroy SAS/SATA Software Menus and Toolbars
92 Sierra M124 SAS/SATA Protocol Analyzer User Manual
FIS (SATA only)
Double‐click Frame Information Structure (FIS) to open the FIS Type selection dialog.

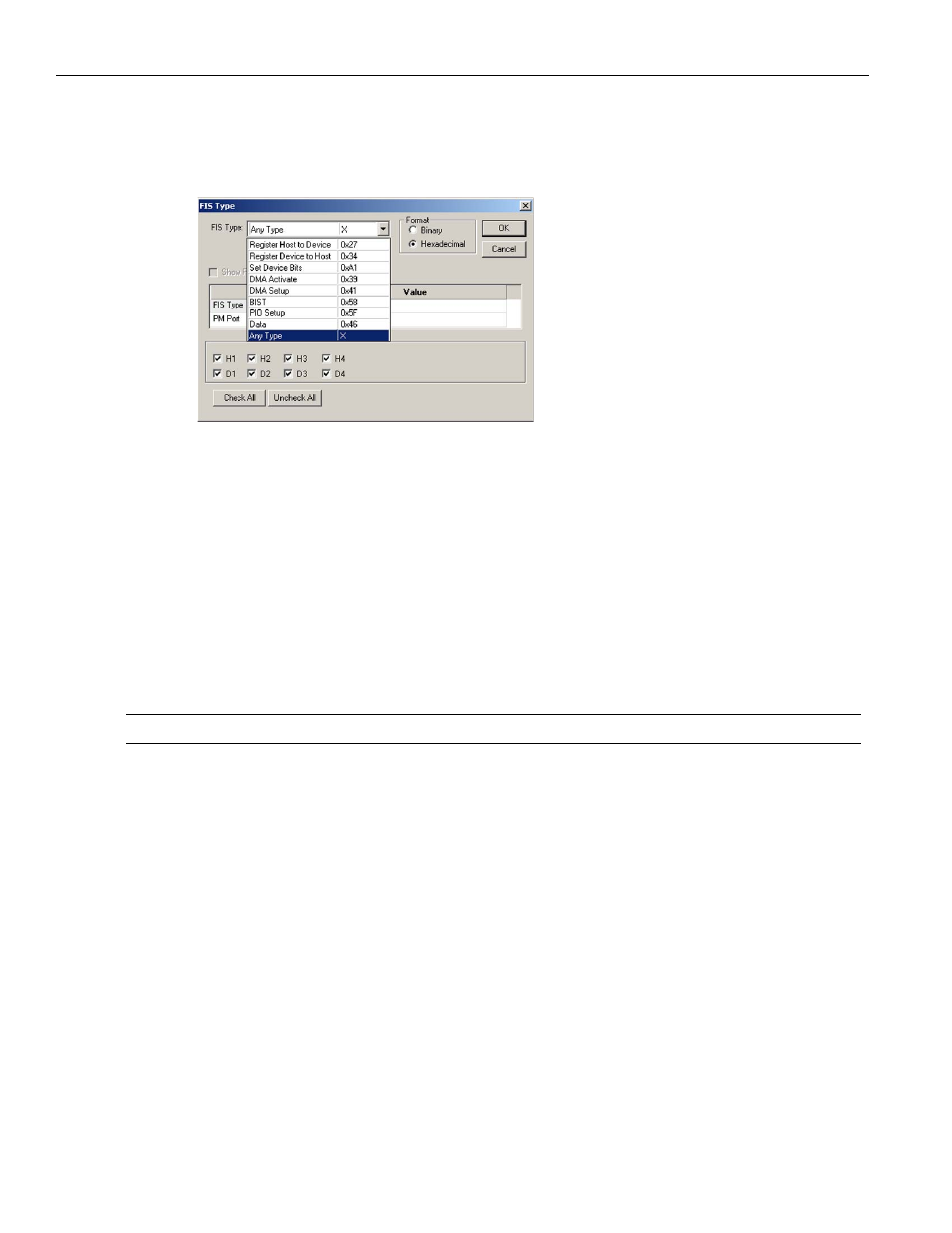

Figure 2.61: SATA: FIS Type Dialog
SAS vs. SATA: Not available in SAS.
Click the down arrow next to the Type drop‐down list box, choose a FIS type on which to
trigger, and click OK. Repeat for additional types.
Available FIS Types
Note: You cannot trigger on a Vendor FIS.
FIS Pattern (SATA only)
Double‐click FIS Pattern to open the FIS Pattern selection dialog (see Figure 2.62 on
page 93 ).
 Register Host to Device
 Register Device to Host
 Set Device Bit
 DMA Activate
 Any Type
 DMA Setup
 BIST
 PIO Setup
 Data
