Teledyne LeCroy Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars
34 Sierra M124 SAS/SATA Protocol Analyzer User Manual
1.19.1 File
The File menu options allows you to perform common tasks such as open, close, save,
export, print, send files and exit the application.

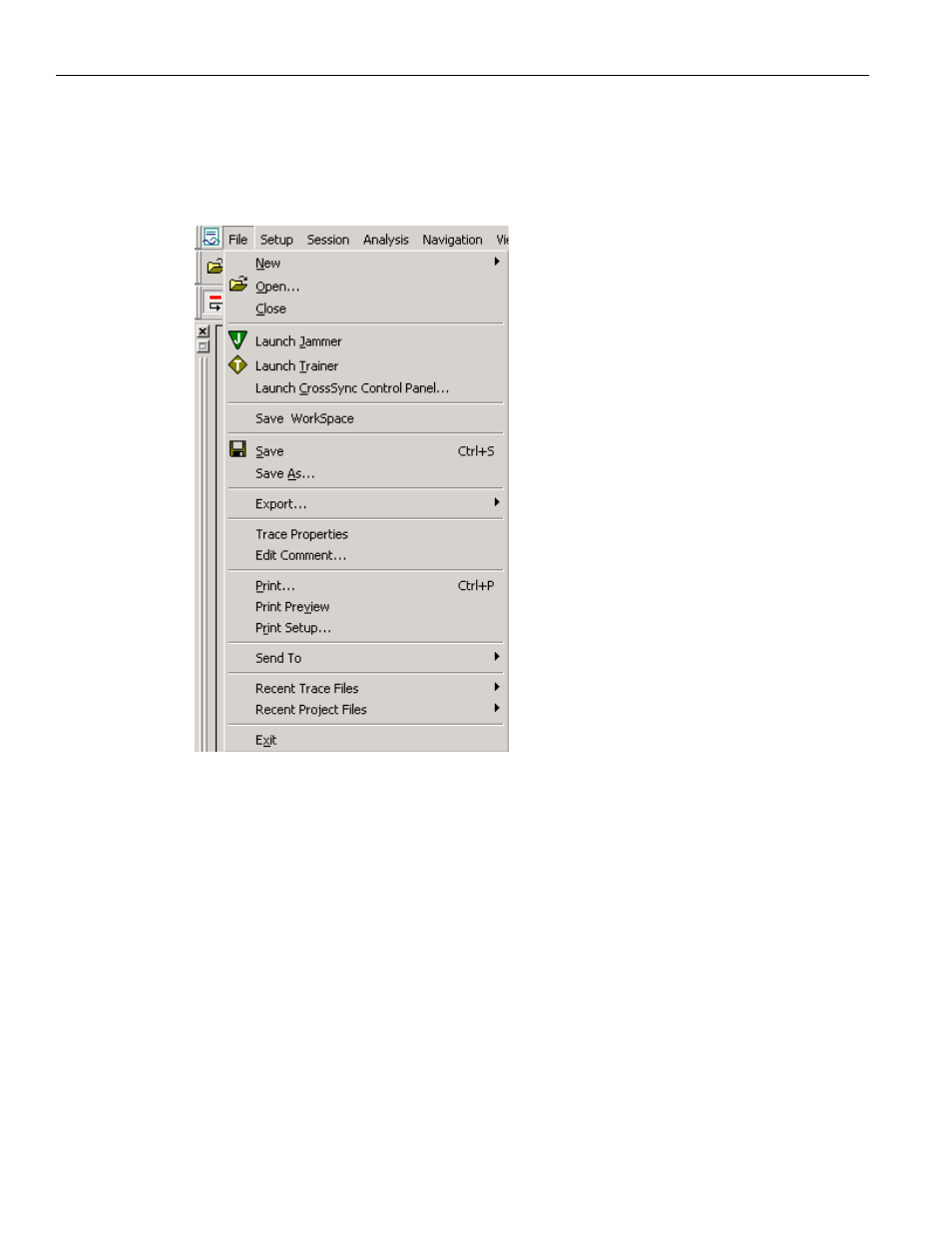

Figure 1.19: File Menu Option
1.19.2 Setup
For special work, you can use the Setup menu (see Figure 1.20 on page 35 ) to perform
the following actions:
 TxRxVout & Pre‐emphasis (see “TxRxVout & Preemphasis” on page 199 )
 User Defined Decoding (see “User‐Defined Decoding” on page 216 )
 External Trig Setting (see “Floating Licence Dialog” on page 214 )
 Update Device (see “Update Device” on page 215 )
 All Connected Devices (see “Select Device” on page 21 )
 Find DUT finds the Device Under Test (see “Find DUT” on page 219 )
 Power Source Control turns the Device Under Test on and off
 Manage Setup Licences (see “Floating License” on page 213 )
 Preferences (see “Preferences” on page 205 )
 Self Test (see “Self Test” on page 320 )
 Data Block (see “Data Blocks” on page 139 )
 Set Port Alias (see “Set Port Alias” on page 197 )
