Sierra M124 SAS/SATA Protocol Analyzer User Manual 155
Using the Power Expansion Card Teledyne LeCroy
3.4 Using the Power Expansion Card
You can use the Power Expansion Card to power the drives under test. See “Using the
Power Expansion Cards” on page 26 .
3.5 Running Verification Script Engine (VSE)
You can perform custom post‐process analysis of the open trace by running a verification
script over the trace. A verification script instructs the application to send trace and
analysis information to the script. A verification script also contains script code, written
using CATC Script Language (CSL) (see the CSL_RefManual.pdf document in the docs
directory of the installation), used to process trace data and output that data in different
formats.
Note: You may write your own verification scripts to perform custom verification and analysis. For
information on how to write a verification script, see the Verification Script Engine Reference
Manual.
To run a verification script over a trace:
1. Select the main menu item Analysis > VSE or click the Running verification scripts
button on the main tool bar. The Run Verification Scripts dialog opens, from
which you choose and then run one or several verification scripts.

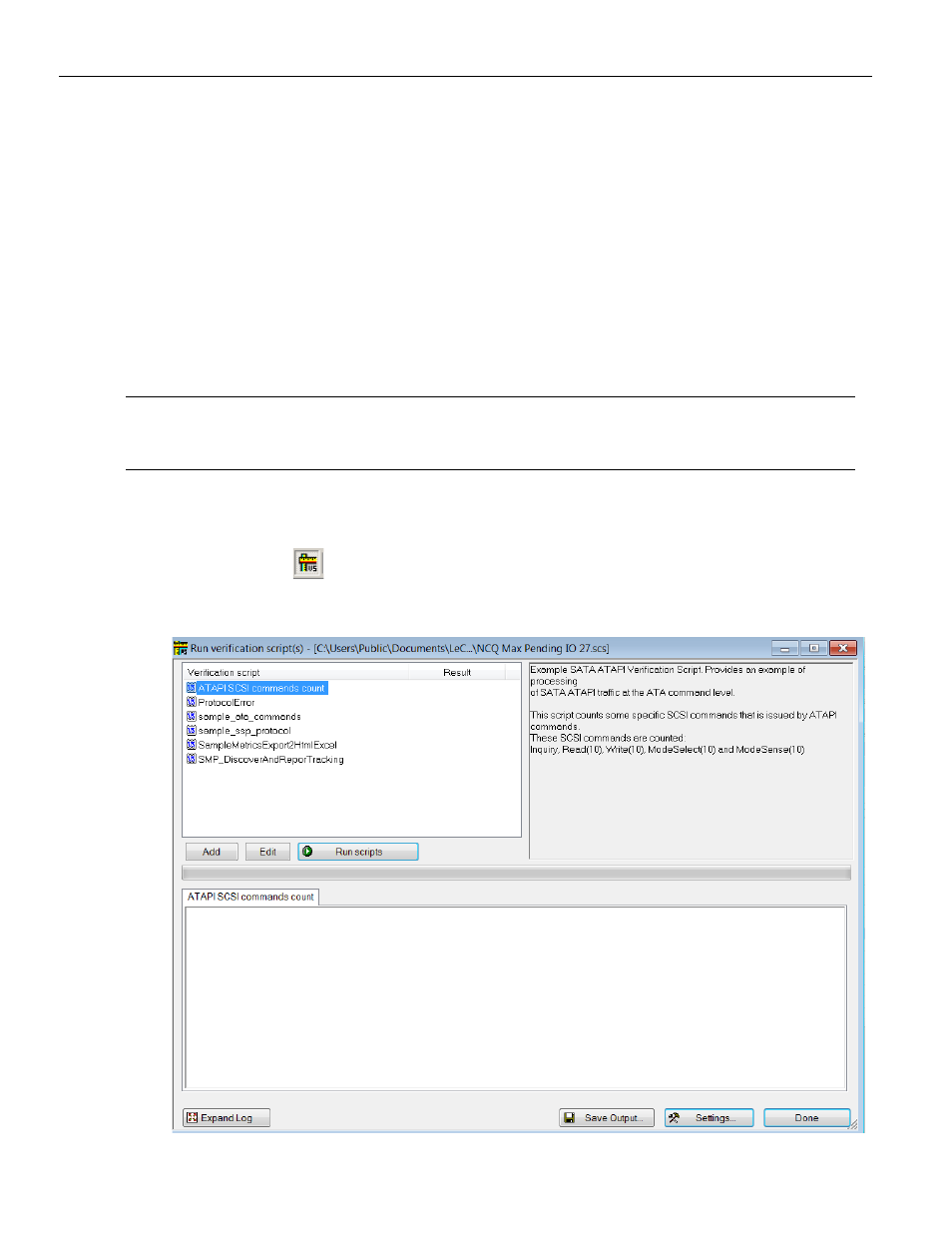

Figure 3.70: Run Verification Scripts Dialog
