Sierra M124 SAS/SATA Protocol Analyzer User Manual 263
Creating a Sequence Teledyne LeCroy
7. In the State 0 area, click the prompt to add an action.

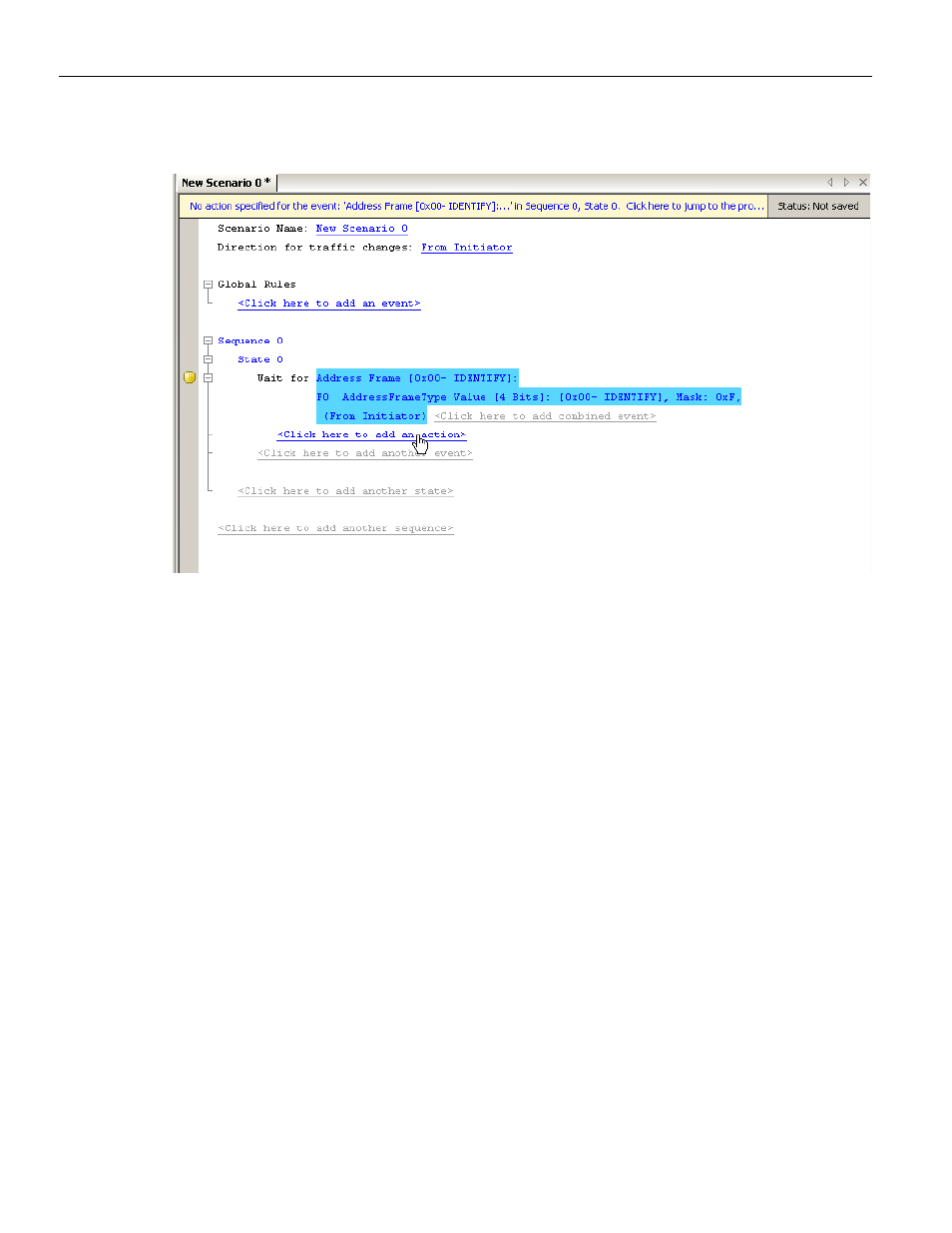

Figure 4.37: Example 7: Adding an Action for the First State
The Action Properties dialog box appears
8. For the action, select Branch to > New State.
9. Click the OK button to close the Action Properties dialog box.
10. This saves the action and automatically creates an area for State 1 in the scenario.
11. In the State 1 area, click the prompt to add an event. The Event Properties dialog
box appears.
12. Choose the Address Frame event. In the Direction column, select From Target (you
want State 1 to trigger on an Identify Address frame received from the target).
13. Click OK to close the Event Properties dialog box.
