Triggering on a Timer
Selecting a timer for a trigger in the Any Trigger Mode limits the time that the analyzer
looks for selected triggering conditions before triggering. The timer activates when the
Project runs. If none of the selected triggering conditions occurs during the timer’s active
time, the Analyzer triggers at the end of the time set for the timer.
You can set a timer independently of any other trigger selection, to cause an
unconditional trigger after a set time.
To set the timer value, double‐click Timer in the Pattern window to open the Timer dialog.

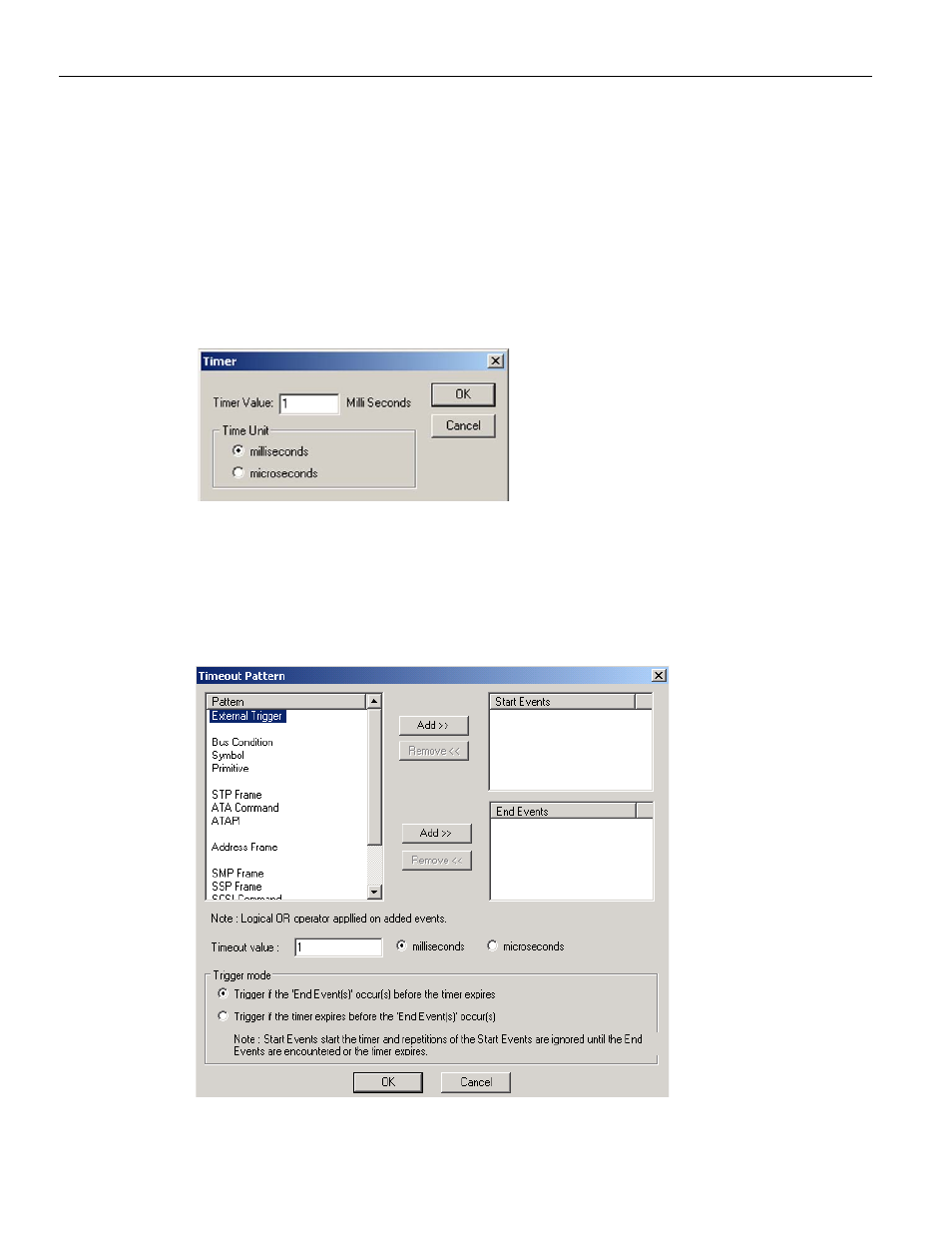

Figure 2.39: Timer Dialog
Check a Time Unit, enter the Timer Value, and click OK.
Timeout
Selecting Timeout for the pattern opens the Timeout Pattern dialog.
Figure 2.40: Timeout Dialog
