Device Sleep (DevSlp)

The Device Sleep status is displayed throughout the trace by right‐clicking and selecting
Device Sleep in Packet View.

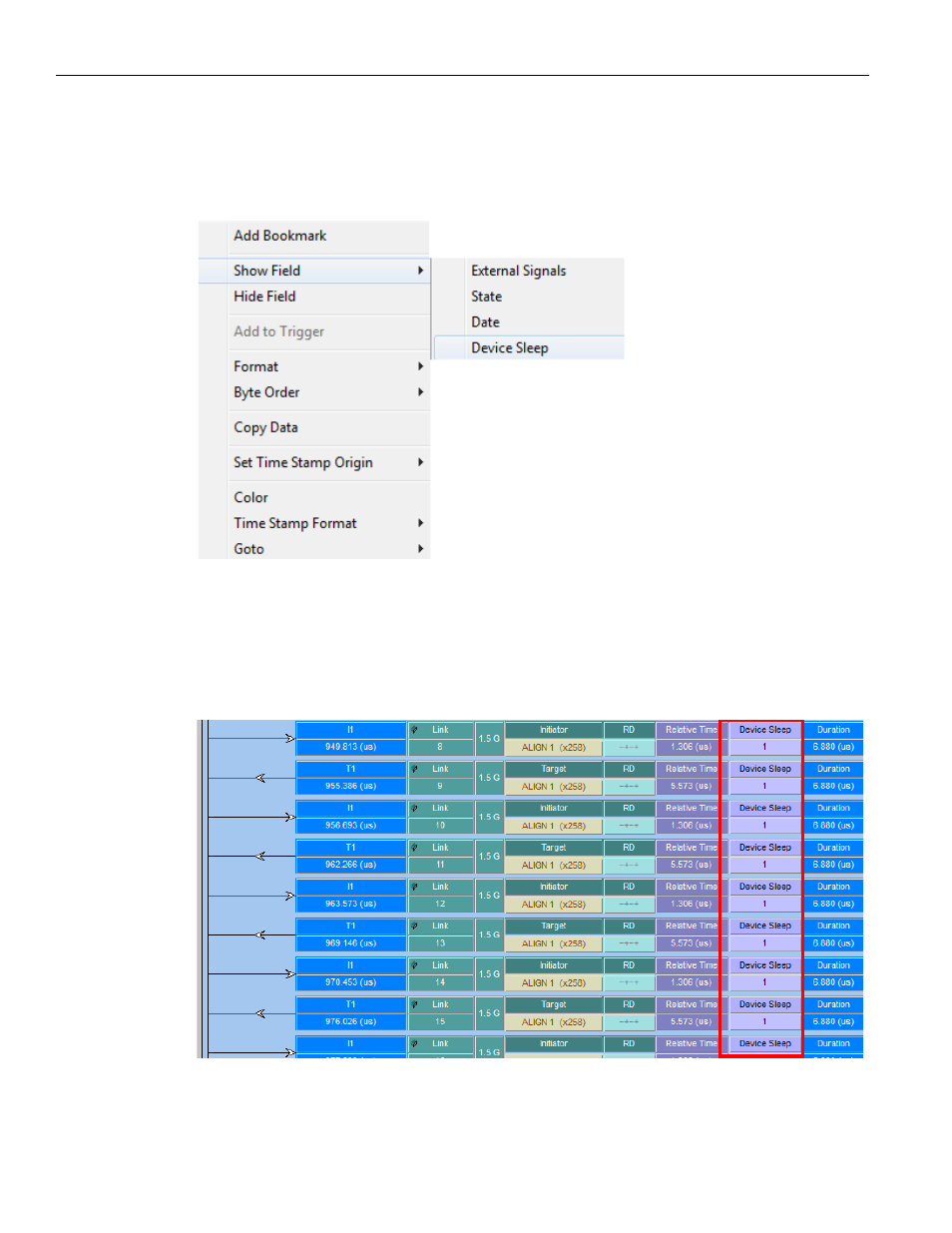

Figure 3.11: Right-click Device Sleep Menu

The trace now displays the Device Sleep fields of all the packets (see

Figure 3.12 on

page 122

). Current measurement accuracy is +/‐ 10mA for 5V and lower signals, and +/‐

100mA for 12V. Voltage measurement accuracy is +/‐ 100mV for 5V and lower and +/‐
150mV for 12V.

Figure 3.12: Device Sleep Fields
