Teledyne LeCroy Expandability
28 Sierra M124 SAS/SATA Protocol Analyzer User Manual

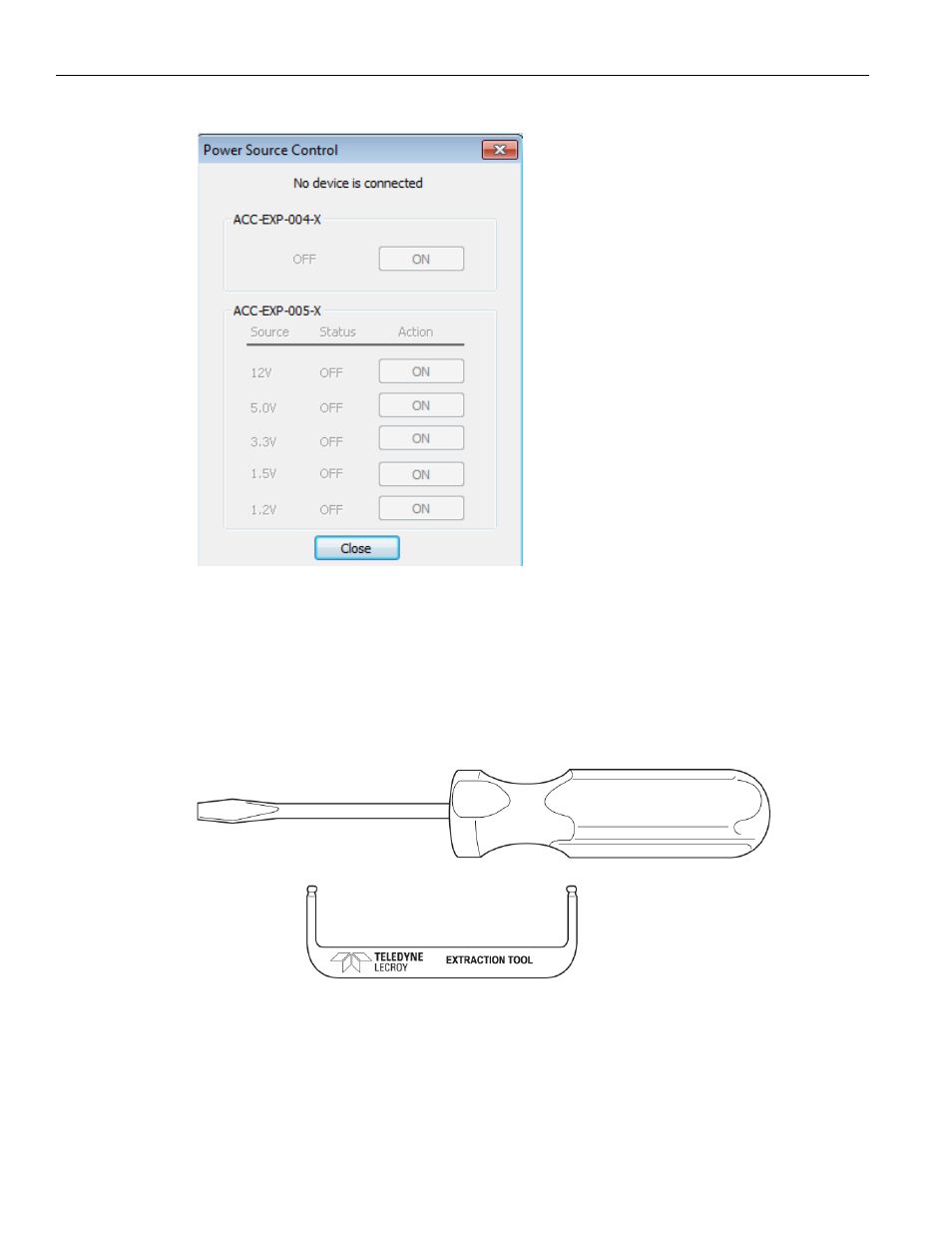

Figure 1.16: Power Source Control Dialog
1.10.4 Removing Expansion Cards
You can remove expansion cards using two tools:
 Standard (flat blade) 3/16” screwdriver
 Teledyne LeCroy Extraction Tool (part number 230‐0160‐00)
To remove an expansion card, follow these steps:
1. Unplug the system from AC power and turn the system so the expansion port is
facing you. Note the two retaining screws and the holes for the extraction tool that
are located on the panel of the expansion card.
