Sierra M124 SAS/SATA Protocol Analyzer User Manual 25
Expandability Teledyne LeCroy
Refresh Device List
Click Refresh Device List to refresh the device list.
To connect to a device, select a device which is Ready to Connect and click the Connect
button on the right. The Connection Properties dialog is displayed (see the following
screen capture).

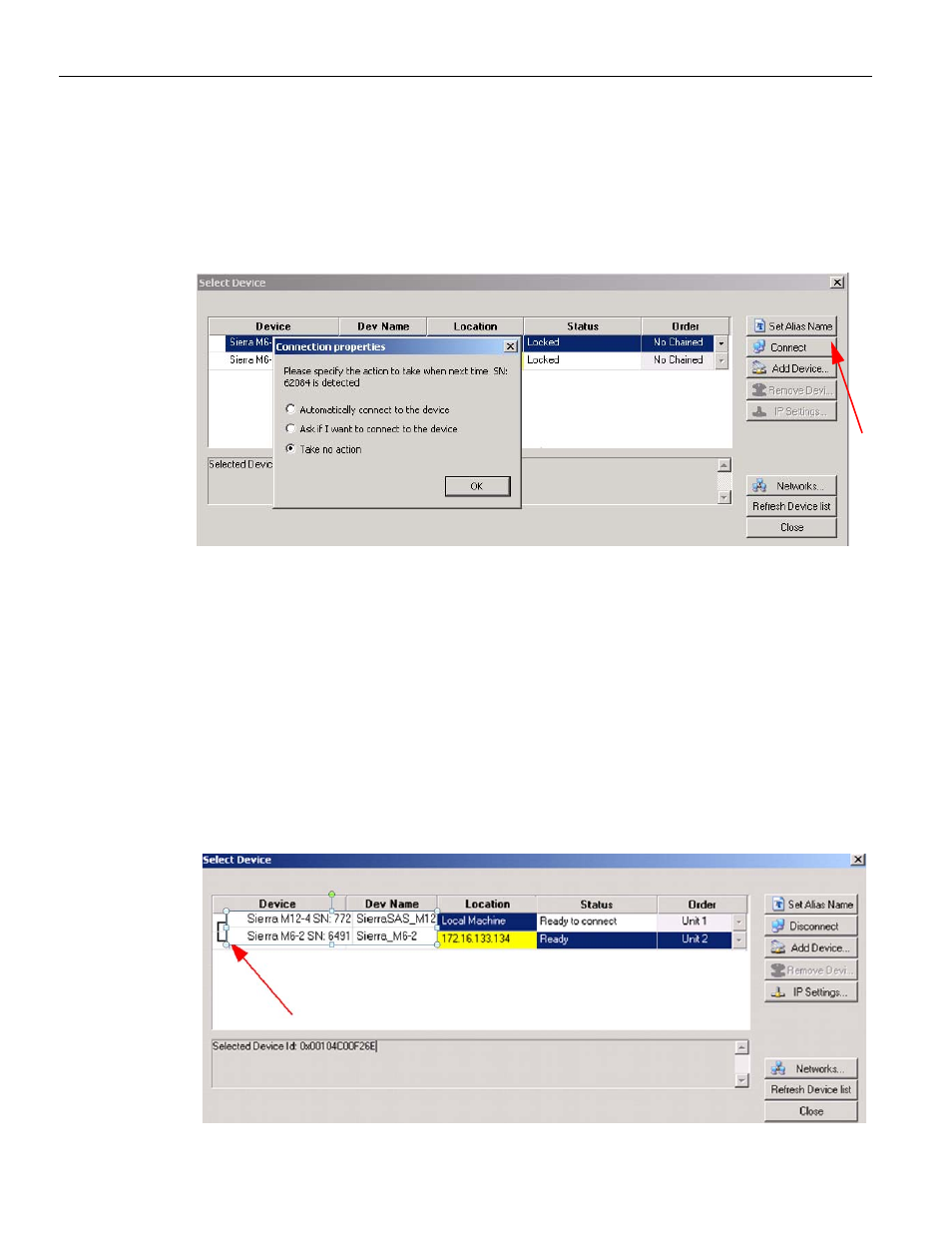

Figure 1.13: Connection Properties Dialog
Specify one of the actions from the following:
 Automatically connect to the device
 Ask if I want to connect to the device
 Take no action
If ‘Automatically connect to the device’ is selected, the next time the application opens
the device will be automatically connected.
In the Select Device dialog chained or cascaded units are displayed in the Device column
with a
[ (square bracket) icon. The sequence of the units is displayed in the Order column.
See the following screen capture.
Figure 1.14: Select Device Dialog Displaying Unit 1 and Unit 2 Chained
