Teledyne LeCroy Overview of Generation and Global Settings Files
292 Sierra M124 SAS/SATA Protocol Analyzer User Manual
5.6.1 Traffic Generation (*.ssg) Files

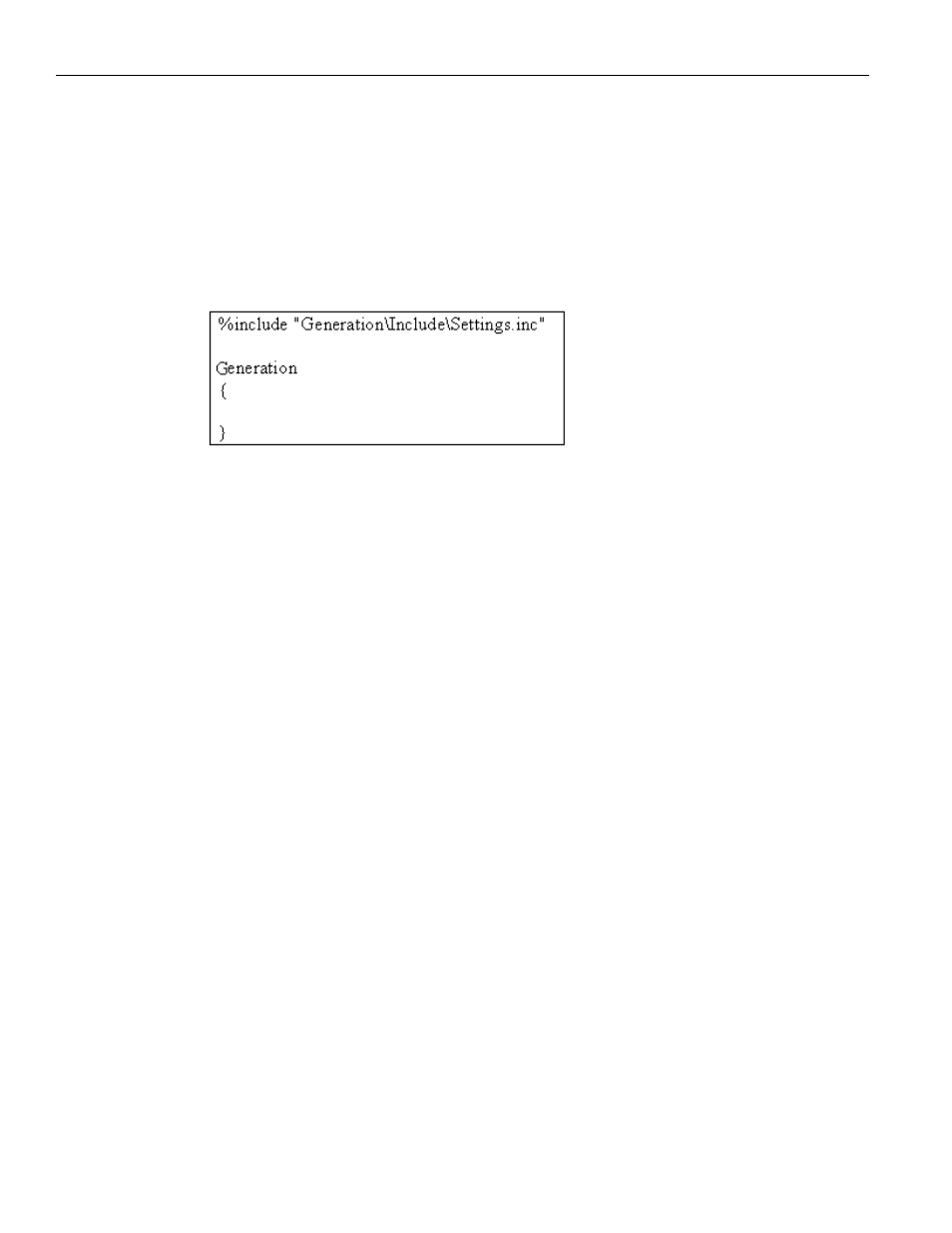

The .ssg traffic generation files are text files consisting of include statements, a
generation block, and optionally global statements.
The generation block is the code responsible for the actual traffic generation. It is marked
by the tag Generation. The composition and format of the generation block is described
later.
The include statements provide links to the Include files, which provide the definitions
for primitives, frames, and settings that hold for most or all of the generation session
(global settings).
The definitions for SAS and SATA traffic are contained in Teledyne LeCroy‐provided
Include files: Settings.inc, PrimitivesDecl.inc, AddressFramesDecl.inc, SSPFrames.inc,
SMPFrames.inc, and SSPFrames.inc.
5.6.2 Settings.inc File
The Settings.inc file contains global statements about the link, the type of device being
emulated, and other conditions that are to exist throughout part or all of the traffic
generation. This file must be included in the traffic generation file.
There are fifteen groups of settings in this file:
 AutoMode
 COMINIT/COMRESET OOB Signal
 COMWAKE OOB Signal
 COMSAS OOB Signal
 Generation Commands
 Link Speed
 SATA Link Initialization
 SAS Speed Negotiation
 SATA Speed Negotiation
 Autowait:
 SAS After
 SAS Before
 SATA After
 SATA Before
 Wait Command Timeout
 Scrambling Mode
