124 Sierra M124 SAS/SATA Protocol Analyzer User Manual
Right‐click the column to Add Bookmark or Edit Bookmark, Set Time Stamp Origin, go to
Preferences, choose Time Stamp Format, Change Background (or Foreground) Color, or
Goto a position.
Note: You can double‐click a data frame to display the data payload view. 
The Status column can show ABRT and UNC status.
Export As Text/Excel
Select File > Export > Export to Text/Excel to open the Save As Text dialog.
For Save As Type, select Text Files or Excel Files.
Select options from With comma delimiter, Export Duration and Save in a Single CSV File.
For Save As Range, select All Packets or enter a cursor range.
Enter a File Name and click Save.
Note: The Export As Excel option is available only for Column View and Spreadsheet View.
Change Format of Logical Block Address (LBA)
You can set different LBA formats in Packet View and Spreadsheet View. To change the
LBA format, right‐click the LBA column to display the popup menu, select Format, and
change the format to Decimal, Hexadecimal, or Binary.
In Spreadsheet View, you can also click the Trace Viewer Configuration icon to display
the Trace Viewer Configuration dialog. Expand the Frame List/Spread Sheet View, select
LBA/Sector#, and change the Format. If you cannot change the format there, select the
Link Fields, Transport Fields, ATA Cmd. Fields, or SCSI Cmd. Fields node, select the field
(such as “LBA High”), and then change the Format.
3.3.6 Text View
Text View displays the captured data interpreted as transaction frames, grouped in
columns by port.
To display Text View, select Analysis > Text View or click the button on the
toolbar.

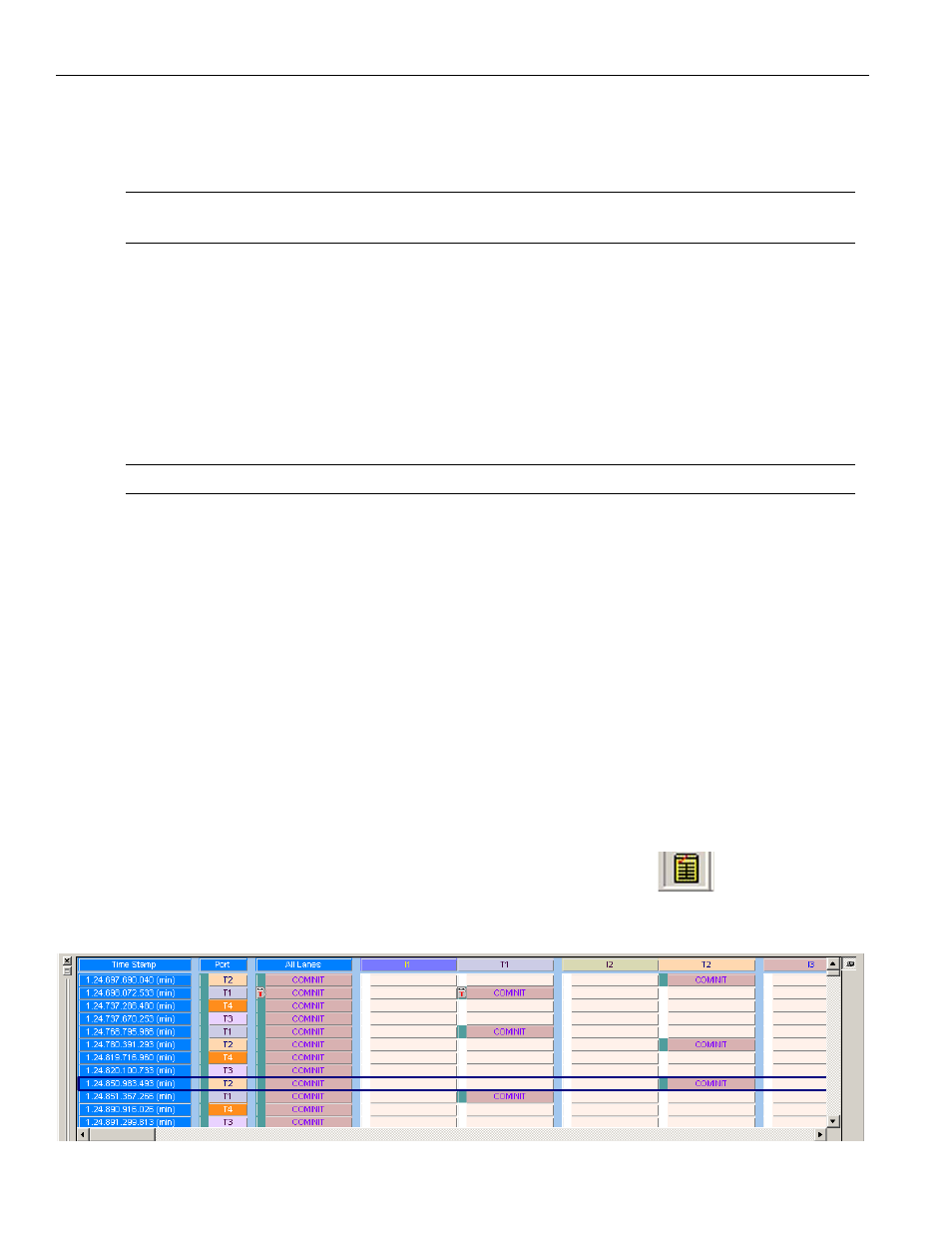

Figure 3.15: SAS: Text View
