Teledyne LeCroy TxRxVout & Preemphasis
204 Sierra M124 SAS/SATA Protocol Analyzer User Manual

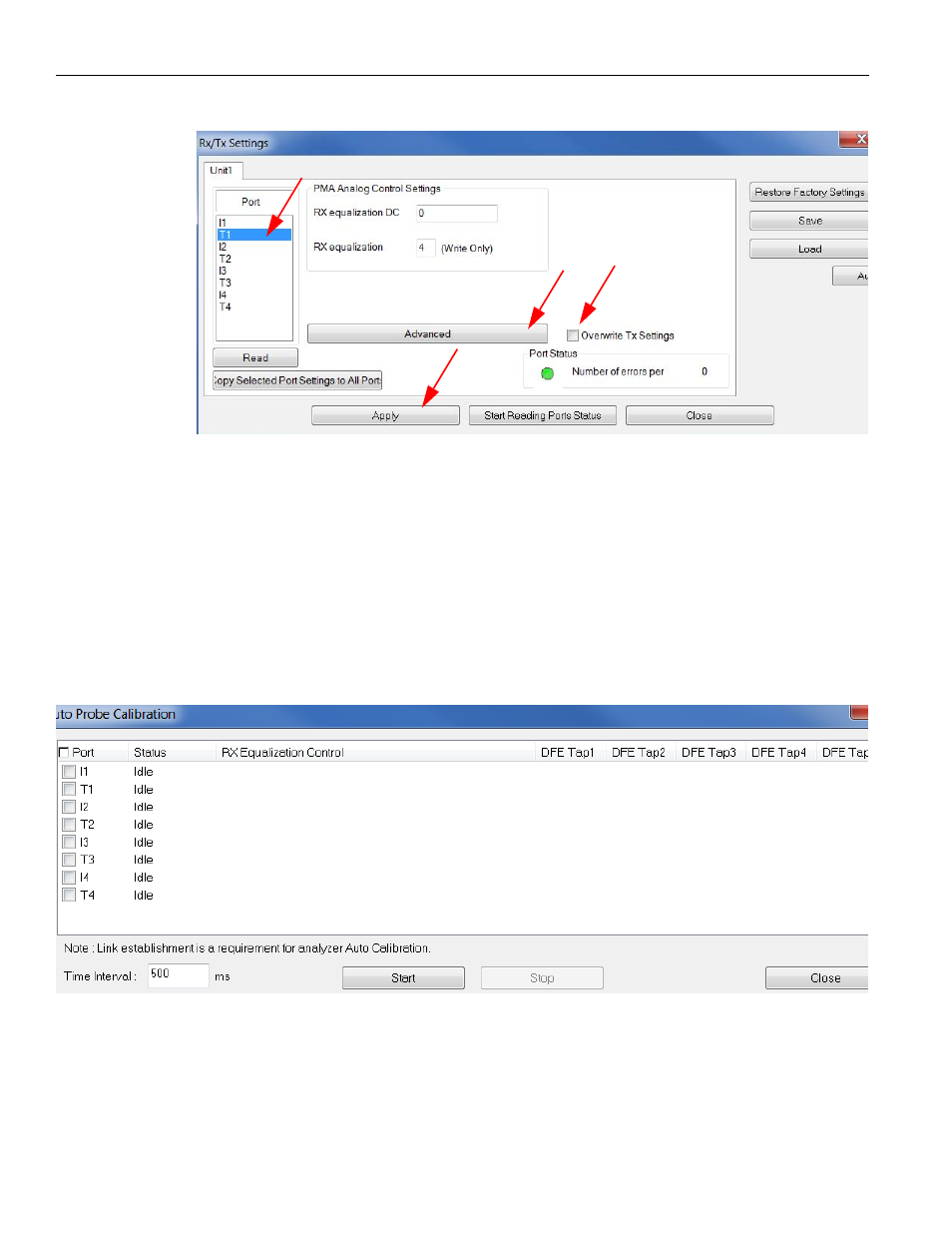

Figure 3.133: Rx/Tx Settings Dialog
Overwrite Tx Settings: Check this box (see Figure 3.133 ) to retain the optimal values
reached through manual calibration every time the link goes through Training due to port
reset, power cycle or disconnection.
3.15.4 Auto Probe Calibration
The Auto Probe Calibration dialog will attempt to optimize the receiver settings. The
accuracy is controlled by the time interval spent on each setting. Note that this action
might take a very long time depending on the values entered.
Figure 3.134: Auto Probe Calibration Dialog
