Teledyne LeCroy Creating Global Rules
248 Sierra M124 SAS/SATA Protocol Analyzer User Manual
Captured data DWORDs may also be used in the Substitute Data DWORD test state
action. From the Action Properties screen, choose Substitute Data DWORD and then
select the Substitute for property. A drop‐down menu is provided (see below) that allows
the choice of a custom DWORD or any of the four captured DWORD registers.

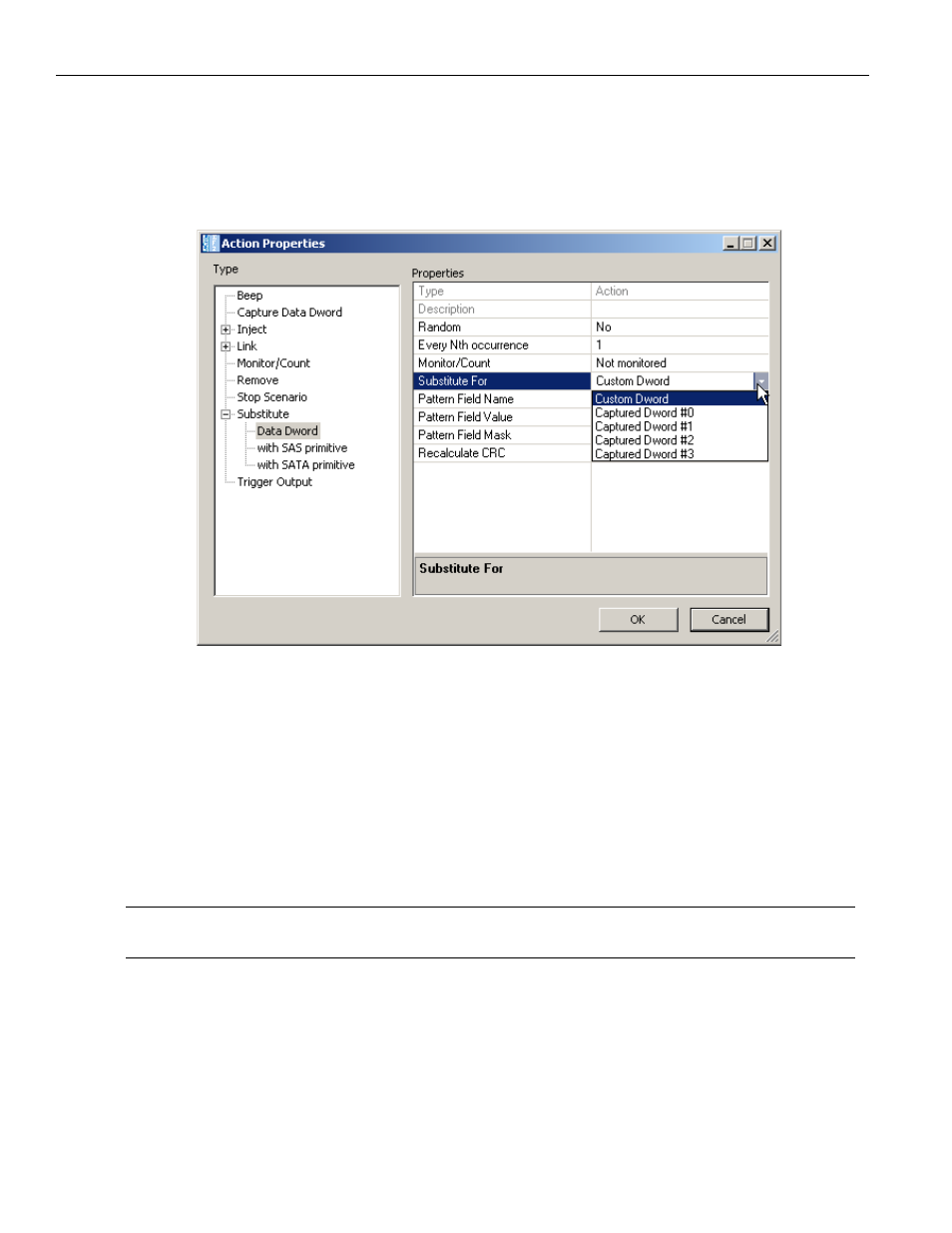

Figure 4.19: Using a Captured Data DWORD in Substitute DWORD Test Action
4.8.5 Summary of Scenario Creation
The suggested process of creating and executing a scenario is as follows:
1. Create a scenario in the main library.
2. Save all scenarios in the main library to a InFusion device or a device of your choice.
3. Select the scenario in the main library that you want to run on the device.
4. To run the scenario, click the Start Scenario button from the Main Library toolbar.
The device starts to monitor/modify traffic.
Note:
Step 1 is described in detail for each example in following sections. Steps 2 to 5 are described in
detail at the end of this chapter.
4.9 Creating Global Rules
This section gives examples for creating the Global Rules area of a scenario. Recall that
the Global Rules area defines a single test state. The Global Rules do not have the
capacity for multiple states, so that area of a scenario cannot change state.
