Sierra M124 SAS/SATA Protocol Analyzer User Manual 27
Expandability Teledyne LeCroy

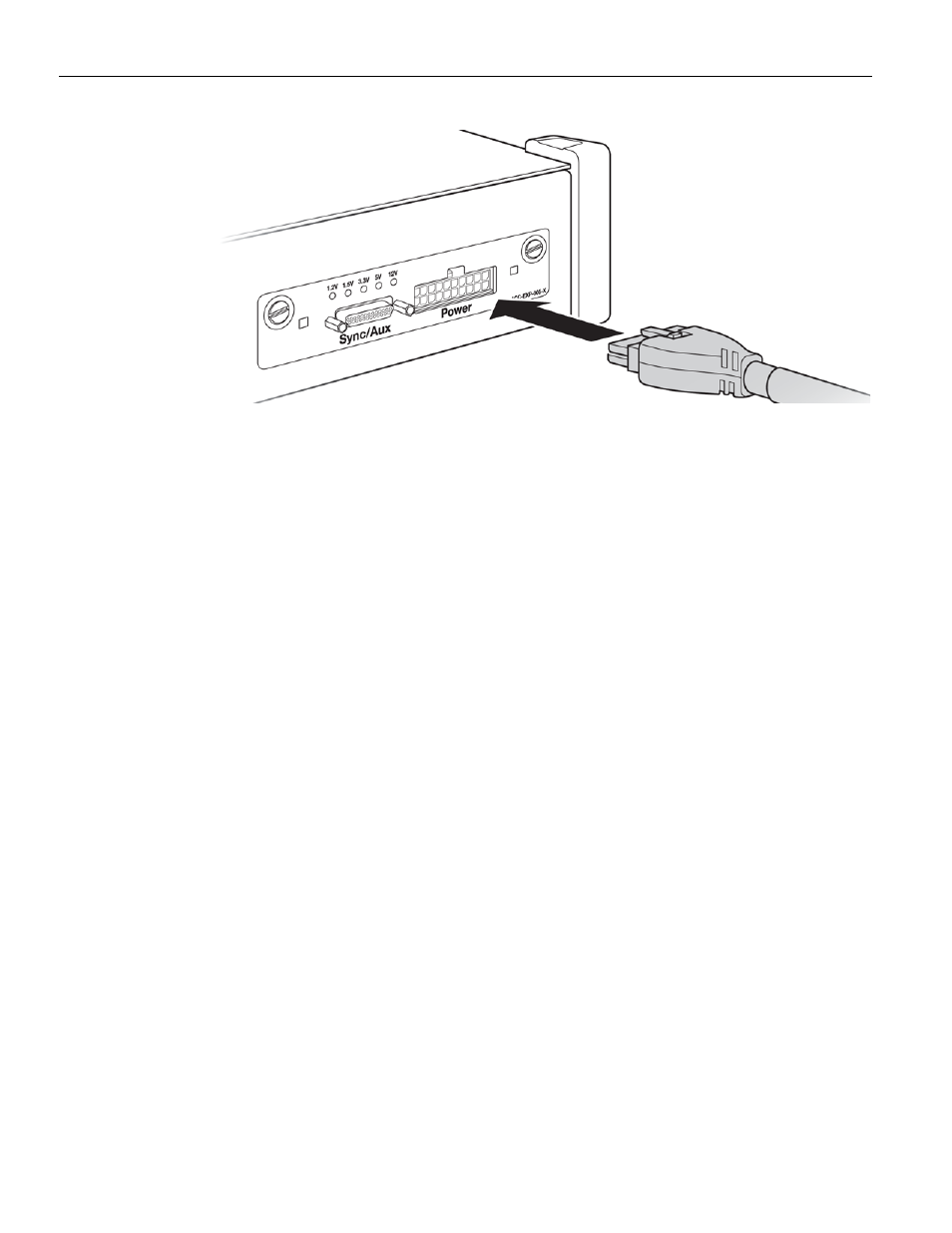

Figure 1.15: Power Expansion Card 2
It is shipped with the following three cables:
 Standard 4‐pin power connector (ground, 5v, 12v only): This is a direct replace‐
ment for the existing Power Expansion Card cable.
 SATA 15‐pin power segment connector: This plugs in to the power segment of
the standard SATA connector, allowing to control and monitor its power and
DevSlp.
 DevSlp cable: This cable is used to monitor DevSlp levels when the Device is con‐
nected directly to the Host. It is up to the user to supply a copy of the DevSlp sig‐
nal coming from the Host to connect to the DevSlp wire of this cable, as well as
to connect the adequate ground wire of this cable.
Activating the Power Expansion Cards
Select Setup > Power Source Control to display the Power Source Control dialog (see
Figure 1.16 on page 28 ). Depending on the Power Expansion Card/s ordered the
applicable device controls are enabled. Make the appropriate selections and click Close.
