Sierra M124 SAS/SATA Protocol Analyzer User Manual 357
Sierra Trainer Generation Language Teledyne LeCroy
2. Select an event, such as Primitive. The event appears in the Available Events area.

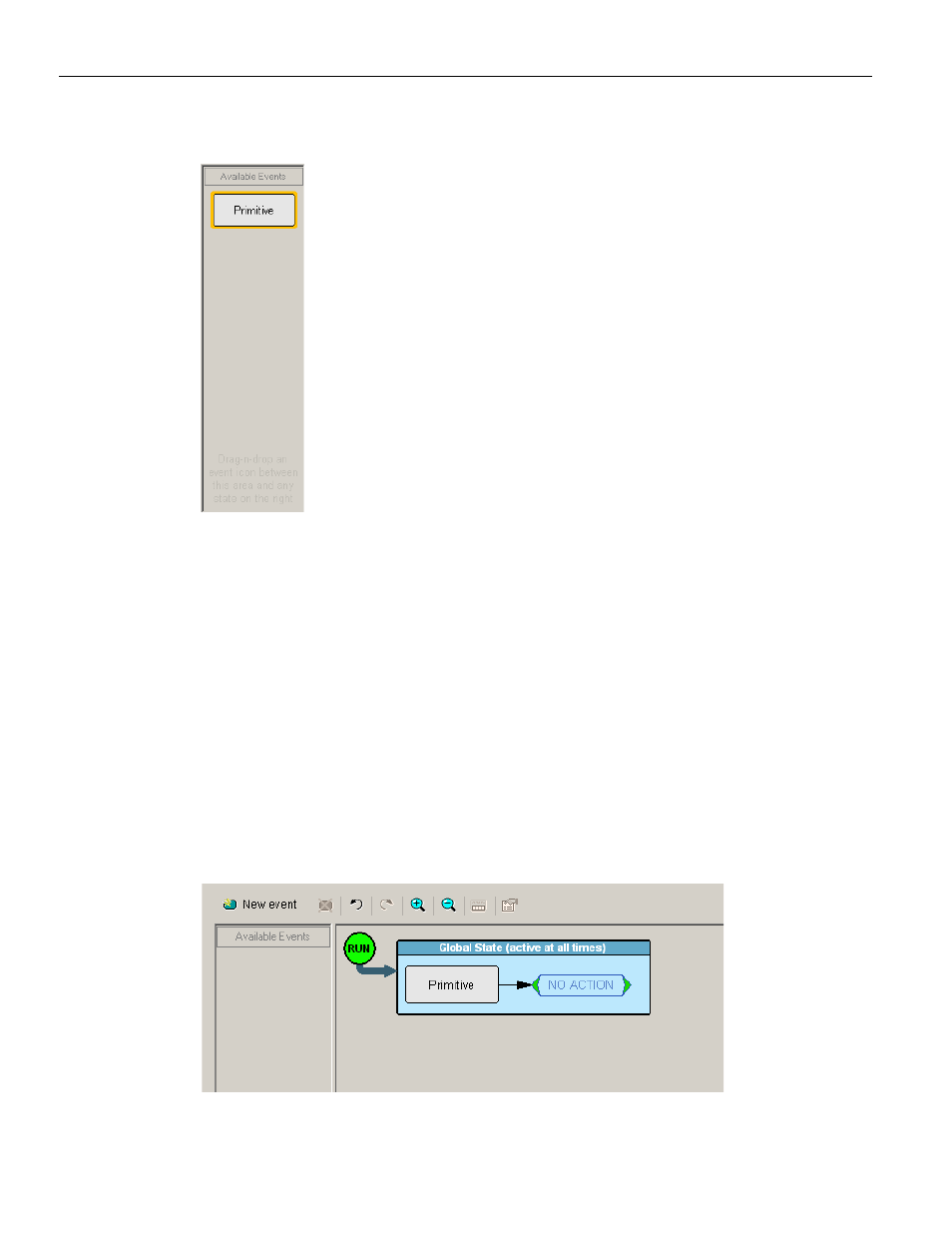

Figure 5.19: Available Events Area
5.11.12 Dragging a Button to the Main Display Area
After you create an Event button in the Available Events area, you can drag the button to
the Main Display area and drop it in the appropriate cell (a cell is a grayed‐out rectangle
with a dashed line around it). You can think of each cell as a target for drag‐and‐drop of an
Event button.
To drag‐and‐drop the Event button:
1. Place the mouse cursor on the Event button in the Available Events area. Click the
left mouse button.
2. Drag the button to the cell. When the button is in the cell, a dashed highlight line
appears around the cell. Drop the button in the cell (release the left mouse button).
The Event button appears in the cell.
Figure 5.20: Event in Main Display
