Navigation + View Toolbar Teledyne LeCroy
3.6.1 Go To Menu
Locate Cursors
To quickly locate any cursor within the data viewer display, click the Go To button and
choose the cursor to locate. You can also locate a cursor by selecting Go To from the Edit
menu and choosing the cursor to locate.

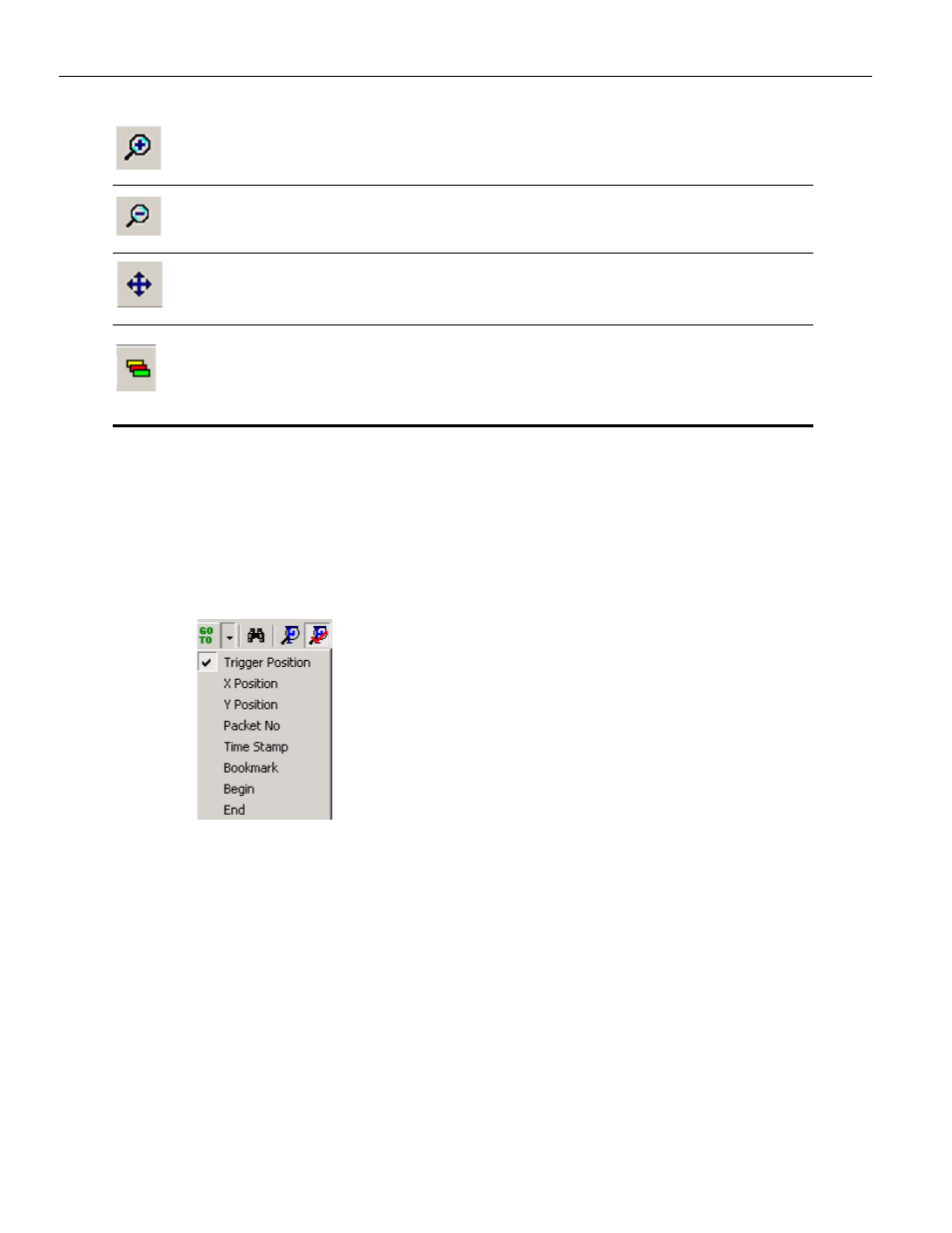

Figure 3.74: Locate Cursor
The Zoom In button on the Viewer Setting Toolbar magnifies the data display
area on the screen. Clicking this button in Column or Text View increases
column width only.
The Zoom Out button on the Viewer Setting Toolbar scales the data display
area to display more data lines on the screen. Clicking this button in Column
or Text View decreases column width only.
The Normal Zoom button on the Viewer Setting Toolbar resets the zoom to
default normal on the screen. Clicking this button in Column or Text View
resets column width only.
You can use Tile Horizontally All Views icon or select View > Tile Views to
revert any unintended window docking or sizing, or maximize screen
utilization. This function only tiles views inside a trace window.
Note that there is no command to tile views vertically.
