Teledyne LeCroy Analysis
140 Sierra M124 SAS/SATA Protocol Analyzer User Manual

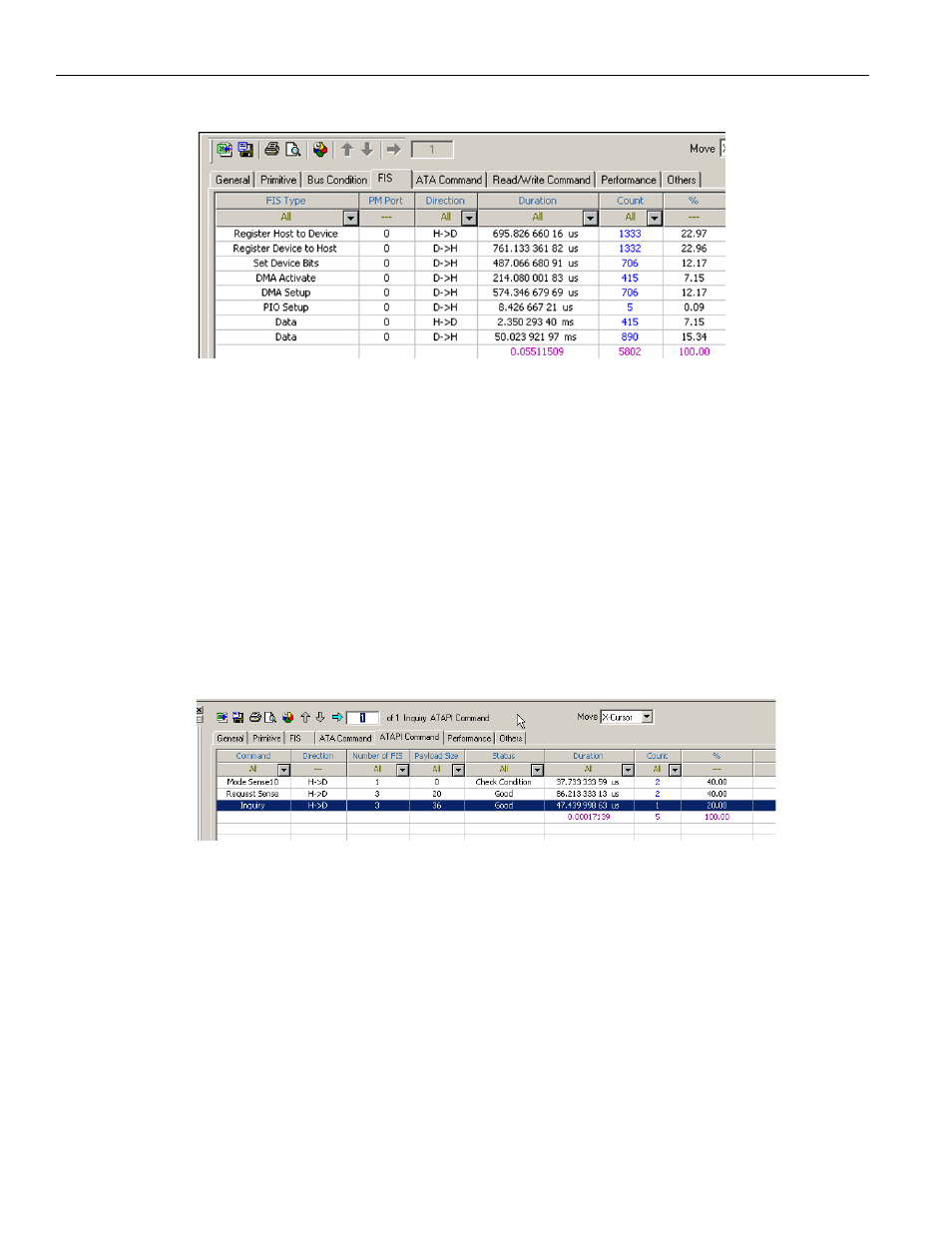

Figure 3.44: SATA: FIS Report
Queue Command Report (SATA)
To display the Queue Command Report, click the Queue Command tab. The
Queue Command Report displays information in the following columns:
 Command: All, Custom, Read DMA Queued
 PM Port
 Status: All, Custom, Normal Output
 Payload Size: All, Custom, or a number of DWORDs
 Direction: All, H‐>D, D‐>H, or Custom
 Duration: All, Custom, or time unit (accumulative)
 Count: All, Custom, or a number of occurrences
 %: of total count
Figure 3.45: SATA: Queue Command Report
PM Statistic Report (SATA)
To display the PM Statistic Report (see Figure 3.46 on page 141 ), click the PM Statistic
tab. The PM Statistic Report displays information in the following columns:
 Request Type: PMREQ_P
 Request Port
 Response Type: All, Custom, PMACK
 Response Time
 Request Entering Delay
 Response Entering Delay
 Wakeup Type
 Request DC Idle Time
