Teledyne LeCroy User‐Defined Decoding
216 Sierra M124 SAS/SATA Protocol Analyzer User Manual

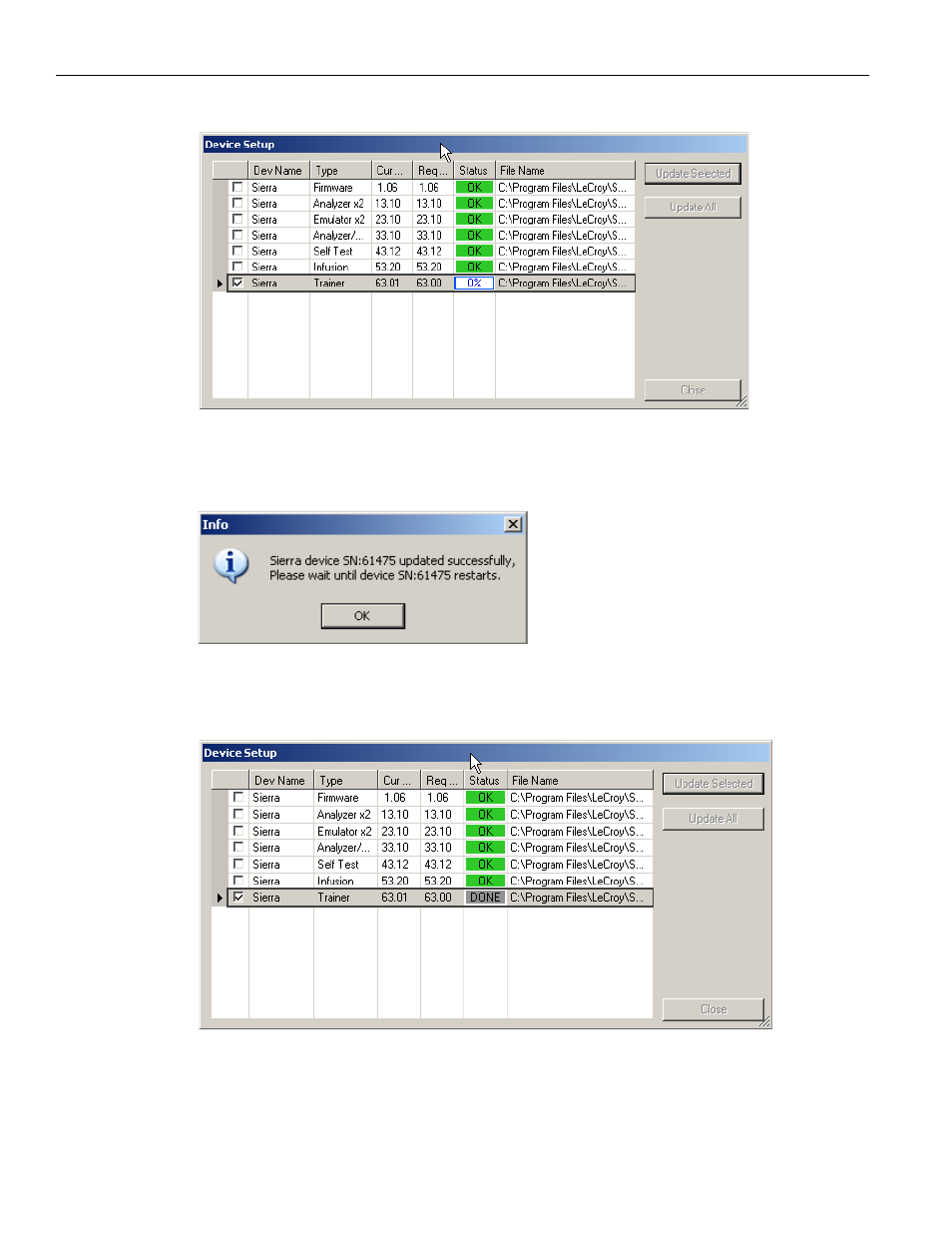

Figure 3.143: Device Setup Dialog Beginning to Update Status of a Device
After the update, the device must restart.
Figure 3.144: Info Dialog
Then the update is complete.
Figure 3.145: Device Setup Dialog with DONE Device Status
3.20 User-Defined Decoding
User‐defined decoding allows you to create a definition file to interpret commands and
frames that are not in the standard set recognized by the software.
