158 Sierra M124 SAS/SATA Protocol Analyzer User Manual
Run verification script(s): Start running selected script(s).
Edit script: Edit selected scripts in the editor application specified in Editor settings.
New script: Create a new script file using the template specified in Editor settings.
Show Grid: Show/hide a grid in the verification script list.
Show Description window: Show/hide the script description window (Shortcut key F2).
Show Output: Show/hide the script output windows (Shortcut key F3).
Settings: Open a special Setting dialog to specify different settings for VSE.

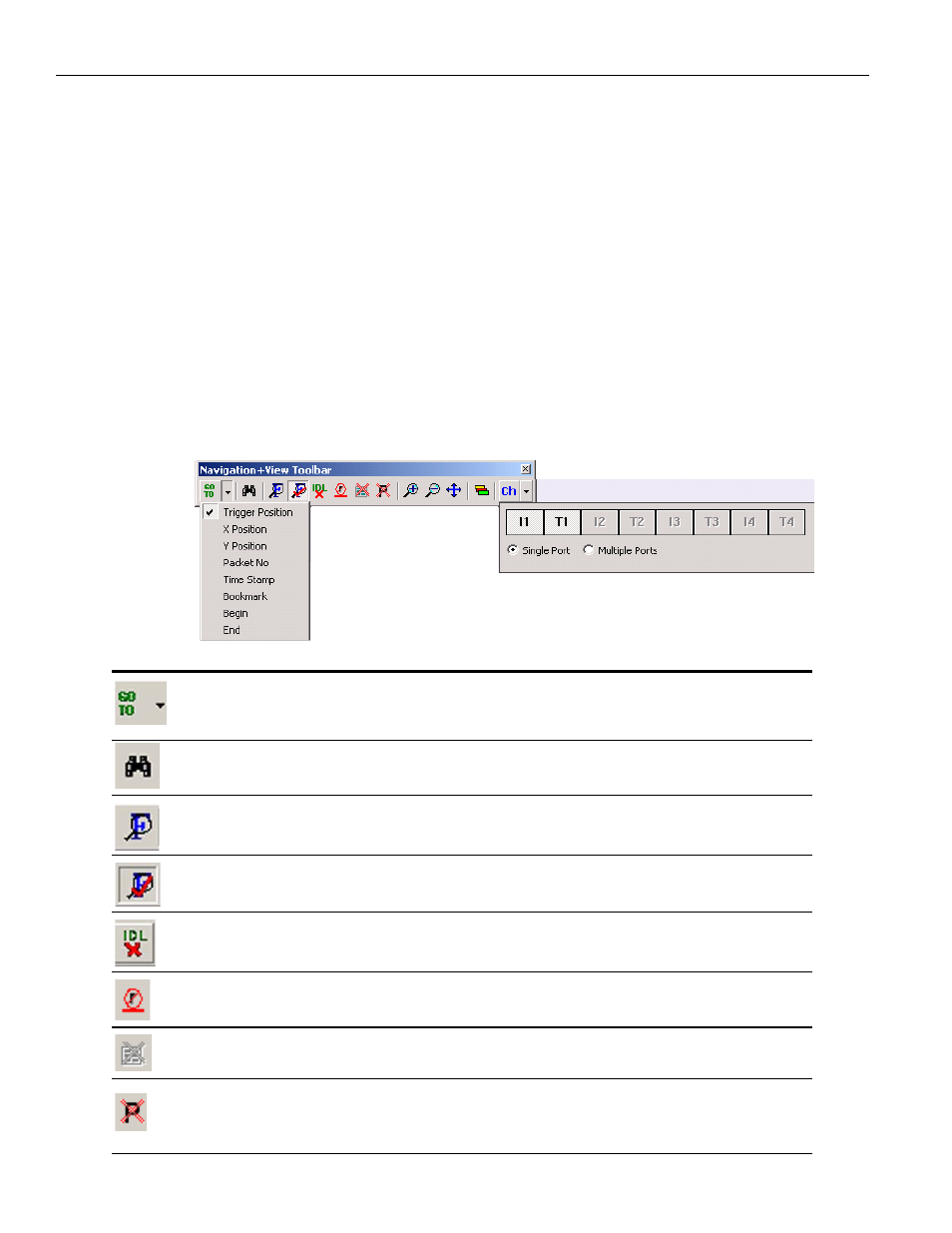

3.6 Navigation + View Toolbar
The Navigation + View toolbar allows you to navigate, search filter, hide RRDY/all
primitives and unassociated traffic, zoom, tile views and select ports.
The down arrow on the Go To button allows location of cursors or specific
packets: Trigger Position, X Position, Y Position, Packet Number, Timestamp,
Bookmark, Begin, and End.
The Search button opens the search dialog (see “Search” on page 175 ).
The Filtering Setup button opens the Filter dialog (see “Filtering” on
page 163 ) and allows you to specify the criteria for filtering the result.
The Enable Disable Filtering button toggles the result between a filtered and
unfiltered view (see
“Filtering” on page 163 ).
The Filter Idle button toggles the display to show/hide idle packets (see
“Filtering” on page 163 ).
The Hide RRDY Primitives button toggles the display to show/hide RRDY
primitives (see
“Filtering” on page 163 ).
The Hide Unassociated Traffic button toggles the display to show/hide
unassociated traffic (see
“Filtering” on page 163 ).
The Hide All Primitives button toggles the display to show/hide all primitives
(see
“Filtering” on page 163 ). Note: When capturing PM traces, you need the
ability to filter the PM primitives so you can find commands quicker.
