Teledyne LeCroy Creating a Sequence
266 Sierra M124 SAS/SATA Protocol Analyzer User Manual
19. In the File menu, select Save Scenario to save the scenario.

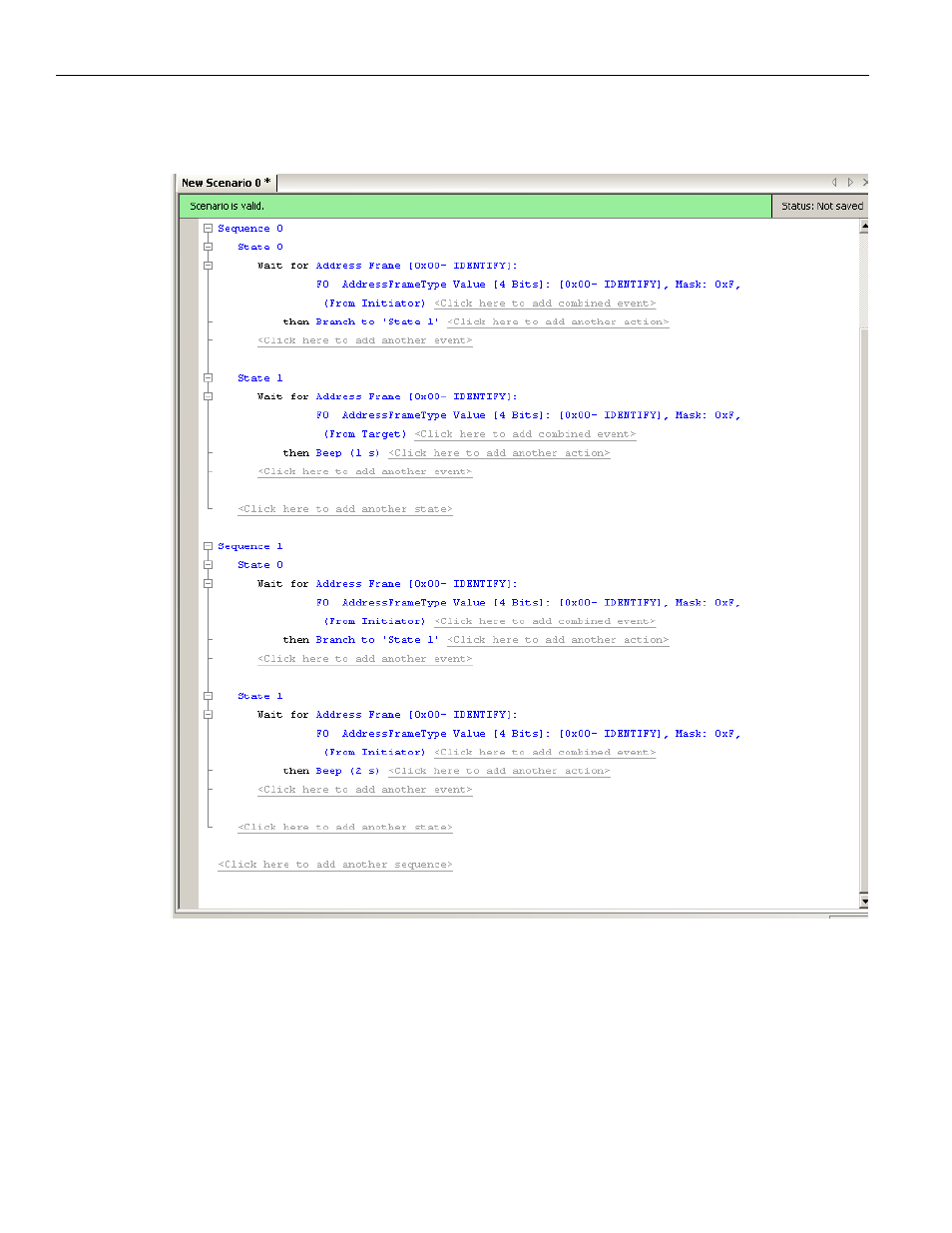

Figure 4.40: Example 7: Sequence Area of Scenario
4.10.2 Example 8: Creating a Sequence With Many States #1
In this example, a five‐state sequence detects if a group of primitives is received 
out‐of‐order from the initiator. The expected order is: Align (0), Align (1), Align (2), Align
(3). If this scenario detects any other order of these primitives, it causes the device to
beep and the scenario to restart.
