Teledyne LeCroy Analysis
142 Sierra M124 SAS/SATA Protocol Analyzer User Manual
Read Write Command Report (SATA)
To display the Read/Write Co
To display the Read/Write Command Report, click the Read/Write Command tab. You
can enable or disable creation of this page by selecting Create statistical report read/
write page in the Trace Viewer tab (see
“Trace Viewer Tab” on page 207 ). The Read/Write
Command Report displays information in the following columns:
 Time Stamp
 OpCode/Command
 LBA
 Sector Count
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Good
 Completion Time
 Count: All, Custom, or a number

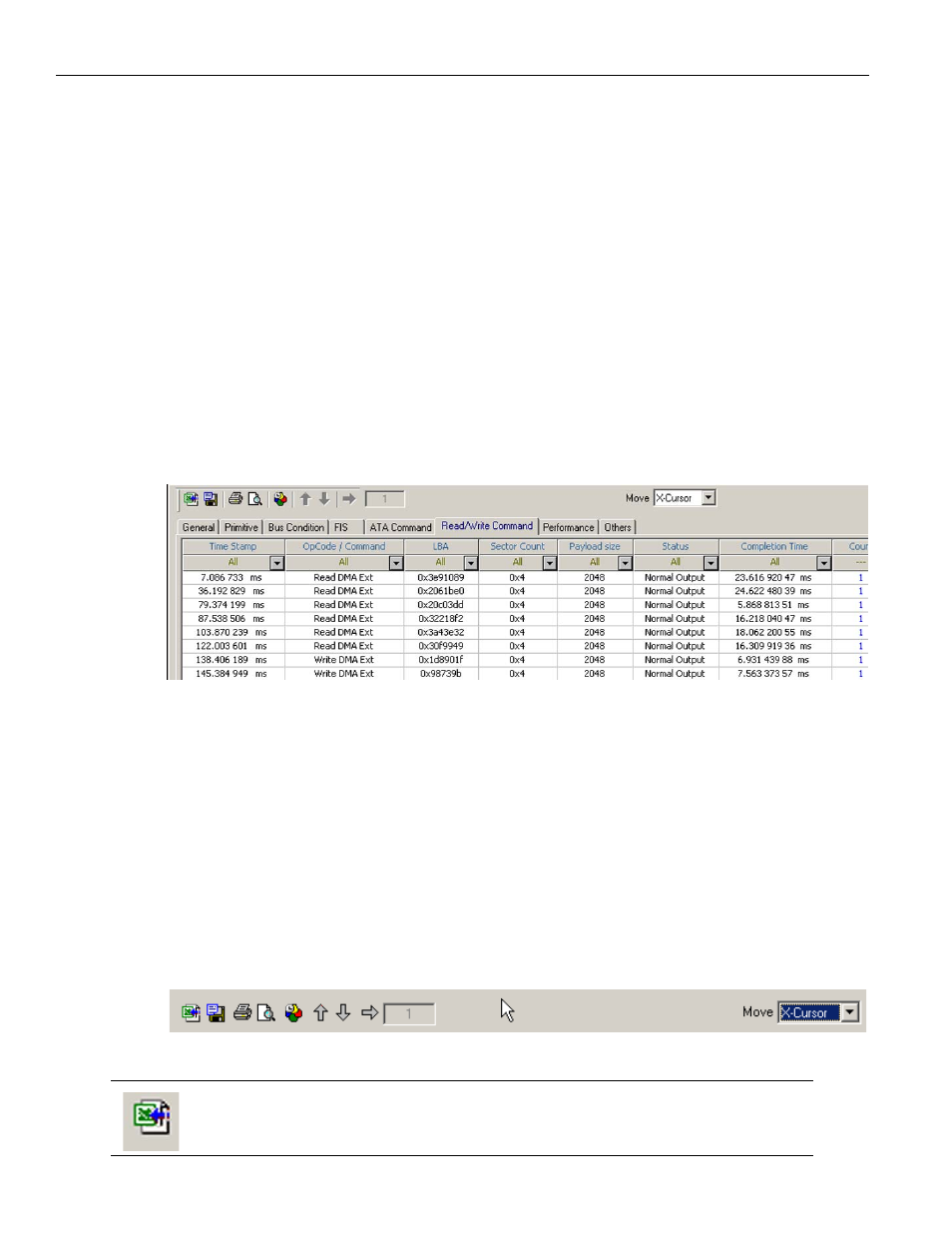

Figure 3.48: SATA: Read Write Command Report
3.3.10 Statistical Report Toolbar
 The Statistical Report toolbar provides the following functions accessible by but‐
tons on the toolbar:
 Export to Excel
 Save as Text
 Print Report
 Print Preview
 Report Display Settings
 Move to X‐Cursor, Y‐Cursor, or None
Export as Microsoft
®
Excel file
The Export to Excel button opens the Export to Excel dialog. Choose a folder in
which to save the Excel file, choose an appropriate file name, and click Save.
