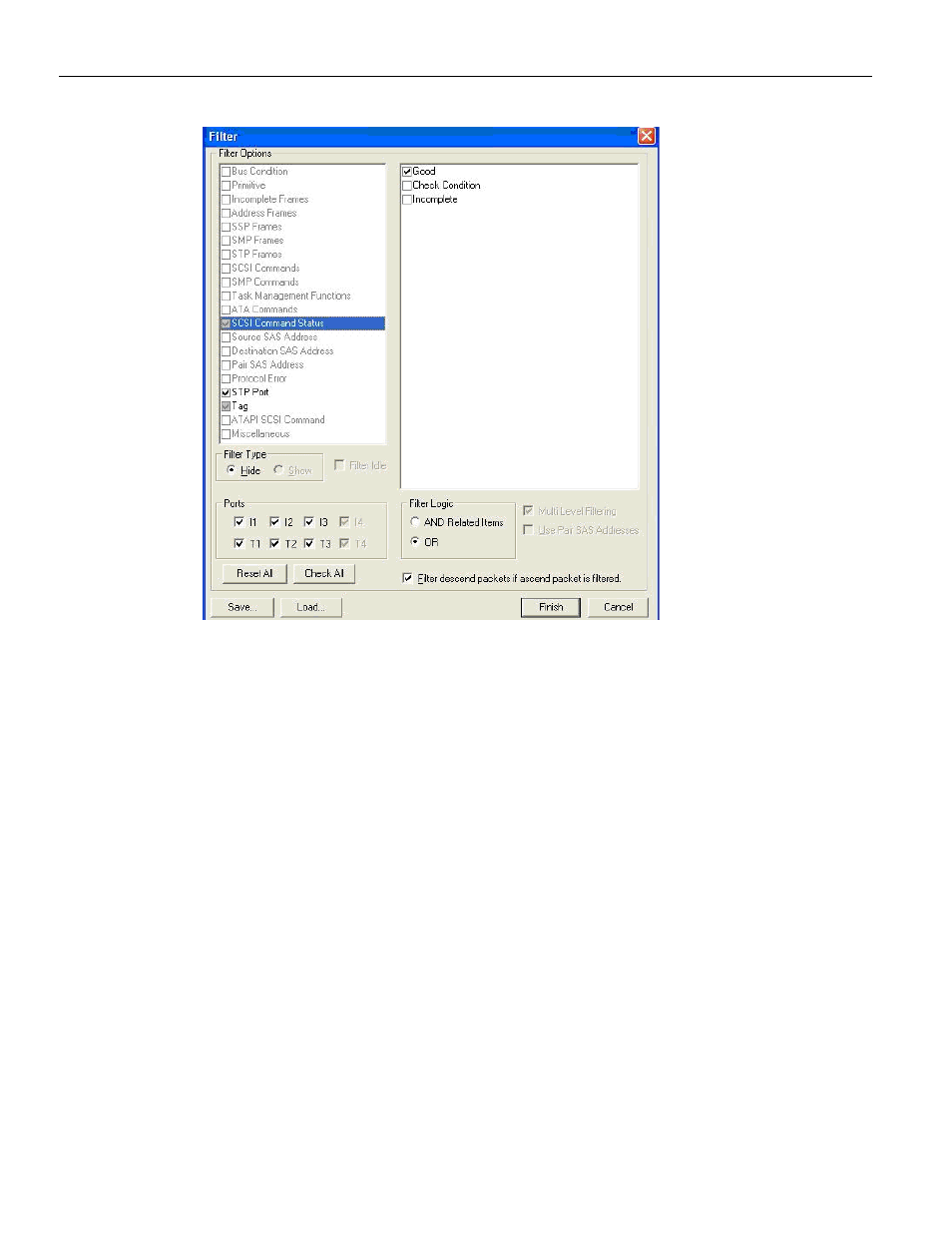

Figure 3.85: Third Level of Multilevel Filtering
Filter descending packets from trace highlight bar
If you check the Filter descending packets from trace highlight bar checkbox, the
application will only filter onward from the highlighted trace selection bar.
If you uncheck this option, the software only filters the filtered packet. For example, if this
option is checked and any SCSI command is selected, all transport and link packets of this
command are filtered. If you unchecked this option, only selected SCSI commands are
filtered.
3.6.4 Selectable Filter Options for SAS
The SAS Filter Options are:
 Command Data Pattern
 Bus Condition
 Primitive
 Incomplete Frames
 Address Frames
 SSP Frames
 SMP Frames
 STP Frames
 SCSI Commands
 SMP Commands
 Task Management Functions
