Sierra M124 SAS/SATA Protocol Analyzer User Manual 201
TxRxVout & Preemphasis Teledyne LeCroy
3.15.1 Advanced Probe Setting
The Advanced Probe Setting dialog allows you to set the TX Signals and DFE_Control
(Decision Feedback Equalization) parameters.
You can set the TX Signals values for:
 VOD (Programmable Differential Voltage)
 Pre‐emphasis Pre‐tab
 Pre‐emphasis first
 Pre‐emphasis second
You can set the DFE_Control values for:
 DFE_Tap1
 DFE_Tap2
 DFE_Tap3
 DFE_Tap4
 DFE_Tap5
 reference voltage

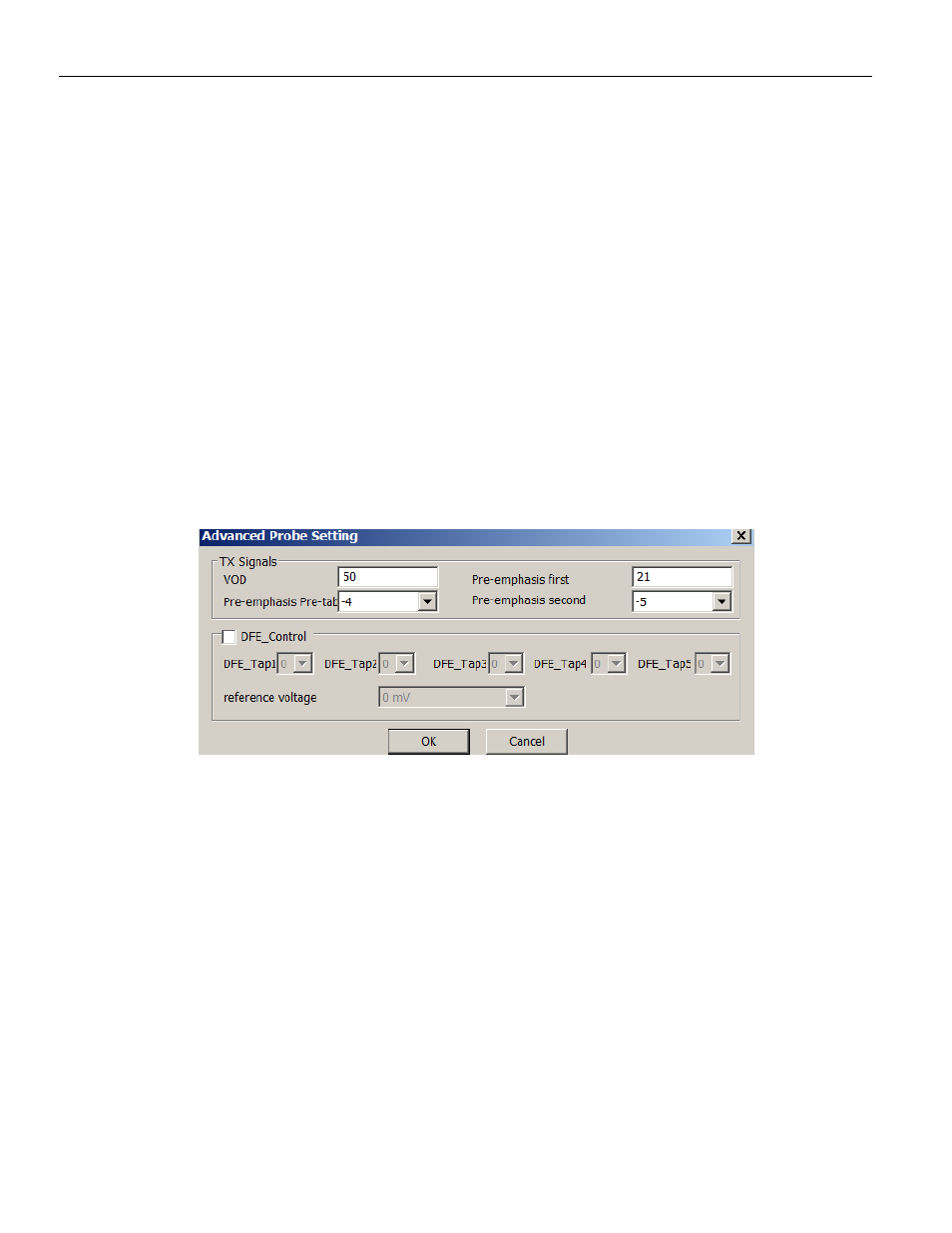

Figure 3.129: Advanced Probe Setting Dialog
3.15.2 References Probe Setting
The References Probe Setting dialog (see Figure 3.130 on page 202 ) allows you to set the
three reference points defined by the SAS 3.0 specification (Reference 1, Reference 2 and
NoEq), in cases when the default reference points do not result in a clean link.
These settings only need to be applied once for each analyzer as they are saved by the
SAS/SATA Protocol Suite application on the host machine. Connecting to a different host
machine requires reapplying the settings.
