Sierra M124 SAS/SATA Protocol Analyzer User Manual 133
Analysis Teledyne LeCroy

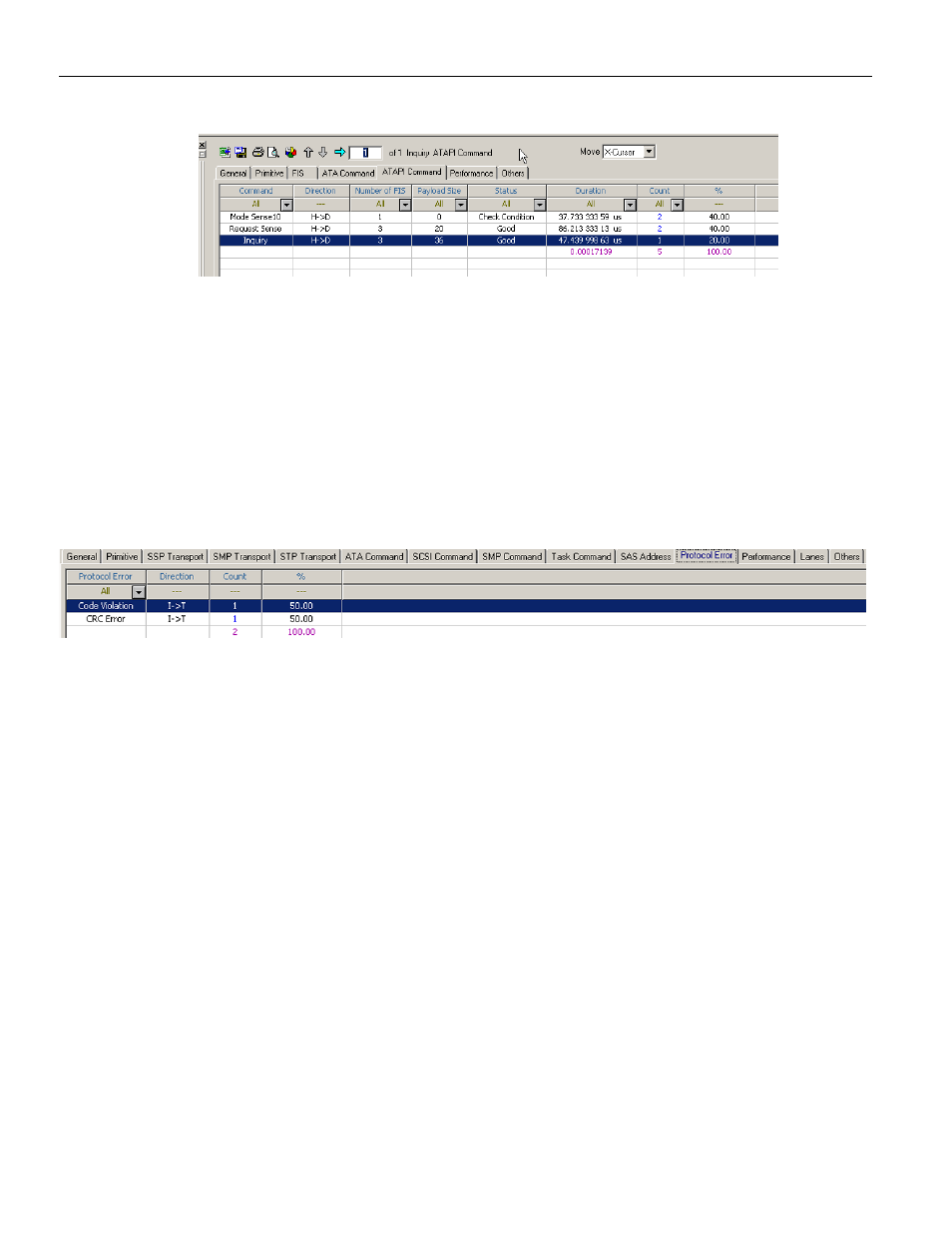

Figure 3.30: SATA: ATAPI Report
Protocol Error Report
To display the Protocol Error Report, click the Protocol Error tab.The Protocol Error Report
displays the report data in columns with the following information:
 Protocol Error: All, Custom, Code Violation, CRC Error, Disparity Error, Align‐
Notify Error
 Direction: All, H‐>D, D‐>H, I‐>T, T‐>I, or Custom
 Count: All, Custom, or a number of occurrences
 %: of total count
Figure 3.31: SAS: Protocol Error Report
Others Report
To display the Others Report (see Figure 3.32 on page 134 ), click the Others tab. The
Others Report displays information in the following columns:
 Items
 Idle No: Number of idle packets
 Payload Size: Total number of payloads in trace files (SCSI + ATA commands)
 Sample Time: Sample time
 Idle (Initiator): Host idle time
 Idle (Target): Device idle time (total)
 SSP Bus Utilization: SSP bus utilization time (SSP frames)
 SMP Bus Utilization: SSP bus utilization time (SMP frames)
 STP Bus Utilization: SSP bus utilization time (STP frames)
 Report
 Count or Time
