Teledyne LeCroy TxRxVout & Preemphasis
202 Sierra M124 SAS/SATA Protocol Analyzer User Manual

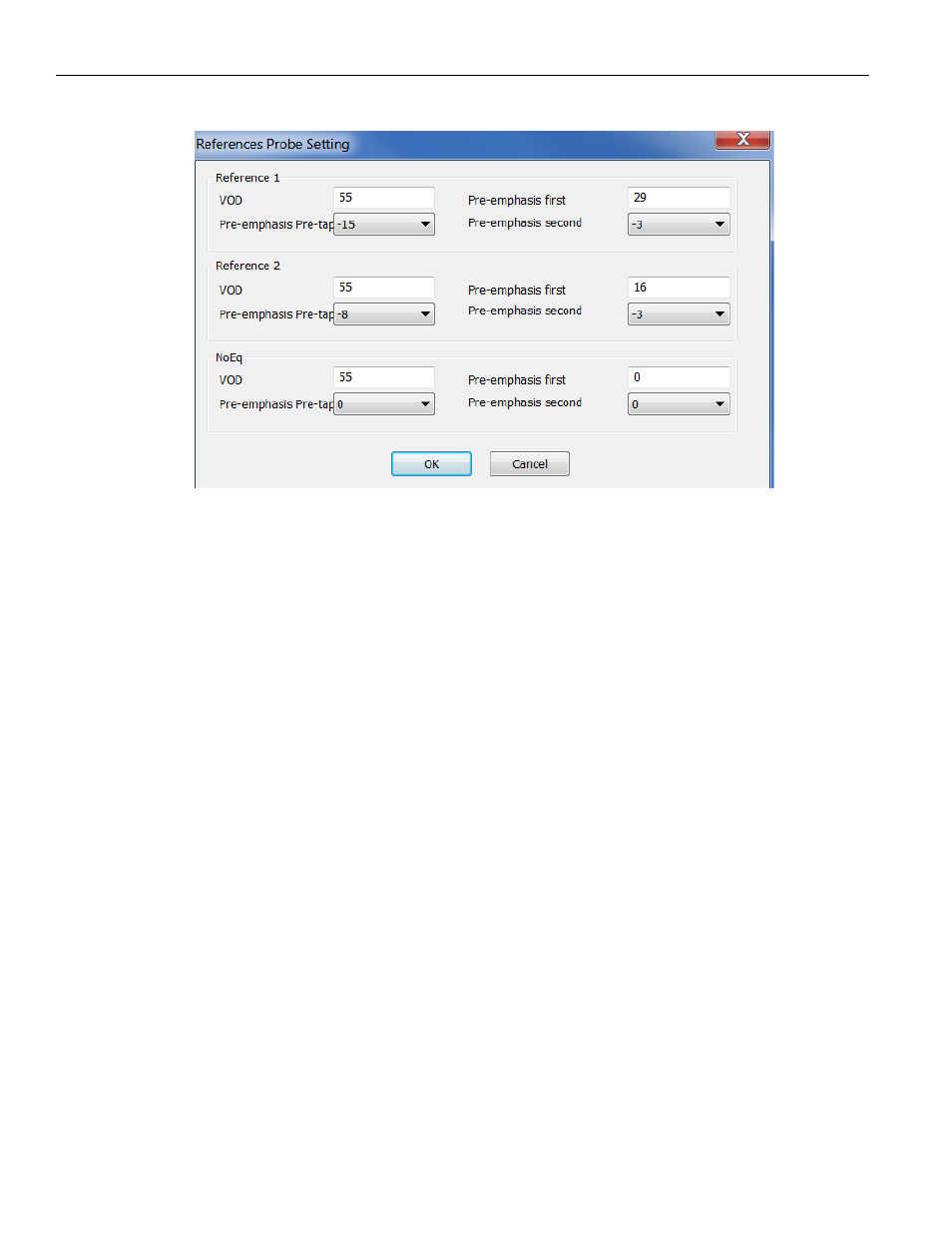

Figure 3.130: References Probe Setting Dialog
3.15.3 Manual Calibration of Tx Path from Jammer or Trainer
To manually calibrate perform the following steps:
1. Select Setup > TxRx Vout & Preemphasis to display the 
Rx/Tx Settings dialog (see Figure 3.131 on page 203 ).
2. Press the Read button to read the current values for all ports (values achieved
through automatic Training when the link has come up), then press the Advanced
button to see and tweak the values.
3. The typical set of values for the Initiator are shown in Figure 3.132 on page 203 . If
you see these values then no changes are required.
