Sierra M124 SAS/SATA Protocol Analyzer User Manual 193
Display Configuration Teledyne LeCroy
Note: You can also left‐click to set the X‐cursor and right‐click to set the Y cursor in the Frame and
Column View by clicking in the narrow strip on the very left side of a cell. Similarly, you can set
the cursors in the Waveform View by left and right clicking at the beginning of a waveform.
Time
Time differences between the cursors are displayed in the Cursor Position toolbar. To
display the cursor position tool bar, select Toolbar from the view menu and choose Cursor
Position.

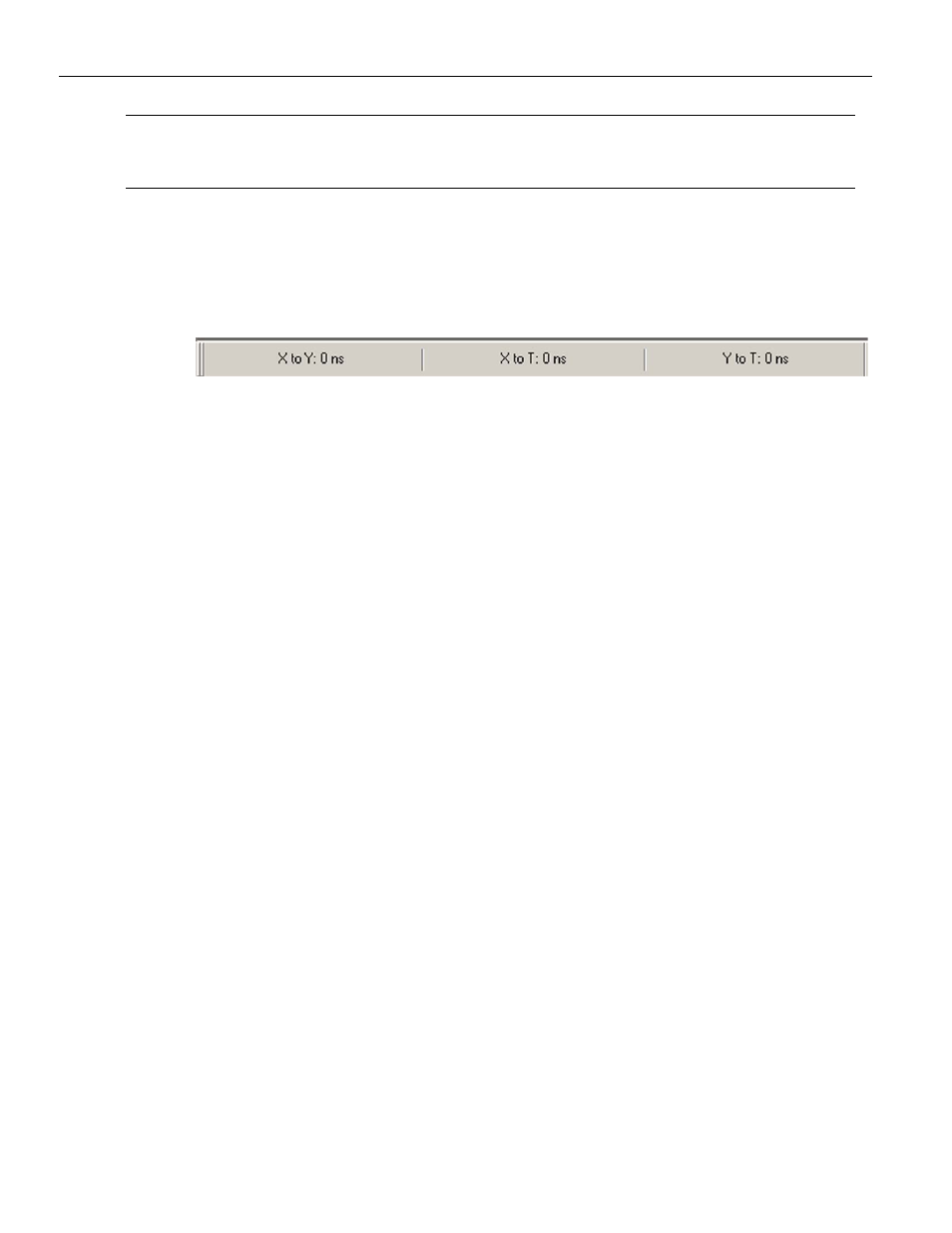

Figure 3.120: Cursor Position Toolbar
3.12 Display Configuration
The Analyzer ships with a default display configuration of field and viewer settings. You
can define your own field and viewer settings for a particular testing scenario. Right‐click
in the Packet View and select Preferences or select Setup>Preferences>Trace
Viewer>Configuration. The Trace Viewer Configuration dialog displays (see
Figure 3.121
on page 194 ).
3.12.1 Trace Viewer Configuration
The Trace Viewer Configuration dialog allows you to change the following display settings:
 Field Setting
 Format (Decimal, Hexadecimal, Binary)
 Visible
 Byte Order (Right Align, Left Align)
 Field Header Setting
 Text (color)
 Name
 Abbreviation
 Foreground (color)
 Viewer Setting
 Wrap Packet
 Enable Tooltips
 Data Payload
 Columns in Row (1, 2, 4, 8, 16)
 Bytes in Column (1, 2, 4, 8, 16)
 Time Stamp Origin: Absolute, Trigger, User Defined, Based on System Time
 Same color for start time and port
 Enable Packet View Condense Mode
 Time Stamp Format (LeCroy, Milli, Micro)
 Save Trace Viewer Configuration in a file
 Load Trace Viewer Configuration from a file
 Factory Setting (restores default settings)
