Teledyne LeCroy Interface
228 Sierra M124 SAS/SATA Protocol Analyzer User Manual
A File Library has Scenarios currently available in the device.
Using the buttons from left to right, you can:
 New scenario.
 Save selected scenario.
 Save library.
 Save a copy of the library as.
 View/edit a selected item.
 Insert a copy.
 Delete a selected scenario.
 Copy
 Paste
4.2.5 Device Ports
If a device is connected, the software displays the Device Ports.

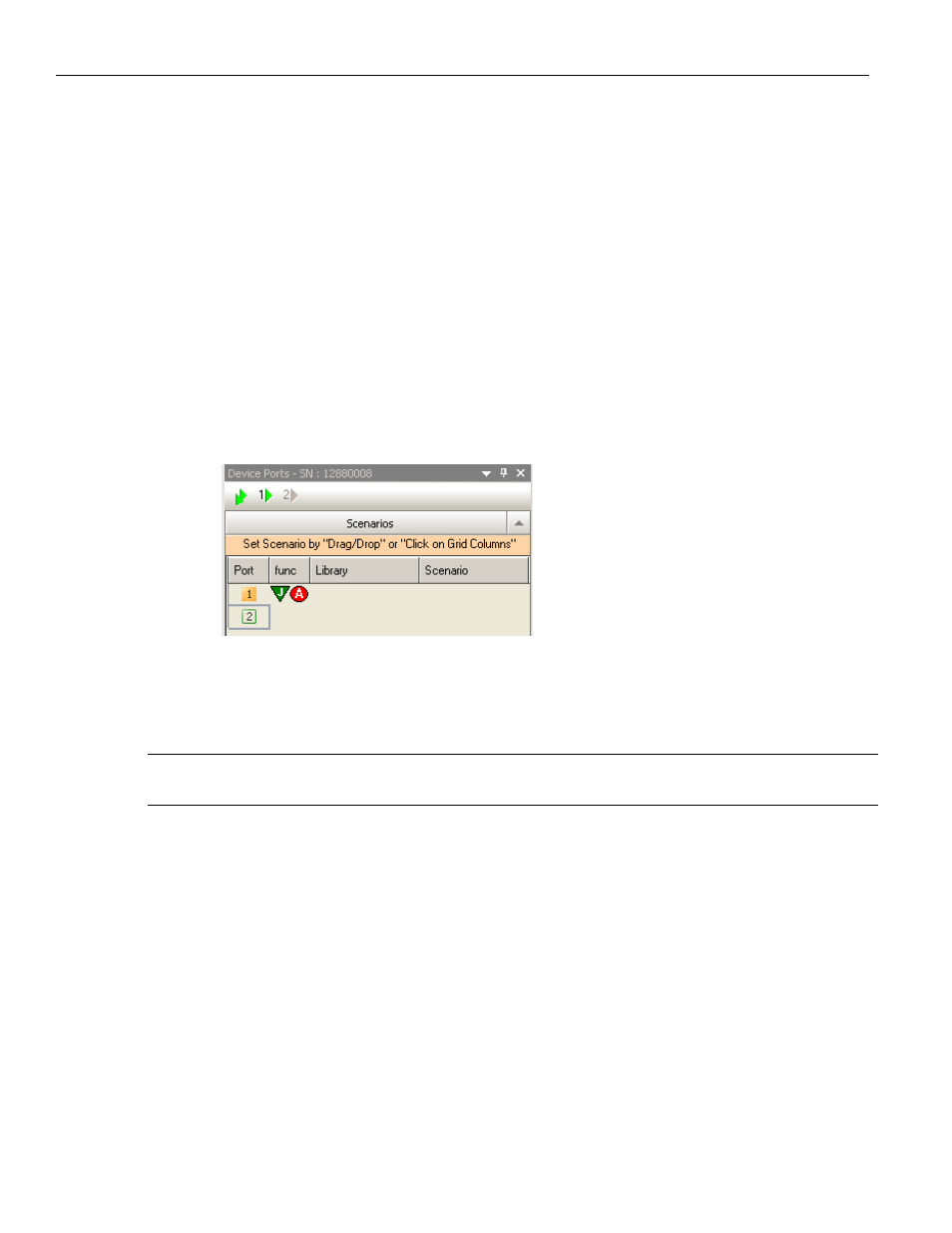

Figure 4.4: Device Ports
Using the first row of icons, you can Run/Stop All Ports or Run/Stop individual ports.
The columns display the Port, Function/Configuration, Library, and Scenario.
You can Float, Dock, Auto‐Hide, or Hide the window.
Note:
A port row is grayed‐out when that port has not been configured to be a Jammer in the
Port Configuration dialog (see “Port Configuration for InFusion” on page 229 ).
Using the Device Ports Dialog
After you have finished Port Configuration (see “Port Configuration for InFusion” on
page 229 ), you use the Device Ports dialog (see “Scenario Libraries” on page 234 ) to
assign specific scenarios to ports, so that different scenarios can run on different ports.
To assign a scenario to a port, drag and drop the scenario from any library window to the
port. The Device Ports dialog then displays the Library and Scenario on the row for that
Port/Configuration.
