Sierra M124 SAS/SATA Protocol Analyzer User Manual 103
SAS/SATA Software Menus and Toolbars Teledyne LeCroy
The dialog shows the current port configuration. To select a port configuration, click the
down arrow to display the Select Port Configuration dialog
.

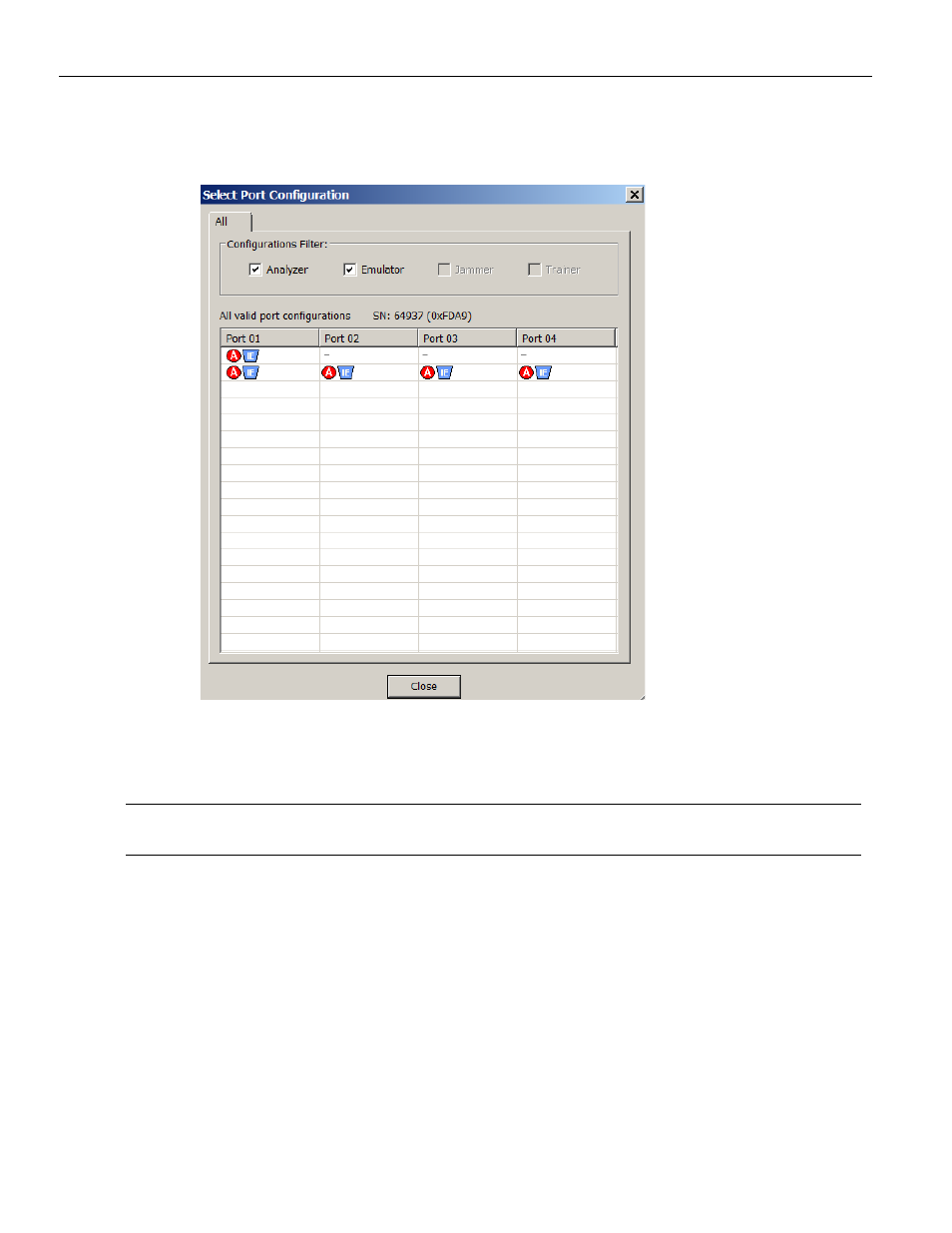

Figure 2.73: SAS: Select Port Configuration Dialog
Port configuration depends on the application you run. Use the checkboxes at the top to
filter the list of port configurations by the required function.
Note: To display the current Port Configuration, click the green button in the lower right corner to
display the Port Status window (see “Port Status” on page 190 ).
