Primitive
Double‐click Primitive (available only if you check Exclude Patterns) to open the Primitive
selection dialog.

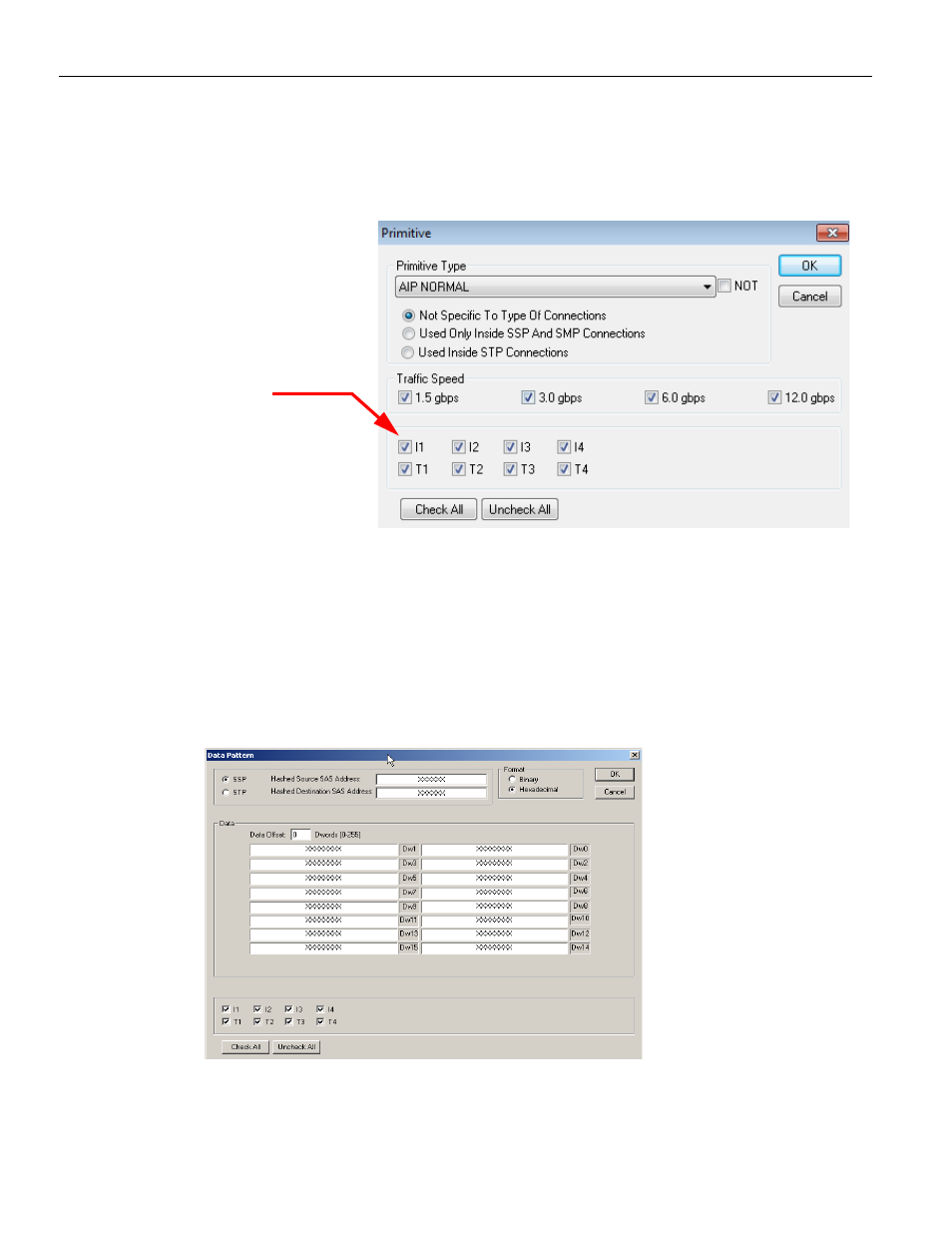

Figure 2.19: SAS: Primitive Dialog
SAS vs. SATA: SATA Dialog has no radio buttons and has different drop‐down options.
Click the down arrow next to the Primitive drop‐down list, choose a Primitive to exclude,
and click OK. Repeat for additional Primitives.
Data Pattern
Double‐click Data Pattern to open the Data Pattern definition dialog.
Figure 2.20: SAS: Data Pattern Dialog
SAS vs. SATA: SATA Dialog shows Port at the top and does not show SSP or STP.
Define the data pattern for capture or exclusion from capture and click OK.
Port ID
