When you select a type on any page of the Statistical Report, a set of navigation buttons
allows you to examine each instance of that type in the Sample Viewer.
3.3.11 Formatting the Statistical Report View
Initially the Statistical Report View contains all of the information in columns, but you can
customize the display by:
 Filtering columns by item
 Sorting items by column
 Hiding any column on the display
Filtering Column Content
To filter column content, click the down arrow in the heading for that column and choose
the items to display. The default is All. By checking a specific item, you exclude everything
but that item for display.
Figure 3.52: SAS: Type
Choosing Custom allows you to specify more than one item for display (see Figure 3.53 ).

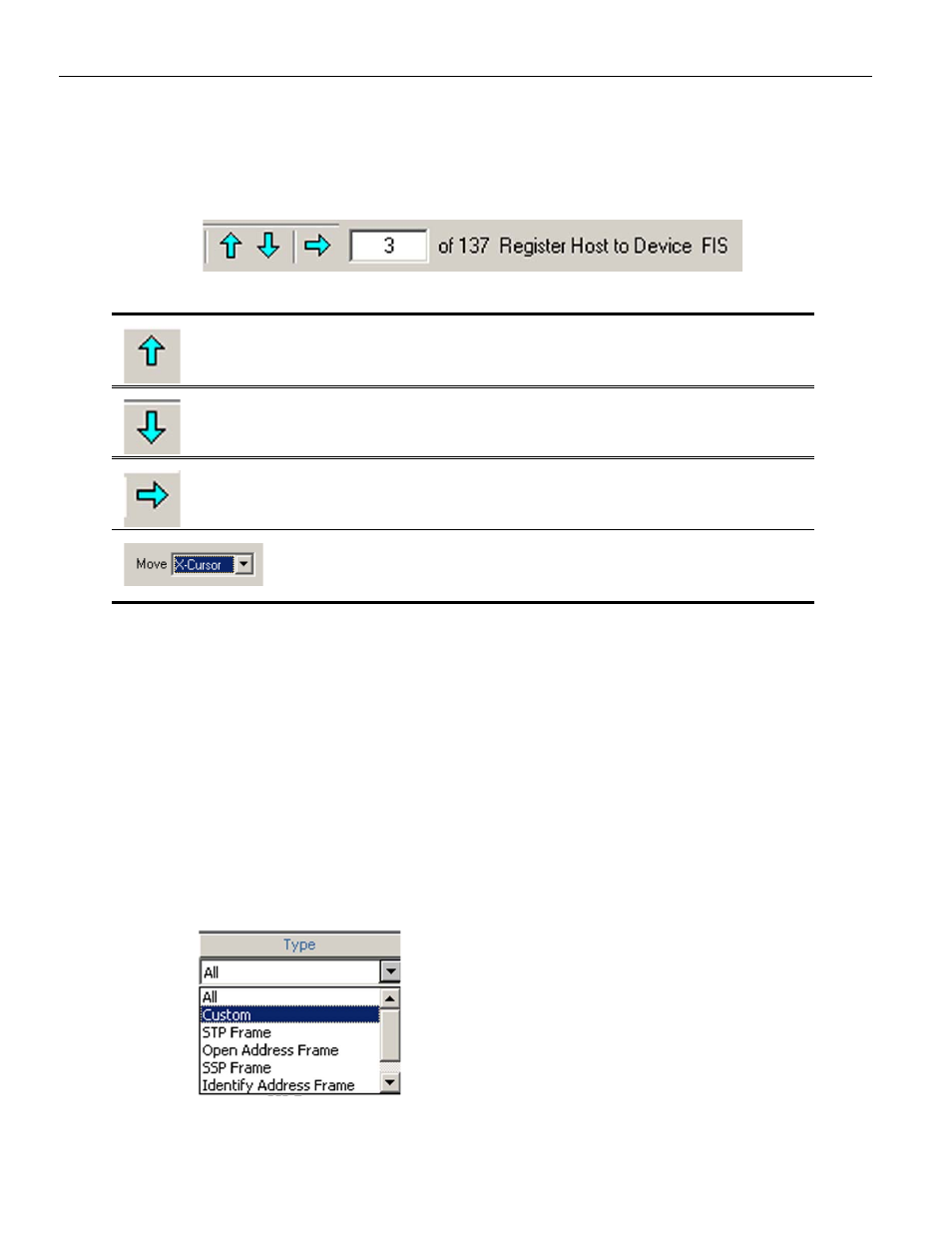

The Jump to Previous button goes to the previous instance of the selected type
in the Sample Viewer.
The Jump to Next button goes to the next instance of the selected type in the
Sample Viewer.
The Jump to Specific button goes to the instance specified as N of M items on
the Statistical Report toolbar.
The Move drop‐down list moves to the X‐Cursor, Y‐Cursor, or None.
