Teledyne LeCroy Packet View Toolbar
182 Sierra M124 SAS/SATA Protocol Analyzer User Manual

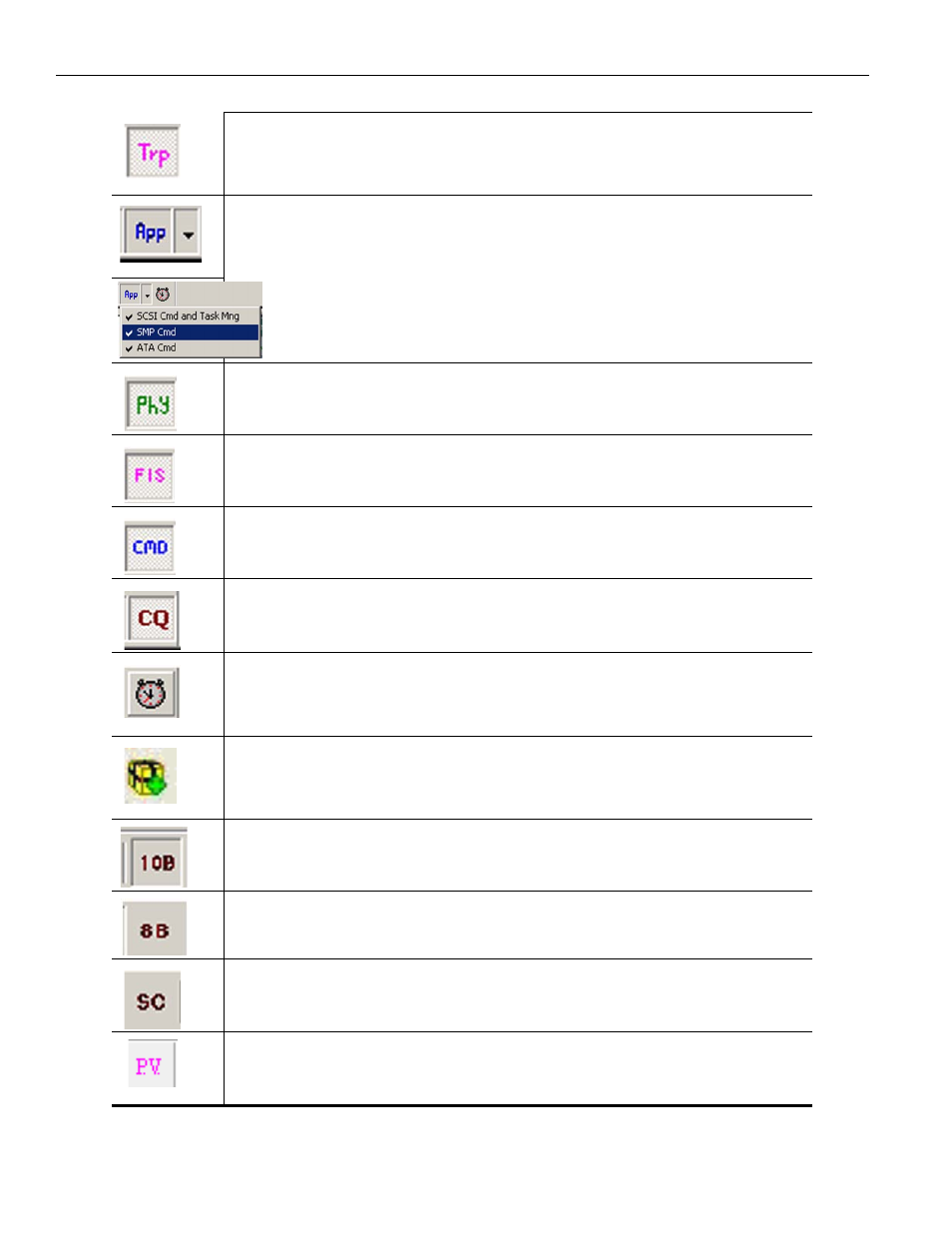

The Show/Hide Transport Packet button on the Layers Toolbar displays/hides
the Transport layer and below (SAS only).
The Show/Hide All Commands Packet button shows/hides the
Command layer and all layers below: SCSI Cmd and Task Mng, SMP
Cmd, and ATA Cmd (SAS only).
Click the down arrow on the Show/Hide All Commands Packet
button to choose command types to show/hide.
The Show/Hide Physical Packet button toggles the display of physical layer
packets (SATA only).
The Show/Hide FIS packet button toggles the display of FIS layer packets.
When “OFF”, the FIS layer and its links are hidden (SATA only).
The Show/Hide CMD packet button toggles the display of the CMD packets.
When “ON”, only the command layer displays (SATA only).
The Show/Hide Command Queue button displays queued commands. (SATA
only)
The Order/Reorder button toggles the time order of packets. (SATA only)
The Pack/Unpack Repeated Primitives toggles packing repeated primitives in
one port. (SAS only)
The 10B button displays the payload data as 10‐bit encoded data.
The 8B button displays the payload as 8‐bit scrambled or unscrambled data,
depending on the Scrambled setting.
The SC button selects scramble/unscramble for the 8‐bit payload data.
The PV button shows/hides the primitive value.
