Teledyne LeCroy Creating Global Rules
250 Sierra M124 SAS/SATA Protocol Analyzer User Manual
The Event Properties dialog box appears (see Figure 4.15 on page 239 ).
4. In the Type column of the Event Properties dialog, choose Primitive > SAS Primitive.
5. In the Type column in the middle of the dialog box, click Description if you want to
add a description of the event.
6. Click Direction to choose the direction of traffic to monitor for the selected event
(the default is From Initiator, which is what you want for this example).
7. Still in the middle column of the Event Properties dialog box, click Primitive to
display a drop‐down menu that lets you choose the type of primitive for which you
want to wait in this scenario. In this example, it is RRDY (Normal).

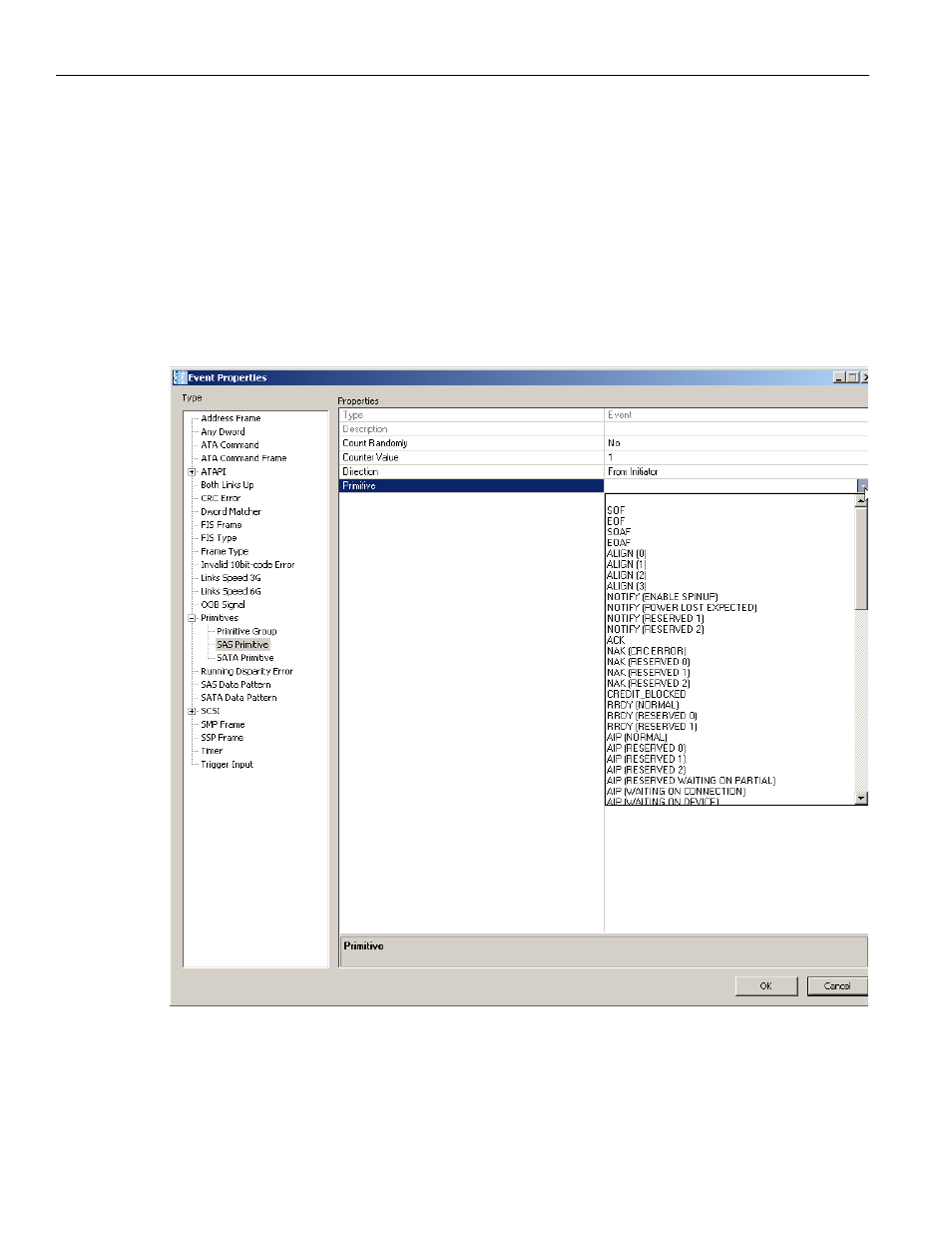

Figure 4.21: Example 1: Event Drop-Down List
8. Click OK to close the Event Properties dialog box.
