Sierra M124 SAS/SATA Protocol Analyzer User Manual 17
LEDs Teledyne LeCroy
 USB port for host connectivity
 Gigabit Ethernet port for network connectivity
 Power In (on back)

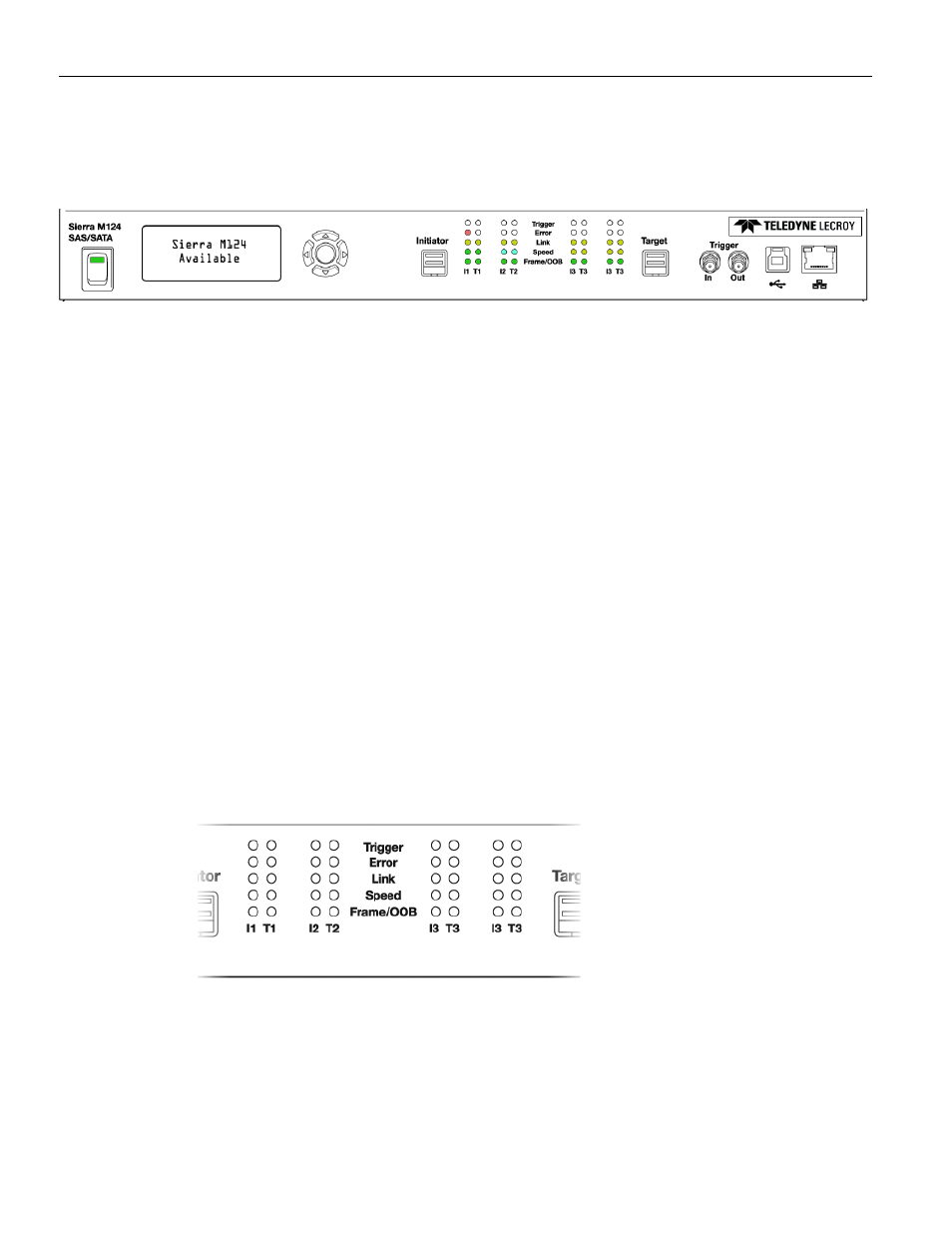

Figure 1.2: Front Panel
1.6 LEDs
Each link is supported by LEDs with the following functionality:
GreenThis LED is illuminated during the OOB (Out of Bound) sequence before the link is
established and after link is established it indicates traffic on the bus.
Orange This LED is illuminated as follows:
Speed Initiator Target
1.5G On On (Green)
3.0G On On (Green)
6.0G On On (Yellow)
12.0G On On (Blue)
Yellow This LED is illuminated when a link is established.
Red This LED illuminates when an error occurs.
Blue This LED is illuminated when a trigger occurs.
Figure 1.3: LEDs
1.6.1 Status and Configuration Display
The Analyzer front LCD display indicates the configuration and status of operations. For
example, during initialization, the LCD panel displays boot status messages.
