Sierra M124 SAS/SATA Protocol Analyzer User Manual 21
Expandability Teledyne LeCroy

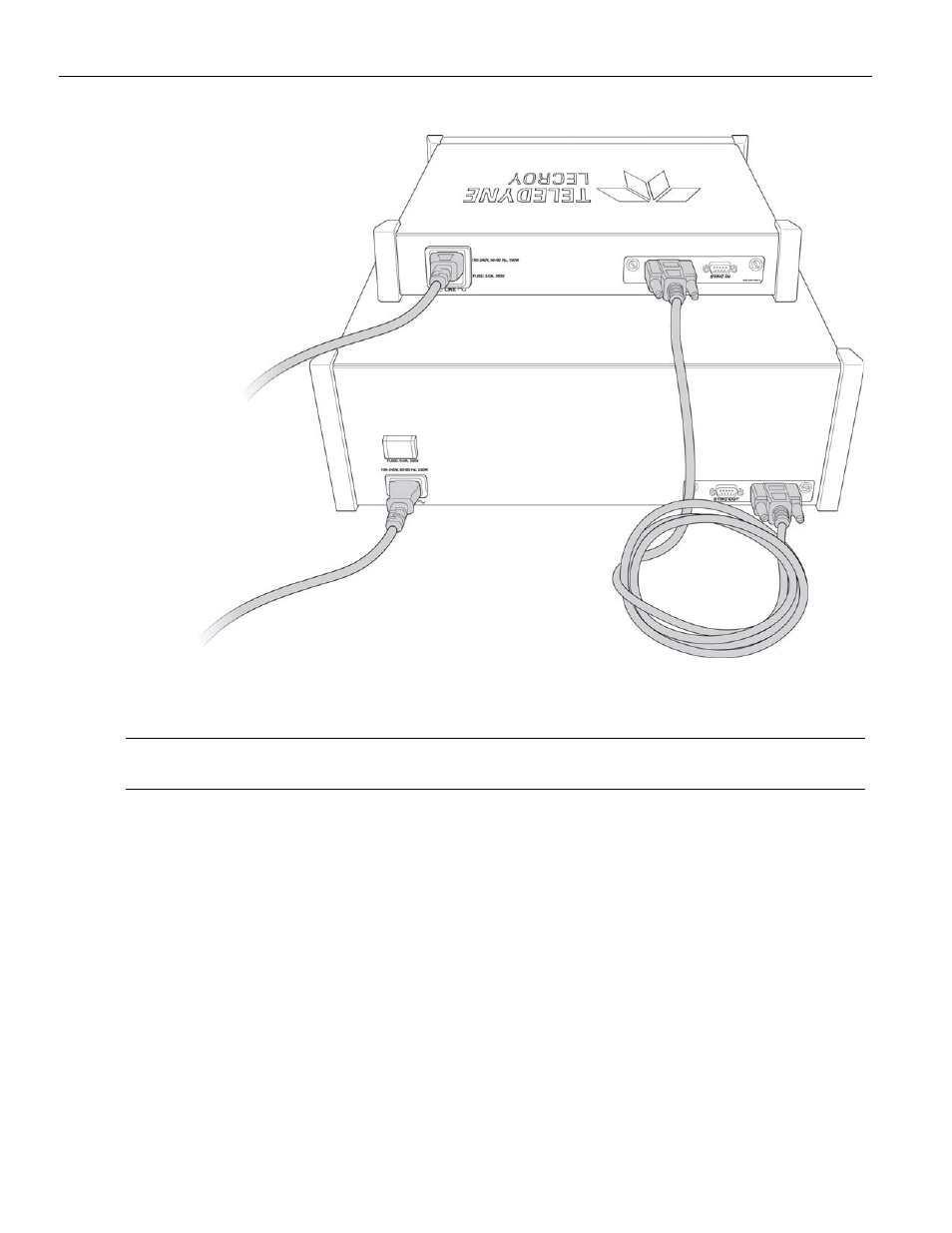

Figure 1.6: An Example of Connecting a Sierra M124 and a Summit T3-16
You can cascade up to eight Sierra Analyzers, if they all have a CATC SYNC expansion card.
Note: If the Sierra M 124 has a CATC SYNC Expansion Card, you can cascade with Sierra M6‐4, M6‐2
and M6‐1.
1.10.2 Select Device
After starting the software, click on Setup and select All Connected Devices (see
Figure 1.7 on page 22 ).
