Sierra M124 SAS/SATA Protocol Analyzer User Manual 255
Creating Global Rules Teledyne LeCroy
The Event Properties dialog box appears.
In this example, there is a parallel set of events, but each event is associated with its own
action. In a combined event, there is a parallel set of events sharing the same action.
4. Using the drop‐down menu, choose RRDY (Reserved 0) as the second event to
monitor.
5. Click OK to close the Event Properties dialog box.
6. In the Global Rules area, click the prompt to add an action to be triggered by the
RRDY (Reserved 0).

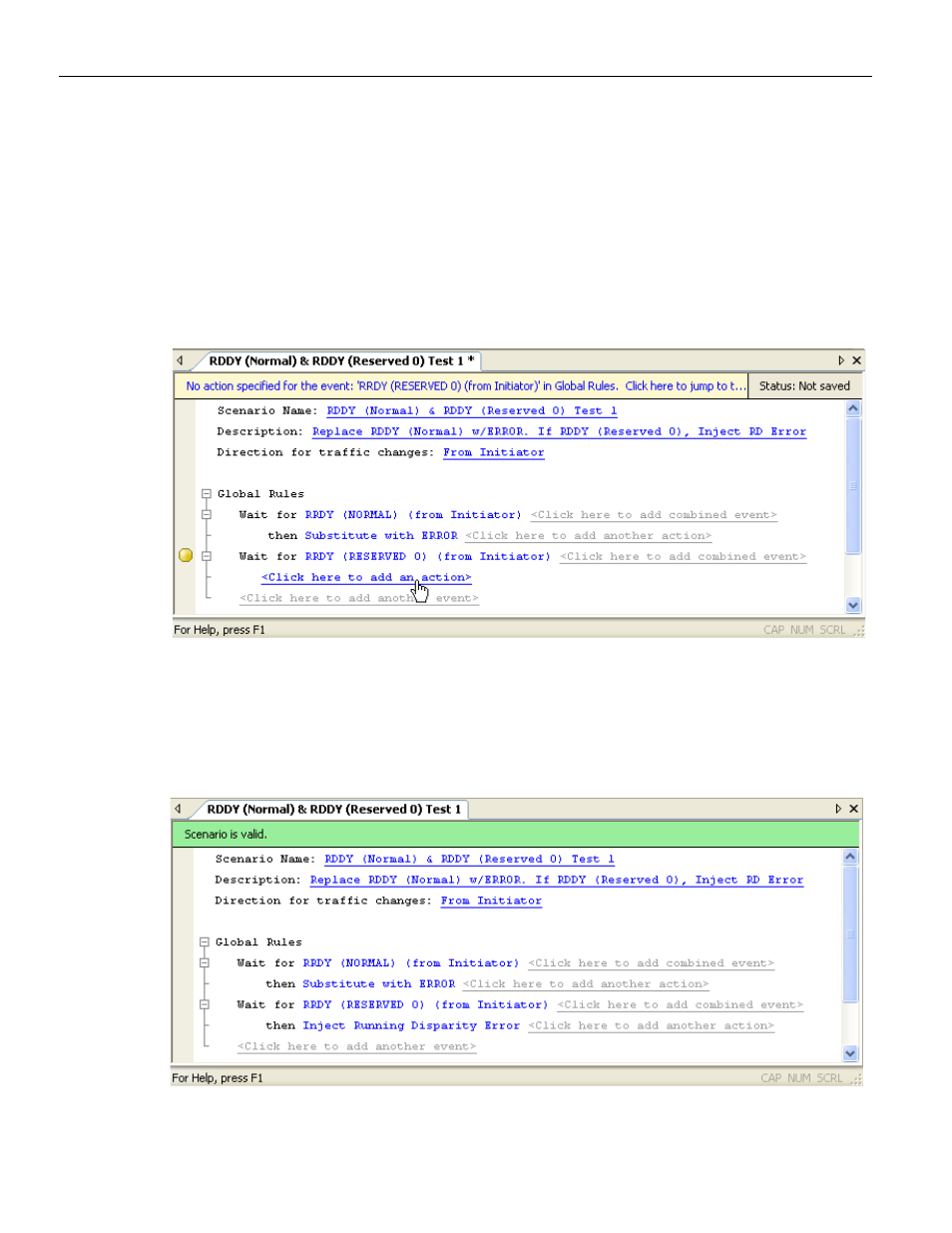

Figure 4.28: Example 4: Entering Second Action
The Action Properties dialog box appears.
7. Use it to choose Inject RD Error as the action triggered by RRDY (Reserved 0).
8. Click OK to close the Action Properties dialog box.
Figure 4.29: Example 4: Complete Scenario
9. In the File menu, select Save Scenario to save the scenario.
