Teledyne LeCroy Sierra Trainer Generation Language
360 Sierra M124 SAS/SATA Protocol Analyzer User Manual
The dialog lists the Properties and their Values.
5.11.15 Events and Event Properties
Generation rules are associations between events and actions. These associations
determine how trace recording occurs. The supported events are:
 Primitives: Primitive Categories or Primitive
 Frames: Open Address Frames, Identify Address Frames,
Zone Broadcast Address Frames, SSP Frames, or SMP Frames
 SCSI Commands
 SCSI Status
 SATA FIS: Register Host to Device, Register Device to Host, Set Device Bits, DMA
Activate, DMA Setup, BIST Activate, PIO Setup, Data, Route, or Vend FIS
 SSP Frame Header: DATA, XFER_RDY, COMMAND, RESPONSE, TASK, VENDOR, or
RESERVED
 SSP Information Unit: Command IU, Task IU, XFER_RDY IU, or Response IU
 SMP Request/Response: RPT_GENERAL, RPT_MFG_INFO, DISCOVER,
RPT_PHY_ERR_LOG, RPT_PHY_SATA, RPT_RT_INFO, CONFIG_RT_INFO,
PHY_CONTROL, PHY_TEST_FUNCTION, CONFIG_PHY_ZONE,
CONFIG_ZONE_PERM, RPT_ZONE_PERM, or RPT_ZONE_RT_TBL
 ATA Commands
 ATAPI Commands
 SATA Data Pattern
 SAS Data Pattern
 Transmitter Trainer IU Pattern
Data Pattern Mask and Match
If you select Data Pattern as the Event, you can set Data Pattern event properties in the
Event Properties dialog.

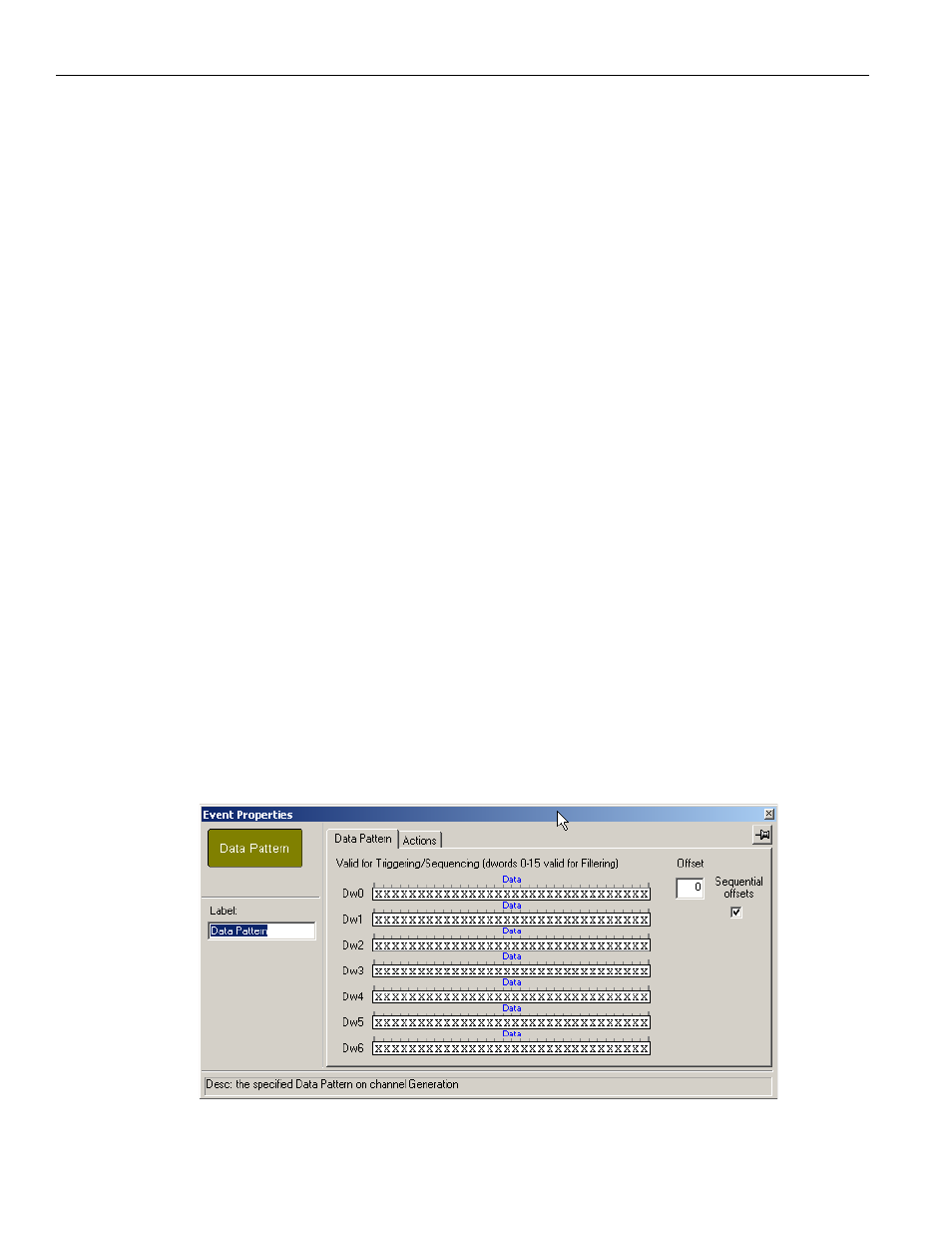

Figure 5.24: Event Properties for Data Pattern Event
