Sierra M124 SAS/SATA Protocol Analyzer User Manual 109
SAS/SATA Software Menus and Toolbars Teledyne LeCroy

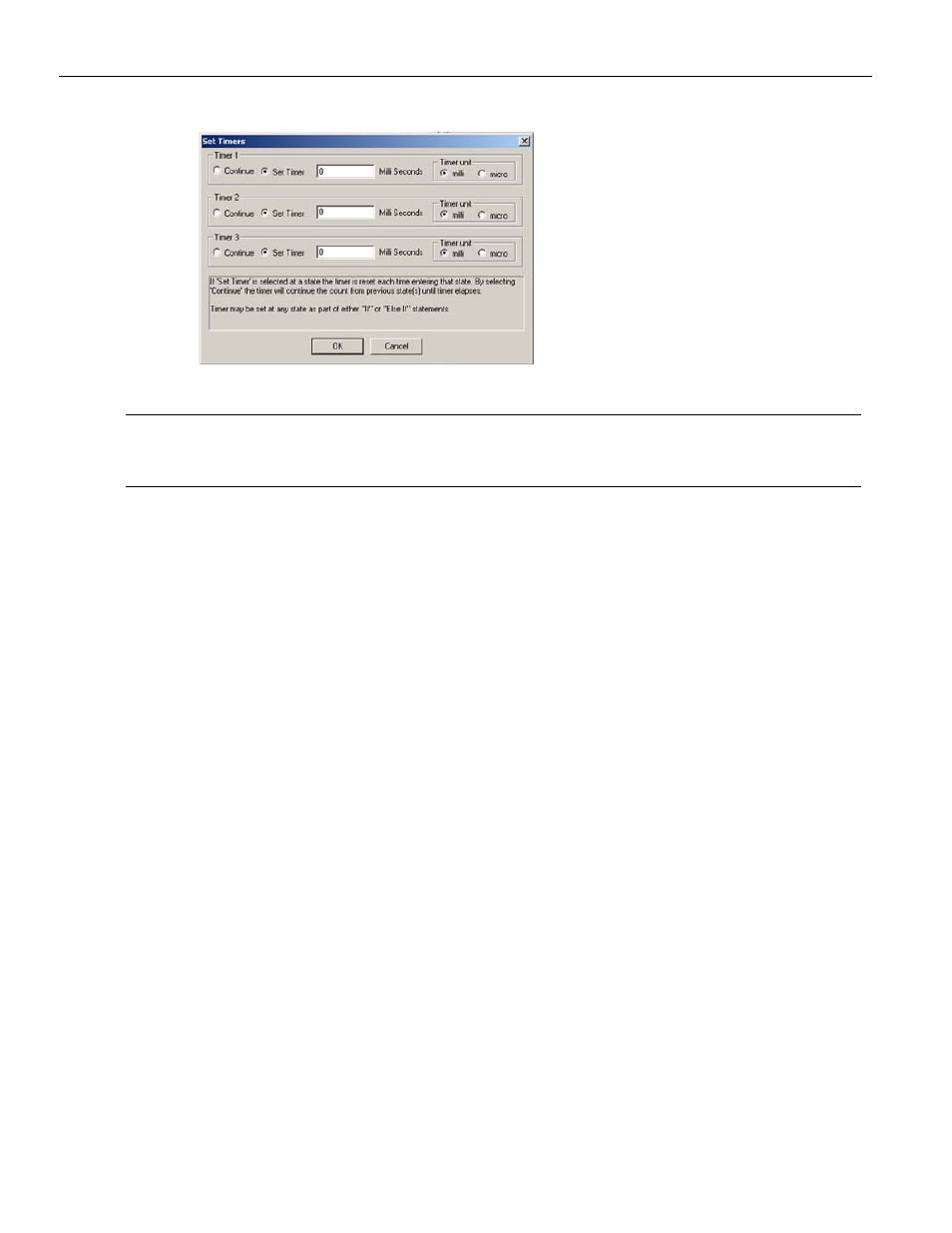

Figure 2.81: Set Timers Dialog
Note:
Three timers are available. You have to set and start each timer in order to continue the next
timer. For example, you have to start Timer 1, continue it, then set Timer 2 in order to continue
it. It will not allow you to continue Timer 2 until you first set it.
2.2.22 Timeout
In the Timeout Pattern dialog (see Figure 2.82 on page 110 ) you can do the following:
 Set a Timeout.
 Select a Pattern for the Start Event. (Start Event resets the timer.)
 Select a Pattern for the End Event.
 Enter the Timeout Value in milliseconds or microseconds.
 Select a Trigger Mode:
 If End Event occurs before timer expires.
 If timer expires before End Event occurs.
