Sierra M124 SAS/SATA Protocol Analyzer User Manual 37
Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars Teledyne LeCroy
1.19.6 Navigation
The Navigation menu has the following options to navigate through the application (see
Figure 1.22 on page 37 ).

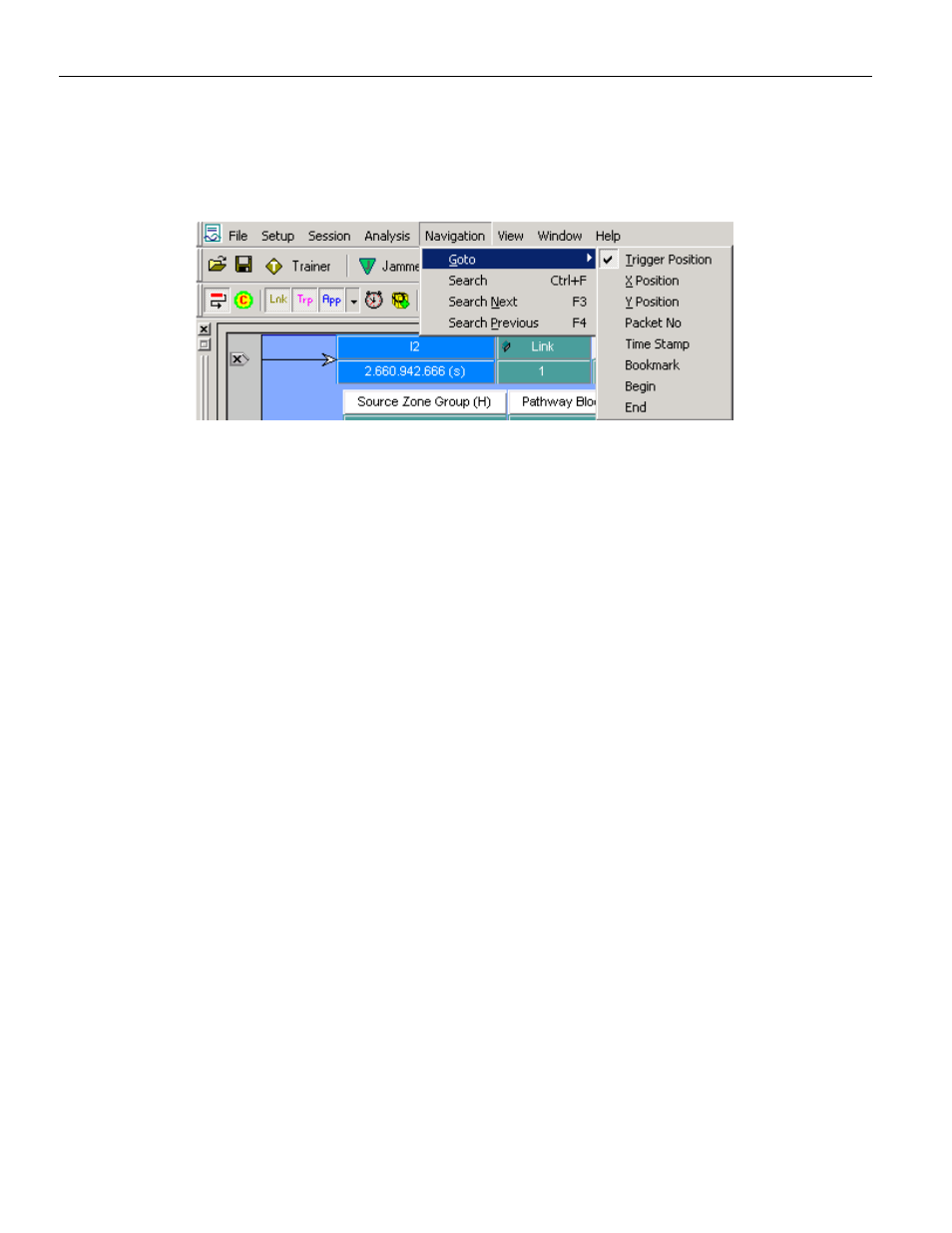

Figure 1.22: Navigation Menu Option
 Goto
 Trigger Position
 X Position
 Y Position
 Packet No
 Time Stamp
 Bookmark
 Begin
 End
 Search
 Search Next
 Search Previous
1.19.7 View
The View menu options allows the user to zoom in and out, enable/disable filtering and
toolbars among other actions. It has the following options (see
Figure 1.23 on page 38 ).
