3.3.13 Bus Utilization View
The Bus Utilization View displays information on pending IO. To display the
Bus Utilization View of the current capture, 
click Analysis > Bus Utilization View or click the button on the tool bar.

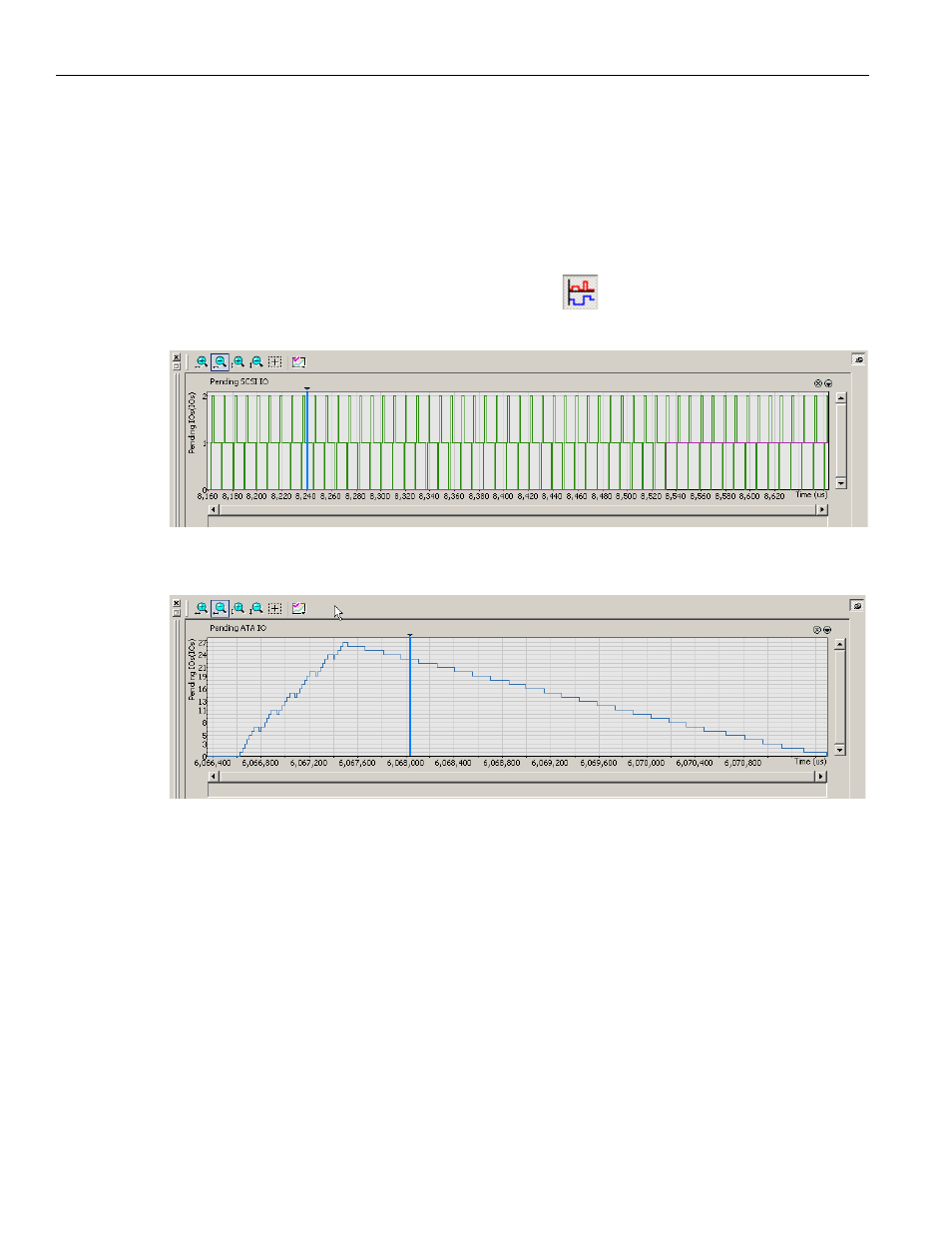

Figure 3.63: SAS: Bus Utilization View for Pending SCSI IO
Figure 3.64: SATA: Bus Utilization View for Pending ATA IO
Available Bus Utilization Views are:
 Pending SCSI IO (for SAS)
 Pending ATA IO (for SATA)
Hovering the mouse over the graph heading displays the graph legend:
 Go to ATA/SCSI Cmd. #: Jump to command.
 Synchronize with Trace View: Synchronize all open views to that location in the
trace.
 Fit to Graph Area: Zoom to fit.
 Hide: Do not display the graph.
To synchronize all open views to that location in the trace, double‐click the graph.
