EVS MULTICAM - User’s Manual
EVS Broadcast Equipment SA – Dec 2006
Version 8.03
81

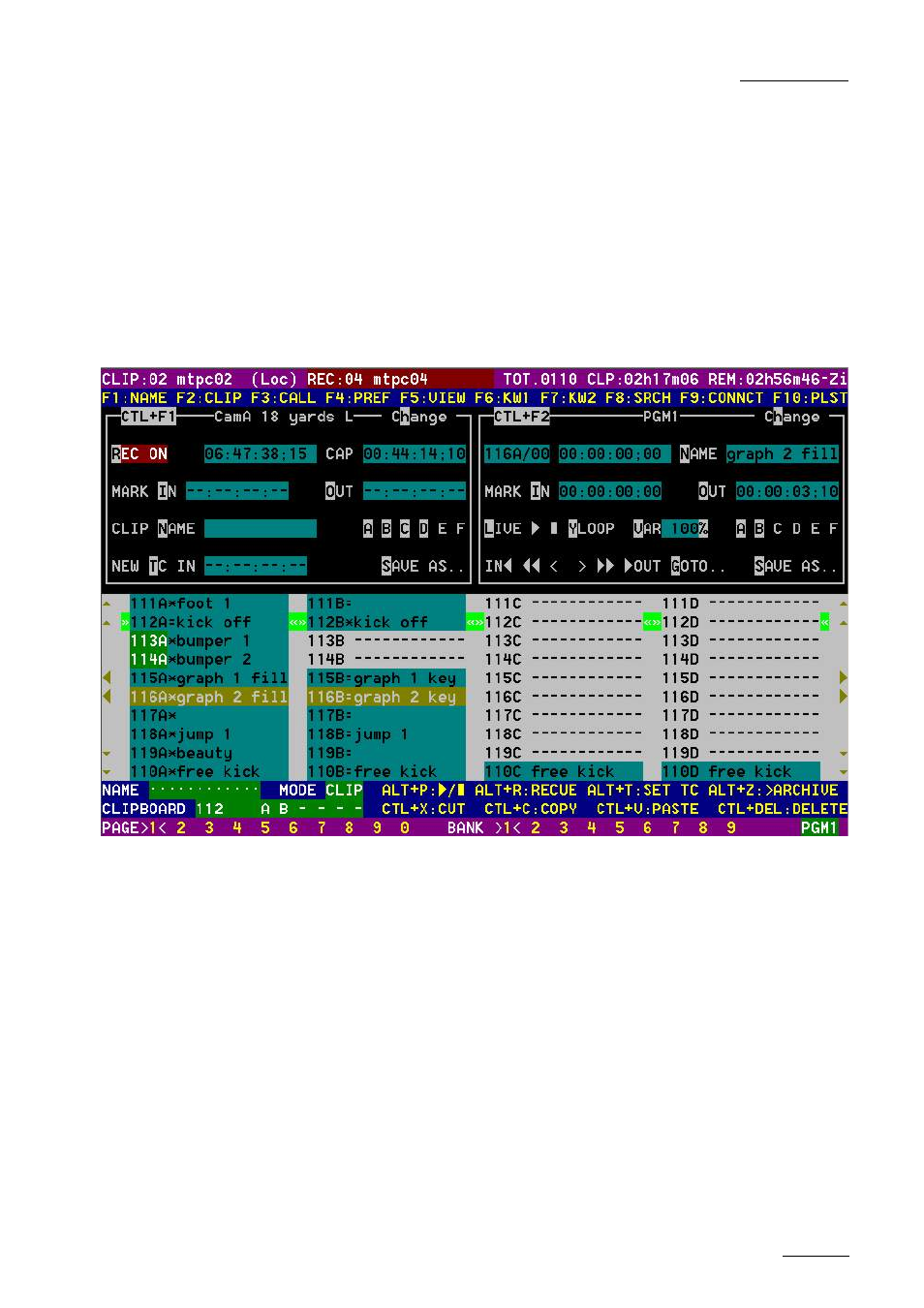

Using the VDR Panel.
The VGA VDR Panel is accessed from any VGA screen by pressing
SHIFT+F9 on the keyboard. The lower section of the VDR Panel is
similar to the clip screen, with the same functions. The upper section of
the VDR Panel features 2 windows that can each take control of one
channel of the server.
Pressing SHIFT+F9 in the VDR Panel returns the VGA to the Clip Screen
mode.
.
VDR PANEL – LOWER SECTION
The browsing of clips, the viewing modes (normal or extended), the way
clips are recalled, moved and copied, etc. in the VDR Panel is strictly the
same as in the Clip Screen. The CONNECT window is called with F9, and
allows to connect to other servers on the network.
VDR PANEL – UPPER SECTION
The two windows of the upper section can be assigned to a different
channel of the server. When entering the VDR Panel for the first time
after starting the application, the control of both windows is disabled.
Press CTRL+F1 to gain control of the left window, or CTRL+F2 to gain
control on the right window. The frame around the corresponding window
becomes green. Note that only one window can be active at a time.
