EVS MULTICAM - User’s Manual
EVS Broadcast Equipment SA – Dec 2006
Version 8.03
77
ƒ Number of available clips in the playlist (unavailable network clips
are not taken into account). Ex : 98 clips
ƒ Total playback duration with available clips. Ex : 00:04:34:12
ƒ Aux Clip ID and name of the audio auxiliary clip.

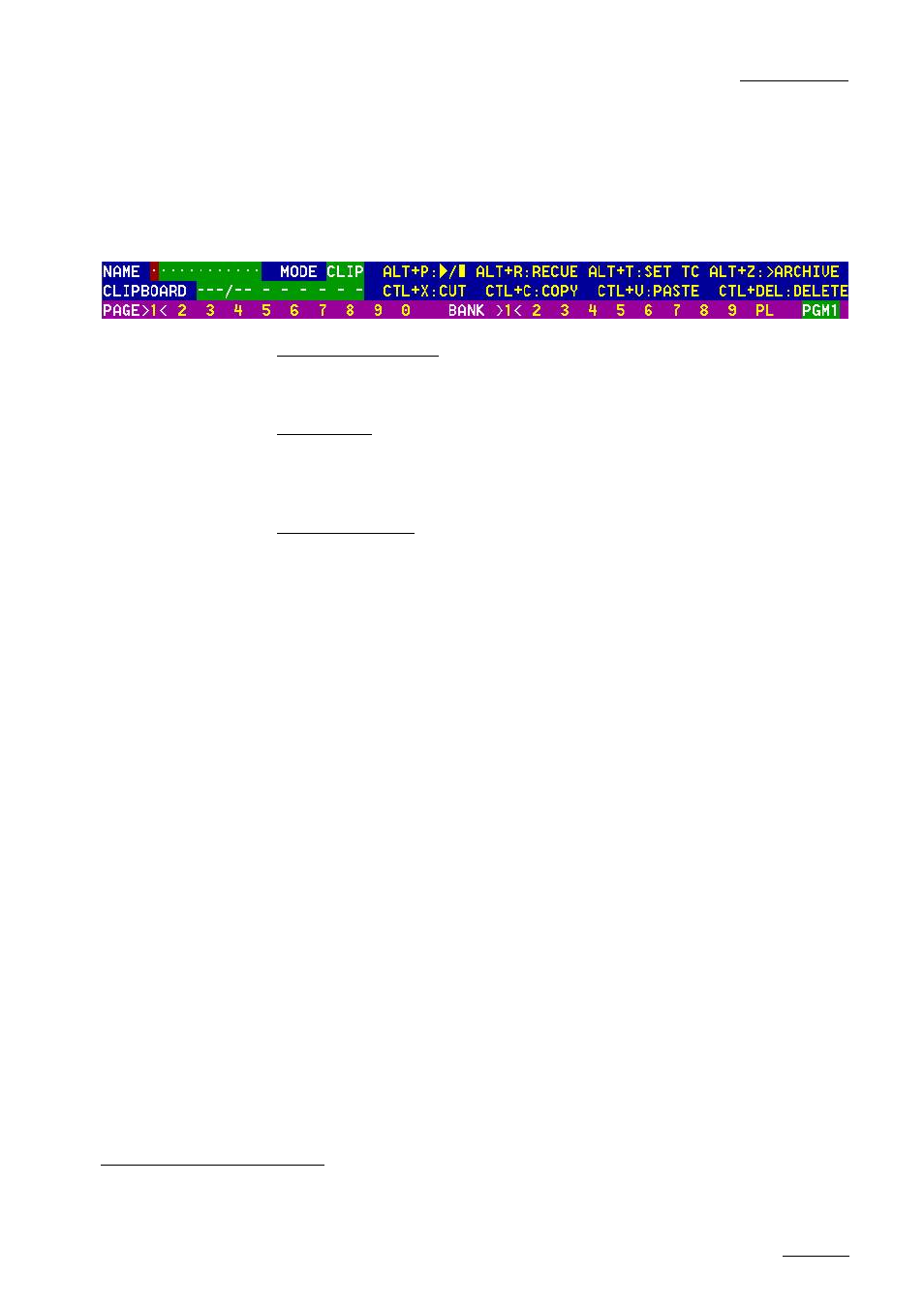

THE CLIP MANAGEMENT AREA
NAME capture field: this is the only capture area of the screen. It is
used to enter the name to assign to a clip/playlist, or to enter the ID of a
clip to recall.
MODE field: indicates if the clip screen is currently in CLIP or CAM
mode. In CLIP mode, actions on a clip will use all available cameras for
this clip. In CAM mode, actions on a clip will only use the selected
camera for this clip. Default value is CAM mode.
Clip control area: is dedicated to play-out control.
ƒ
ALT+P:►/■ : play at 100% speed except for super motion clips
which are played back at 33% speed; and pause playback on the
current picture.
ƒ ALT+R:RECUE: jump to the SHORT IN point.
ƒ ALT+T : SET TC. Restripes the time code of the current clip.
1. recall the clip by moving the cursor on the desired clip and
pressing ENTER, or by clicking on it with the stylus;
2. press ALT + T on the keyboard to call the SET TC function
3. type in the new time code for the SHORT IN point of the clip.
In 59.94Hz modes (NTSC), the operator can also select
between DROP FRAME and NON DROP FRAME modes by
pressing the space bar.
4. Press F2 to select CAM or CLIP mode. In CAM mode, only the
timecode of the camera angle loaded on the primary channel
will be changed. In CLIP mode, the time code of all camera
angles of the clip will be changed.
5. Press ENTER to confirm, or ESC to cancel.
6. The entire clip is updated according to the new time code
value so that the time code remains continuous inside the
whole clip.
ƒ ALT+Z:>ARCHIVE : allows the operator to flag a clip to place it in
the archive queue of the Xfile
1 defined in the setup menu (p.3.3
F1) or in the Setup Screen. When a clip is flagged for archiving,
but has not yet been archived, its ID will be BLINKING GREEN in
the Clip Screen. It is PERMANENTLY highlighted GREEN when
the archiving of the clip is completed. Depending on the mode
selected with the F2 key (CLIP/CAM), the >ARCHIVE flag is
assigned only to the camera angle of the clip selected with the
green cursor (CAM mode), or to all camera angles of the clip
(CLIP mode).
1 The EVS Xfile is a 2U device with 2 removable hard drives, that can be connected to the XNet SDTI network. Clips can be
archived to/restored from the removable medias.
