EVS MULTICAM - User’s Manual Version 8.03
EVS Broadcast Equipment SA – Dec 2006
6
1. Software
selection
The EVS software is used for configuration and maintenance operations.
It is also used to select which configuration to run, since EVS disk
recorders have the ability to run various standard and customized
configurations. (LSM 1 CAM, LSM 2 CAM, LSM 3 CAM, LSM 4CAM,
TRIPLE LSM, SLSM, SLSM+1CAM, etc.)
When turning on the EVS mainframe, the first step is the PC boot
sequence, and then the EVS software is started. If a default application
has been previously selected, this application will start automatically
after a few seconds if no key is hit. If a default application hasn't been
defined or if the space bar is hit, the system will remain in the EVS main
menu and wait for the operator's next command.

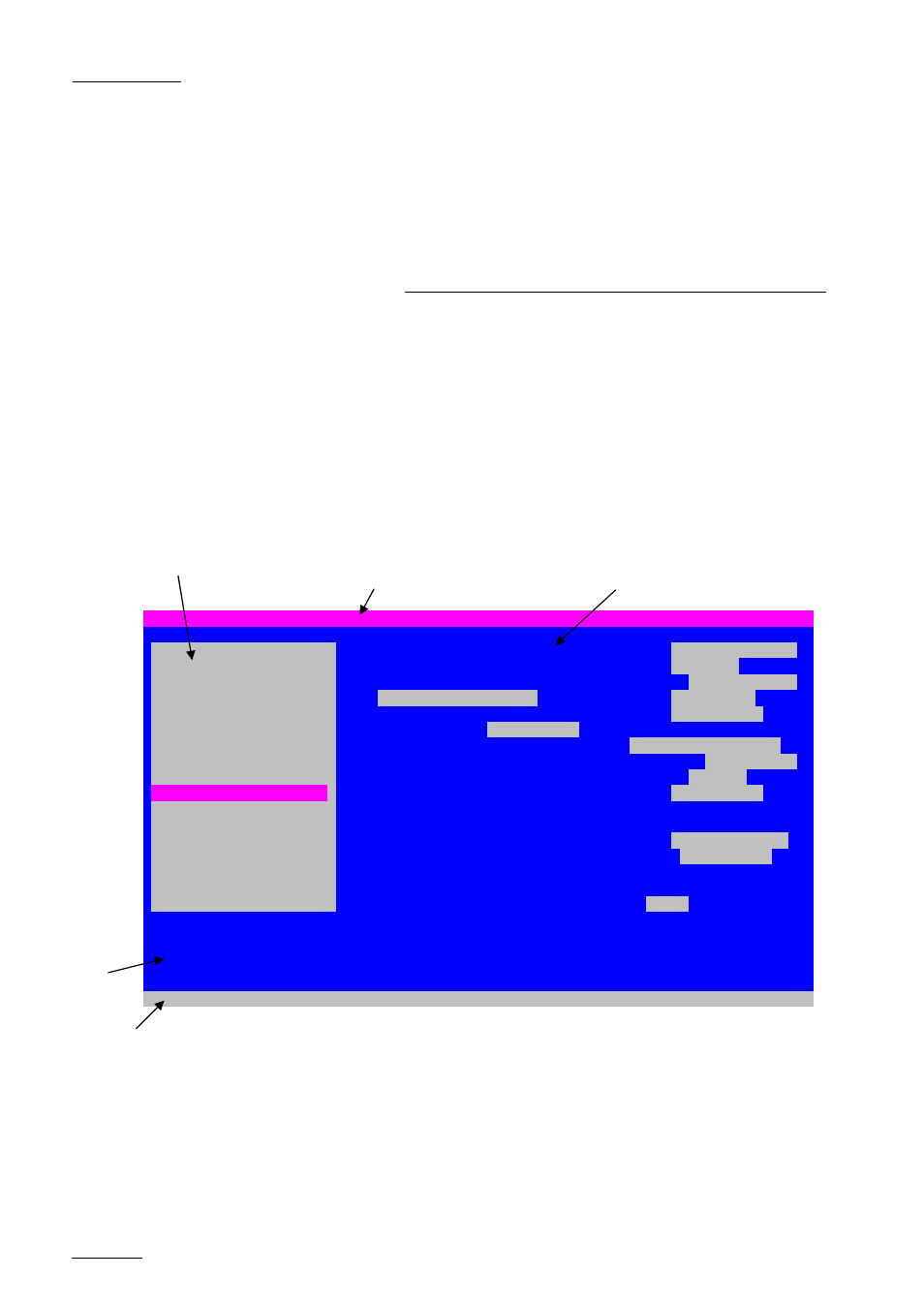

EVS 00.14.11 May 24,2005 16:36:35 Z z
╔ Applications List════╗ ┌ Hardware Revisions ──────┐┌ Network ───────────────┐
║
00 LSM Custom ▲ ║ │8 HCTX Rev A2 ││SDTI OFF │
║ 01 LSM 1CAM (CUT) ▒ ║ │7 Audio Codec Analog RevA2││Net Name EVS XT 1 │
║ 02 LSM 1CAM (FX) ▒ ║ │ Audio In/Out ││Net Number 1 │
║ 03 LSM 2CAM (CUT) ▒ ║ │ 16 XLR A ││Type Server │
║ 04 LSM 2CAM (FX) ▒ ║ │6 ││DB Size 16000 clips │
║ 05 LSM 3CAM (CUT) ▒ ║ │ #Video Ch 6 │├ Video & Audio ─────────┤
║ 06 LSM 3CAM (FX) ▒ ║ │5 COHX HD ││Std 1080i 59.94 NTSC │
║ 07 Triple LSM ) ▒ ║ │4 COHX HD ││Aspect Ratio 4:3 L Box │
║ 08 LSM 4CAM (CUT) ■ ║ │3 ││SD Mon Out Mon │
║ 09 LSM 4CAM (FX) ▒ ║ │2 COHX HD Genlock ││Audio ON │
║ 10 Super LSM (CUT) ▒ ║ │1 MTPC Rev A1/R2 ││ │
║ 11 Super LSM (FX) ▒ ║ ├ Software Releases ───────┤├ Ref & Phase ───────────┤
║ 12 Super LSM+1CAM ▒ ║ │LSM:07.00.37 ││Ref Type SD Black Burst │
║ 13 Super LSM+2CAM ▒ ║ │HCT: 27.56, 23/05/05 ││Sync Mode Studio Mode │
║ ▒ ║ │ ││Genlock Ok │
║ ▒ ║ │ ││TC in 16:36:35;27 NTSC │
║ ▼ ║ │ ││Phase: 0 half pixel │
╚══════════════════════╝ └──────────────────────────┘└────────────────────────┘
┌ Messages ───────────────────────────────────────────────────────────────────┐
│ │
│ │
└ ┘
Maintenance Parameters ↑↓ Select Def App Quit
Please refer to the Technical Reference manual for complete information
regarding the EVS Menu.
Title bar
Application
window
Message
window
Task bar
Configuration
window
