LED COLORS
A selected key lights red.
When a key lights green, it means a value in relation with this key exists.
For example: F1 to F0 keys
ƒ Green light means a clip has been stored in relation with the key.
→ Flashing means a clip is being created.
ƒ Red light means the clip associated to the key is playing or is
ready to play.
→ Flashing means a clip is being deleted (in network mode)

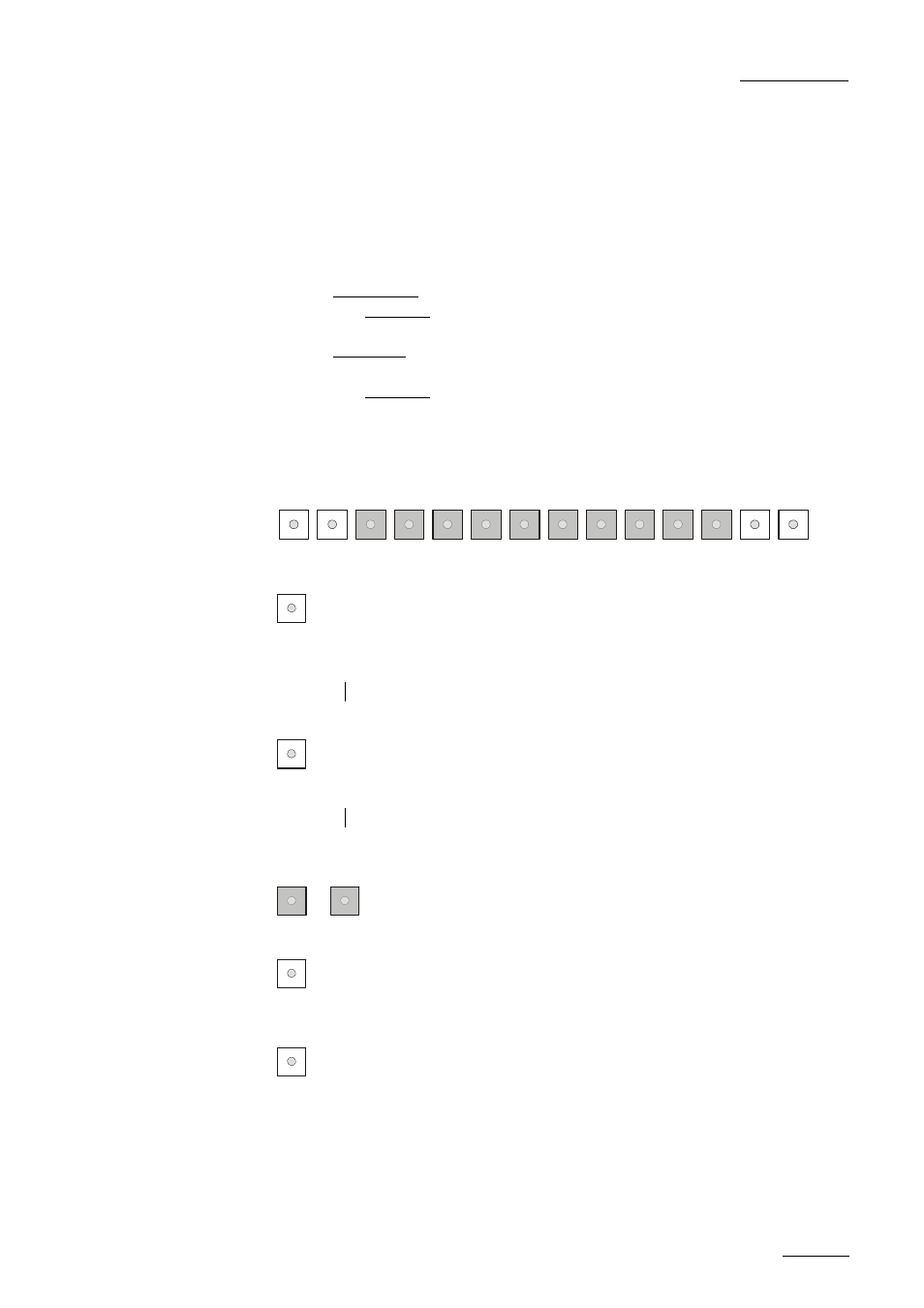

F-KEYS & SMALL BUTTONS
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
MENU SHIFT CLEAR ENTER
MENU
provides access to the Secondary Menu. Also used as
CANCEL in some messages when confirmation is required.
Note: SHIFT + MENU returns to MAIN Menu
SHIFT
enables use of the secondary key functions.
Note: This key remains active even if released, until another key has been hit.
F1 F10
-
stores / recalls Clips, recall Playlists and enter Timecode
information.
CLEAR
is a multi-purpose key used to clear CLIPS or PLAYLISTS,
and to clear IN/OUT points
ENTER
is used to APPEND clips at the end of the current
PLAYLIST, and to validate other options and messages.
