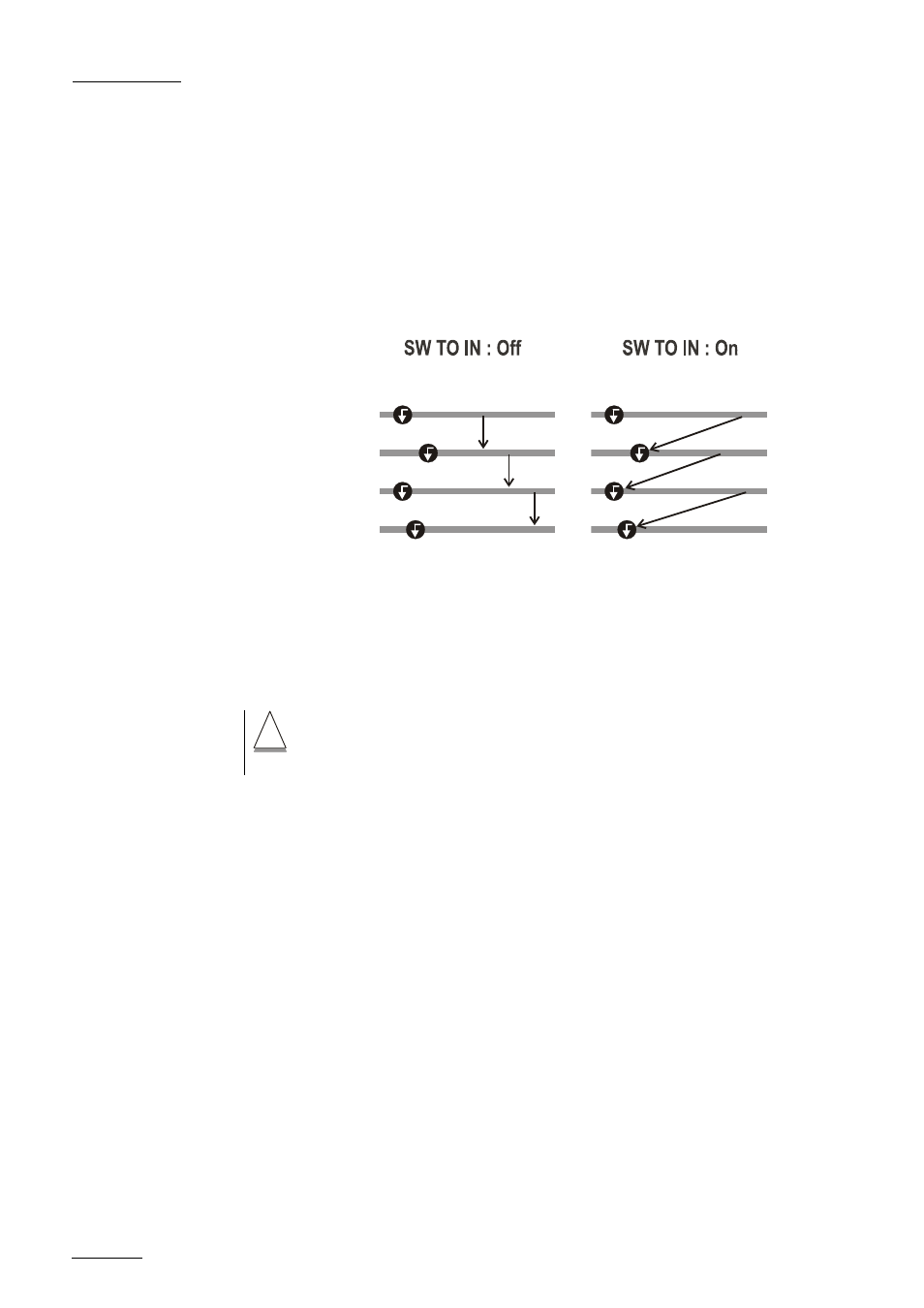

SYNCHRONISATION MODE (SWITCH TO IN)
If OFF: a request for camera change will produce a jump at the same time
code on the requested camera. This mode allows synchronous change of
camera angle.
If ON, a request for a camera change (by pressing CAM A, CAM B CAM C
or CAM D in the MULTICAM menu) will lead to a jump to a predefined
CUE IN point.
Cue In1
Clip B
Clip A
Clip C
Clip D
Cue In2
Cue In3
Cue In4
Cue In1
Cue In2
Cue In3
Cue In4
If a CUE IN point has not been previously defined, the MULTICAM acts as
in SW to IN OFF mode (even if SW to IN ON is shown) because the
system has no reference to jump to.
DEFINITION OF CONTROLLED AND PRIMARY CHANNELS
!
Important note: The notions of PRIMARY and CONTROLLED channels are very
important and will be constantly referred to in this manual.
Controlled Channel: A channel is “controlled” when the operator can
control it with the jog dial. In this case, the words “FULL CTRL” are
present on the top of the OSD of the monitoring output of that channel.
Primary Channel: The primary channel is the first controlled channel. It
is identified by stars around its name on the OSD of the monitoring output
and on the LCD display of the remote panel (ex : *PGM1*).
Examples :
- In 3PGM mode, if the operator controls PGM2 and PGM3, the primary
channel is PGM2 ;
- In PGM+PRV mode with PRV CTRL OFF, the primary channel is PGM ;
- In PGM+PRV mode with PRV CTRL ON, the primary channel is PRV.
